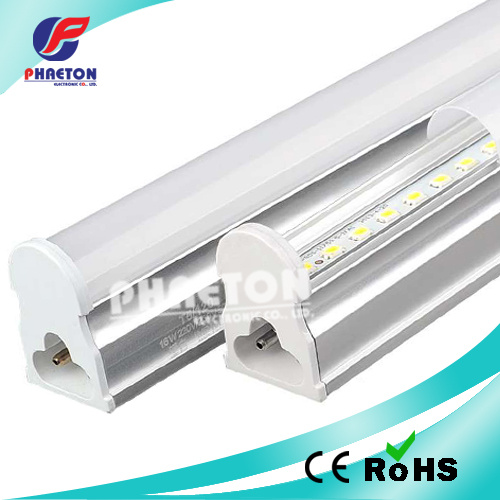

| Prod Model: |
T5 LED tube with fixture |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Temperature(CCT): |
3000k-6800k |
| Working Temperature(C): |
-20 - 40 |
| LED Light Source: |
SMD 2835 |
| Lamp Luminous Efficiency(Lm/W): |
95 |
| CRI (Ra>): |
70 |
| Brand Name: |
OEM |
| Lamp Power(W): |
18W |
| Tube Type: |
T5 |
| Color Temperature: |
Nature White |
| Length: |
1.2m |
| Shape: |
Straight |
| Shade Material: |
Aluminum Alloy |
| Lamp Holder/Base: |
G13 |
| LED Type: |
SMD 2835 |
| Shell Type: |
Frosted |
| Lifespan: |
≥50000H |
| Warranty: |
2 Years |
| Certification: |
RoHS |
| Input Voltage: |
85-265V |
| LED Chips: |
Epistar |
| Power: |
18W |
Product Description
Advantages of T8 led tube light
high luminous efficiency: SMD2835
T8 led tube light: 2ft~8ft
Optimum light uniformity and high color homogeneity
Extremely robust with aluminum heat sink and polycarbonate cover.
led tube light: 50000hrs life
Overpower, short and open circuit protected.
NO noise, NO flicker, NO UV and IR.
| Item | Symbol | L=1200mm/4ft |
| Rated Power | W | 18W |
| LED chip | | SMD | 2835 |
| Luminous Flux | Clear | LM | Typ.1800 |
| Milky | LM | Typ.1500 |
| Luminous Efficacy | LM/W | typ. 90-95lm/w |
| Power factor | PF | PF:0.95 |
| Input voltage | V | AC85-265V |
| Working Voltage | V | Constant DC 36-40V |
| Color Temperature | K | WW:2500-4000K NW:4000-5000K PW:5000K-6000K CW:6000K-7000K |
| Color Index (Ra) | Ra | Ra>72-75 |
| Diameter | mm | D shape:26mm |
| Rated Life | Hours | 30000-50000hours |
| Working Temperature | ºC | -30ºC-50ºC |
| Packing | Carton | 25pcs/carton |
Featuresnstallation methodLight source:ultra-bright white 2835 SMD LED.
Working voltage AC85-265V.
Instant response,no strobe light wave.
High efficiency,low power consumption.
Long life span with high stability and advanced heat dissipation technology.
Independent of the structure and design patents,compact structure,beautiful appearance.
Wide selection of color temperature:3000~6800K.
PrecautionsInstallation of lighting, please read these instructions carefully;
Lighting installation, depending on the connection and installation testing and certification provider;
Lights should always pay attention to the installation or replacement;
Before using the product in accordance with local voltage requirements, please check the product;
Entirely by the manufacturer or service agent or a similar qualified person replaced in order to avoid danger
FAQ: Q1:Are you a trading company or manufacturer?We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items Q2: why will you choice us :more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .Q3:Can we have our logo or company name to be printed on your products or the package? We offer OEM , ODM . our designer can make special design for you .Q4: Is the MOQ fixed? The MOQ is flexible and we accept small order as trial order.Q5:Can I have a visit to you before the order?Sure,welcome to visit our company ..our company is only one hour by train from shanghai
Established in 1996, Phaeton Electronic Co., Ltd. is specialized in manufacturing all kinds of. Audio/video cables, HDMI cable. Power cables, electronic connectors. Plug adaptor, LED lighting, CATV products et. Our products were exported to Europe, American, Middle East, Africa. Steady quality and best prices, we have built up high reputation among customers in these area, and some of them become our long-term customers finally.
Our company according the ISO9001: 2000 international quality management system certification. Quality products, prompt delivery and low cost will be guaranteed. OEM and ODM orders are welcome.
High speed, Superior quality, Good service is our development guideline. We are eager to cooperate with all the old and new customers to create more good future!
