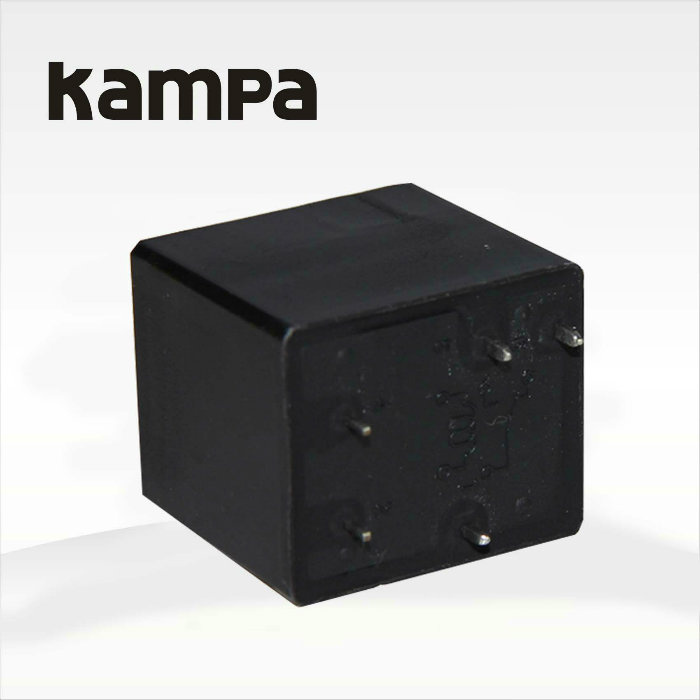

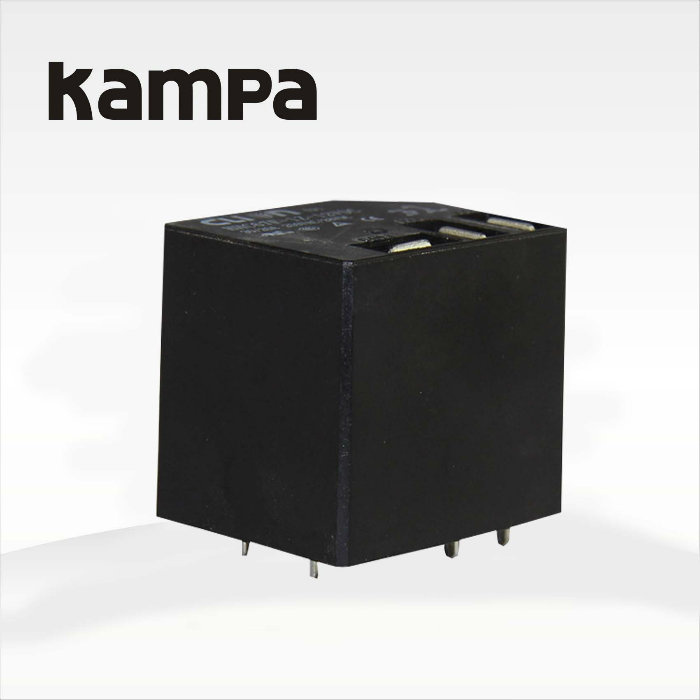

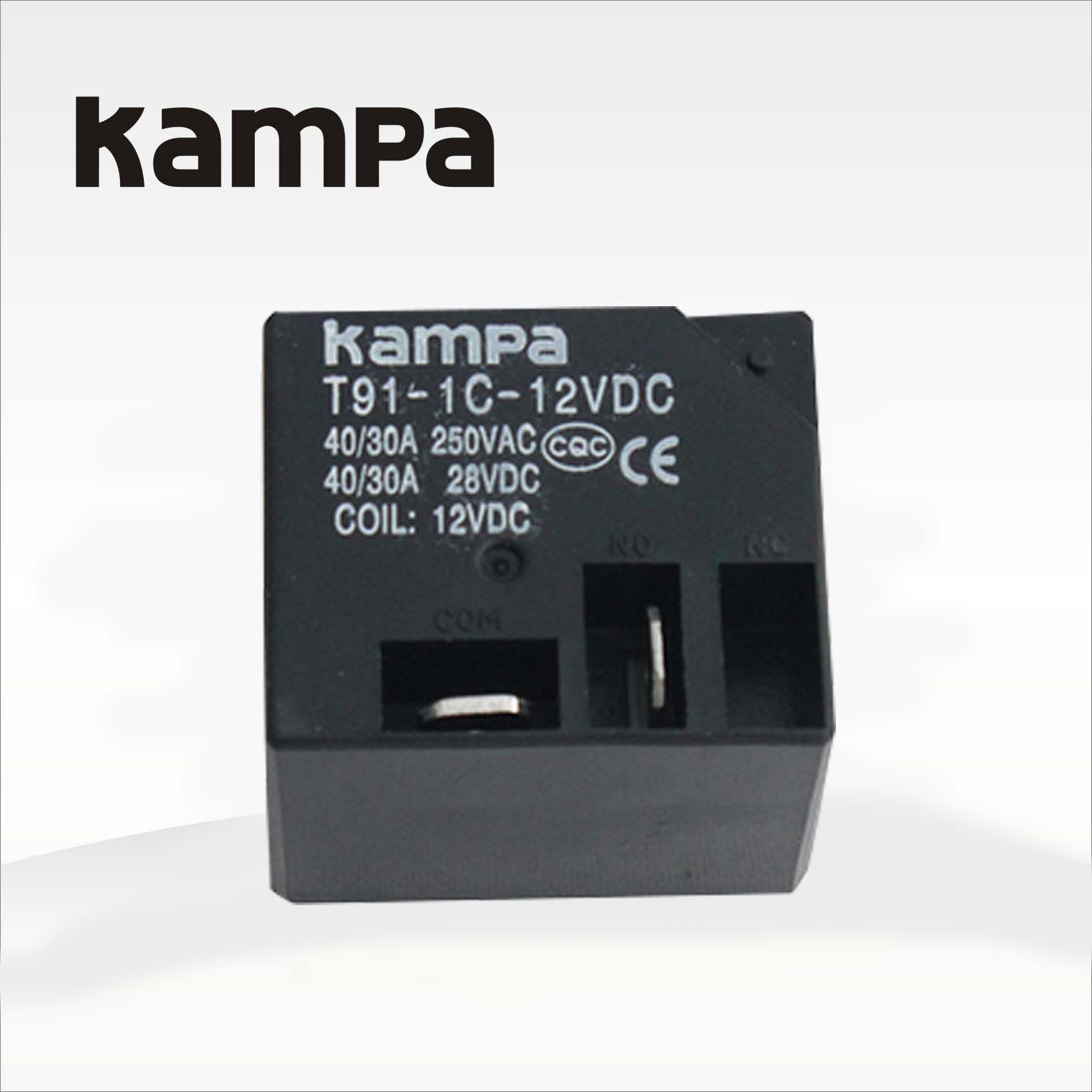

T91 30A 12V 5 Pins 250V Mini PCB Electromagnetic Relay

Name: T91 30A 12V 5 Pins 250V Mini PCB Electromagnetic Relay
Brand: all-electronics-online.com
SKU: 818254995
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 0.385/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T91
Contact Type:	1z,1h,1d
Contact Overload:	40A.30A 240VAC/28VDC
Rated Coil Power:	DC0.93W,AC1.2va
Coil Specification:	DC3V`110V AC6V~250V
Dimension:	440X310X345

Product Description

PCB RELAY			HHC67F(T91)
Dimension			32.527.527.5mm
Contact Feature	Form		1A,1B,1C
	Rated load		30A,40A
	Max switching voltage		240VAC/28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage			DC:≤75%*Rated voltage
			AC:≤80%*Rated voltage
Release voltage			DC:≥10%*Rated voltage
			AC:≥30%*Rated voltage
Maximum voltage			110%*Rated voltage
Normal coil voltage		DC	3-11OV
		AC	6-240V
Normal coil power		DC	0.93W
		AC	1.2VA
Pick-up time(Rated voltage)			≤15ms
Release time(Rated voltage)			≤10ms
Dielectric strength	Between Same-pole contacts		1500VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient humidity			35%-80%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse:11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB

B.After sales service:

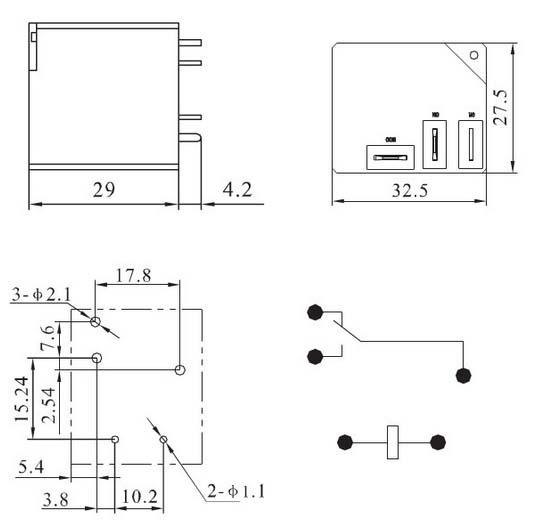

3.Dimension

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
