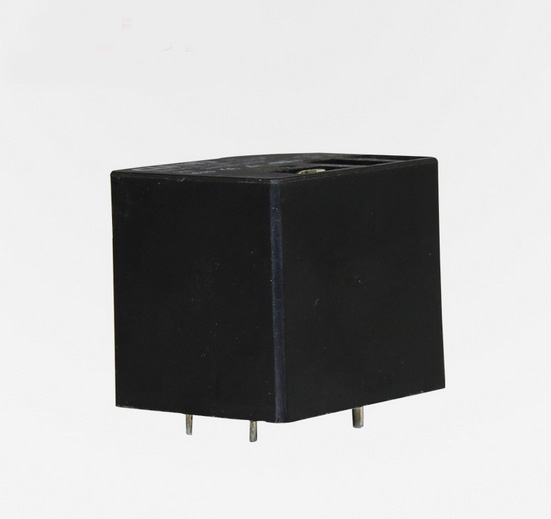

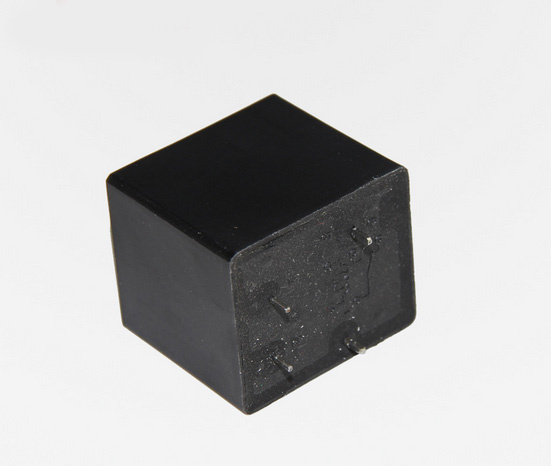

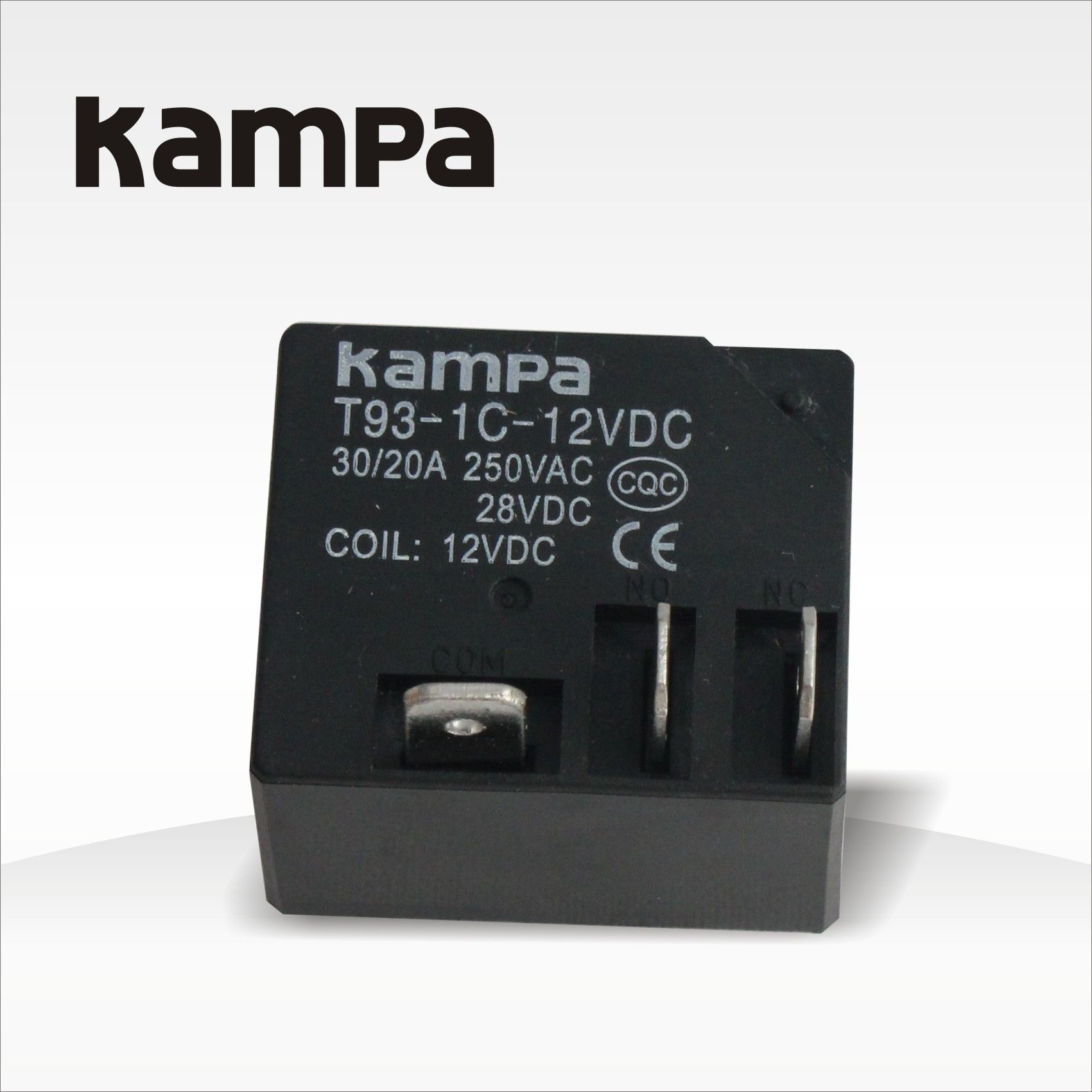

T93 4 Pins PCB Relay 12V 20A

Name: T93 4 Pins PCB Relay 12V 20A
Brand: all-electronics-online.com
SKU: 817906735
Availability: InStock
Rating: 4.7 (68 reviews)

Price:	US $ 0.38/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Dimenison		9.5mmx15.5mmx16mm
Contact	Contact form	1Z,1H,1D
	Rated load	30A	40A
	Max switching voltage	240VAC/28VDC
	Contact resistance	<100mΩ
	Material	Aluminum Alloy
	Electrical life	1000000 times
	Mechancial life	1000000 times
Max allowed voltage		≤10x rated voltage
Rated voltage		≥10x rated voltage
Max allowed voltage		110%x rated voltage
Nominal voltage	DC	DC:3V~110V
	AC	AC:12V~240V
Coil power	DC	DC:0.93W
	AC	AC:1.5VA
Operate time		≤15ms
Release time		≤10ms
Dielectric strength	Between contact	1800WAC/1min
	Between contact and coil	2500VAC/1min
Insulation resistance		>100MΩ(500VDC)
Ambient temperature		-55ºC~+70ºC
Ambient humidity		35%~60%RH
Atmosphere pressure		86~106Kpa
Resistance stamping		10G
Viration resistance		10~50Hz/1.5min
Install mode PCB		pcb
Weight		30g
Packing		600PCS/CTN,22KG/CTN
