water tank level sensor

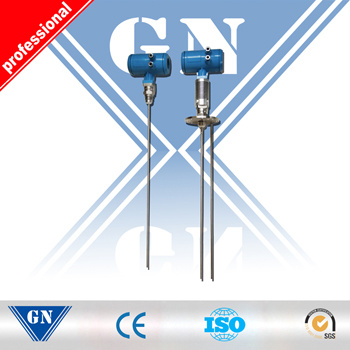

CX-RLM-070 series of guided wave radar material level gauge
Products:
| types | CX-RLM-071 | CX-RLM-072 | CX-RLM-073 |
| Application | Liquid, solid granules | Liquid, solid granules | Liquid |
| Measuring range | 30 meters | 6 meters | 6 meters |
| Process connection | Screw, flange | Screw, flange | Screw, flange |
| Process temperature | -40-250ºC | -40-250ºC | -40-250ºC |
| Process pressure | -1.0-40bar | -1.0-40bar | -1.0-40bar |
| Precision | ±1mm | ±1mm | ±1mm |
| Frequency range | 100MHZ-1.8GHZ | 100MHZ-1.8GHZ | 100MHZ-1.8GHZ |
Anti-explosion/safety
grade | EXiaIICT6/IP68 | EXiaIICT6/IP68 | EXiaIICT6/IP68 |
| Signal output | 4…20mA/HART(two phases) | 4…20mA/HART(two phases) | 4…20mA/HART(two phases) |
Technical parameters :
Parameter: Working frequency: 100MHZ-1.8GHZ
Measuring range: cable type:0-30m;Rod, co-axial type: 0-6m
Repeatability: ±3mm
Resolution: 1mm
Sampling: wave echo sampling 55 times/s
Response speed:>0.2S(depends on concrete application status)
Output current signal: 4-20mA
Precision:<0.1%
Communication interface: HART communication protocol
Process connection: G1-1/2
Flange 2″,3″,4″,6″
Process pressure: -1-40bar
Environment conditions: temperature -40ºC~+80ºC
Shell safety grade: IP68
Anti-explosion grade: EXiaIICT6
Measuring distance :
The following table lists the relations between different types of measured mediums and measuring distance
| Mediums grouping | DK(ε) | Solid granules | Liquids | Measuring range |
| 1 | 1.4…1.6 |
| -condensation gas, such as N2CO2 | 3m(only refers to coaxial rod type probe) |
| 2 | 1.6…1.9 | —plastic with granules
-lime stone, special cement
-sugar | -liquefied gas, such as propane
-solvent
-Fern 12/freon
-palm oil | 25m |
| 3 | 1.9…2.5 | -Ordinary cement, plaster | -Mineral oil, fuels | 30m |
| 4 | 2.5…4 | -corn, seeds
-Stone
-Sand | -benzene, styrene, toluene
-furan
-naphthalene | 30m |
| 5 | 4…7 | -Wet stones, minerals
-salt | —chlorobenzene, chloroform ,
-cellulose spray
—Isocyanuric hydrochloride, amine | 30m |
| 6 | >7 | -Metal powder
-Carbon black
-Coal and charcoal | -water containing liquid
-alcohol
-liquid ammonia | 30m |
Installation picture:
Production picture:
Certificates:
After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
