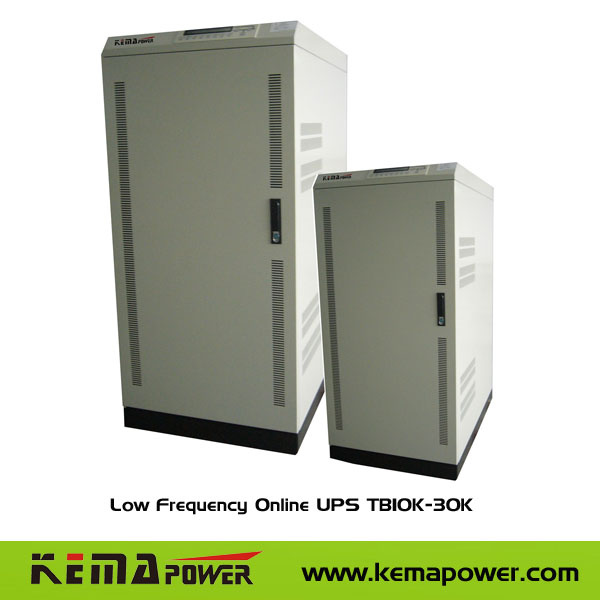

TB Low Frequency Online UPS (TB10K-30K)* I/P: Three Phase, wire voltage 380V/ 205V , O/P:220VAC or 110VAC ± 1%
* Capacity:10K/12K/15K/20K/30K/40KVA
* Output PF: 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms
* DC Voltage: 10/12/15/20KVA:192VDC,30/40KVA:384VDC
* Bat.:External Batterys
* Charge Current: 10/12/15/20KVA:10A,30/40KVA:6-30A adjustable
Key features1. Three phase in, one phase out
2. Microprocessor control
3.100% unbalance protection design
4. True on-line double conversion design providing all power protection
5. Isolated output
6. Sine wave pulse width modulation
7. IGBT inverter design.
8. Wide Input voltage windows
9. Pure sine wave output less than 3% THD
10. Expandable battery run time
11. Generator compatible
12. Cold start
13. Load/Battery power meter display
14. Overload, on-line, battery status LED/LCD
15. Advanced Battery Management
16. Automatic charging in UPS off mode
17. Smart RS-232 communication port
18. Optional SNMP card
Capacity:* TB10kVA/8KW/ 192VDC/6A,
* TB15kVA/12KW/192VDC/6A,
* TB20kVA/16KW/192VDC/6A,
* TB30kVA/24KW/384VDC/20A,
Technical Specifications | MODEL | TB10K | TB15K | TB 20K | TB30K |
| Power Capacity | 10KVA | 15KVA | 20KVA | 30KVA |
| 8KW | 12KW | 16KW | 24KW |
| Input | Voltage Range | 380V±20%(3 phase) or 205V±20%(3 phase) |
| Frequency | 50Hz±5% or 60Hz±5% |
| Phase | 3 Phase + GND |
| Output | Voltage Range | 220V±1% or 110VAC ±1% |
| Phase | Single phase + GND |
| Frequency | 50 (60)Hz ± 0.3% |
| Waveform | Pure sine wave |
| Overload Capacity | Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become normal |
| Power factor | 0.8 |
| THD | < 3%(linear load), < 5%(nonlinear load) |
| Battery | Battery Type | Sealed lead acid, maintenance free |
| DC Voltage | 192VDC | 384VDC |
| Max Charge Current | 10A | 6~30A |
| Efficiency | Whole unit | >85% |
| Transfer Time | 0ms |
| Panel Indication | LCD | Input,oupt,battery voltage,frequency,load rate,UPS state, temperature |
| LED | Main input , bypass,Inverter,Battery,Over load,Fault |
| Environment | Temperature | 0~40ºC |
| Humidity | 0~95%(non condensing) |
| Noise | <58dB(1m) |
| Communication | Interface | RS232 |
| Software | 1.Power status 2.UPS shutdown 3.Monitor UPS status 4.UPS self test 5.Auto-save files |
| Product size(mm) | 700*365*950 | 780*580*1170 |
| product weight(Kg) | 88 | 155 | 155 | 300 |
| Package size(mm) | 780*430*1110 | 945*745*1395 |
| Package weight(Kg) | 98 | 165 | 165 | 350 |
Trade Show:
Certification:
Foshan Kemapower Electronics Co., Ltd. is a leading manufacturer and trader of electronics and electrical equipment with over 10 years experience in this field, and with wide worldwide export in many other countries and regions as well as over 30 sales branches and agents in China. We specialize in manufacturing and supplying UPS, Power inverter, Battery charger, Battery, Solar street lamp kit, solar power system, AC voltage regulator, and other electrical power products. We are a company with ISO certificate and all of our products are designed and produced in accordance with ISO rules. The most of products have passed the CE certificate of EU, UL certificate of U. S. A.
Our products not only occupy a large share in Chinese market but also export to many other countries and regions including USA, Arabia, Middle East, Europe and Southeast Asia with a wide recognition.
Our motto:
- Take Quality First. We believe that success is in the details.
- Good Faith Utmost. We believe that quality products start with quality people.
- Specialized and professional with well skilled focus
Quality requirements of our products and services will be specified into every step of the whole process. Honesty is the most essential quality and character that every our employee shall have.
Market and sales policies
We, Kemapower Electronics Co., Ltd believe that our large success in market is based on three main policies.
- Long-term cooperation
It is our aim in establishing our relationship with every customer and helping him to win a constant development.
- Price positioning strategy
Small profits but quick turnover is our business experience. We always supply our high quality products with the best prices based on our quality criterion.
- After-sale service and support
As we all know, in the global world, where there are no limits anymore, the competition in every field is getting more thorough. High quality products based on strategy of total quality management is the key point. We believe that high quality is a must. Meanwhile, we believe that we need to differentiate ourselves in order to create customer satisfaction.
Obviously Customer satisfaction is the key word for the success. We believe that both our customers and we will achieve great successes in global market as well as in Chinese market in a win-win situation based on our abundant resource and Specialized and professional experience in the Power Products field.
