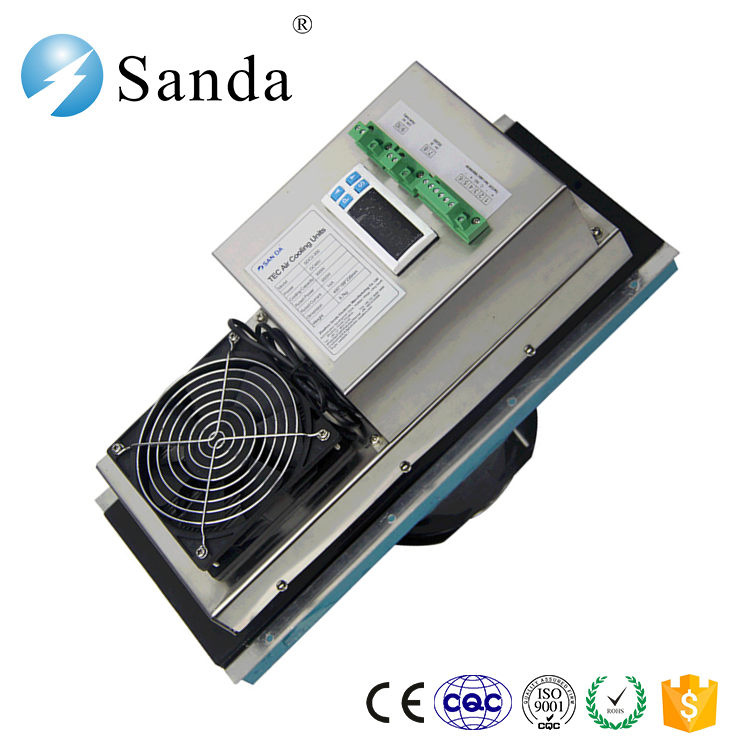

Tec Semiconductor Air Cooler with Heat Sink

Tec Semiconductor Air Cooler with Heat Sink
Price: US $ 426.47-448.92/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SDC2-200
Max Cooling Capacity: 200W
Max Heating Capacity: 200W
Rated Power: 450W
Working Voltage: DC48V
Max Current: 8.5A
Working Temperature: -20 to 55 Degrees Celsius
Working Humidity: 10~95% Rh
Dimension: 400*285*250mm
Weight: 9kg
Protection Class: IP55
Type: Air-Cooled
Certification: CCC
Condition: New
Cooling Water: No

Product Description

Factory direct supply, OEM/ODM available, all goods can be customized.



TEC air conditioner adopts the high reliability thermoelectric cooling module,when both ends of the TEC's chip through the DC ,one end is for cooling and another end is for heating , the temperature difference of the two ends can be as high as 68 ºC. TEC air conditioner integration into the efficient heat pipe radiating technology for efficient cooling. TEC refrigeration currently becoming the mainstream choice for intelligent battery management technology, especially mobile communications base station, outdoor heated cabinet control , provide the high efficiency and low energy consumption environmental solutions for communications base stations, and the engine room of the energy system.

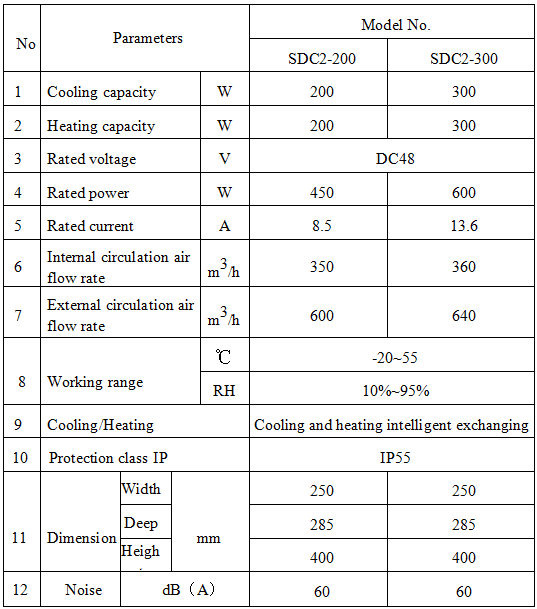

Technical data

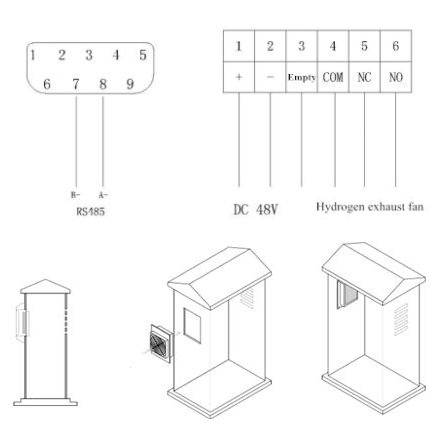

Wiring and installation

A. Embedded the door mounted TEC air conditioner into the open hole from the outside of the cabinet, to ensure the TEC air conditioner's mounting flange match the cabinet's installation position.

BUse 16* M4 phillips screws sequentially align the mounting holes on the mounting flange to fix and tighten it.

 CCheck the mechanical installation of the cabinet TEC air conditioner, and do electrical installation after determining correct.

Application

Certifications

Company Information

Zhuzhou Sanda Electron Manufacturing Co.,Ltd is a modernized high-tech enterprise engages in the research, produce and supplier of intelligent instruments for electric power grid and switch cabinet.
   We design,produce and sell:
1. Multi-function electric meter, multi-function network meter, multi-function harmonic meter, digital ammeter, digital voltmeter.
2.Switchgear intelligent operating devices, switch state indicator.
3.Cabinet air conditioners, thermoelectric cooling units, TEC air conditioners and dehumidifiers.
4.Temperature and humidity controller, dry-type transformer temperature and humidity controller,dry-type cooling fans.

   Widely use in electricity facilities worldwide:
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.

Zhuzhou Sanda Electronic Manufacturing Co., Ltd is a high-tech enterprises who engaged in electrical power systems and industrial automation products.

Our company integrates development, design, production, sales and service as one of the operating entity. Our main products include: Digital meters, multi-function meters, electrical quantity transducer, intelligent dehumidifier, integrated protection relay system, intelligent back-end monitoring system, intelligent control device for switch cabinet, temperature and humidity controller, electric heater, motor protector, over-voltage protection device and microcomputer with associated products and so on.

Products have been widely used in metallurgy, petrochemical, electric power, construction, machinery, power plants, water conservancy, transportation and other fields, and our products reach a high reputation from our customers. We have a group of experienced & professional technical engineering staffs, with a high starting point, high technology, by constantly absorbing the latest international technology and design concept, and actively learn to market demand, to establish a long-term strategic partnership with customers. The company has always pursued the "quality is life, credibility is the guarantee, the user is God, " provide with professional, fast, excellent, safety and after-sales service.

The company has the leading testing and calibration equipment and the establishment of a modern management system. Perfect technology, strict production process, to ensure product quality and safety. The company has passed ISO9001 quality management system certification, the product passed the National Relay Protection and automation equipment quality supervision and inspection center testing, and obtain a certificate. The company also received a number of product patents, "Hunan famous trademark", "love enterprise" and other honorary titles.

Service innovation, the pursuit of excellence" is the purpose of Sanda, we will as in the past to adhere to the "people-oriented, positive enterprising, harmonious development" concept of talent, to provide "safe, accurate, high-quality" product demand for power transmission field demand, and make the greatest contribution to China's intelligent power distribution products manufacturing industry.

Corporate culture:

Goal: The global leading brands of smart grid equipment suppliers!

Mission: To make electricity safer and more intelligent!

Values: Employee happiness, customer appreciation, dedication to the community!

Five executive power: Absolute obedience, the courage to take responsibility, no excuse, act immediately, to create excellence.

Spirit: Integrity, tolerance, respect, pursuit, transcendence, innovation

Motto: To be as good as gold, to be perfect.

Product concept: Safety, accuracy, high quality.

Criteria: Strict implementation, strive for perfection.

Declaration: We are honest and trustworthy, harmonious and development; Diligence, sharing success; We forge ahead, to achieve the ideal; We are closely united, create brilliant; Our ability and customer satisfaction to achieve self value; We use a sincere attitude and effective action to return society.

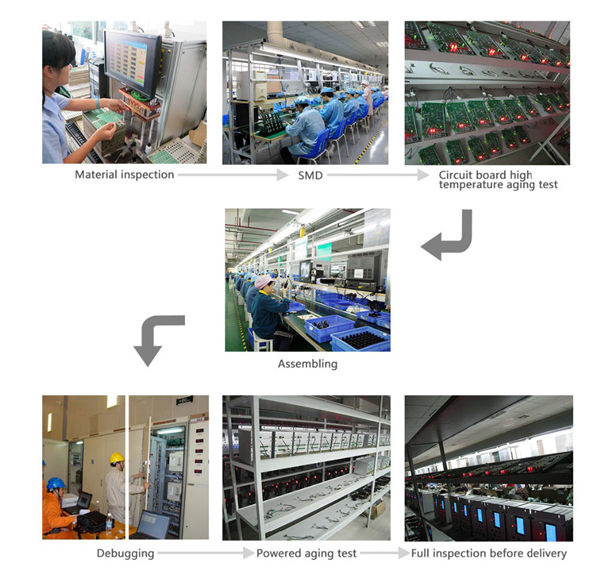

Process quality

According to the "leading technology, strict selection and excellence" quality policy twelve words, solid backing to establish a sound scientific management system for quality assurance, strict implementation of ISO9001: 2008 quality management system, and through certification. The introduction of advanced inspection equipment, according to the national standards for the establishment of a comprehensive test of safety performance, to ensure that all the products have passed strict inspection to ensure that the product pass rate of 100%.
