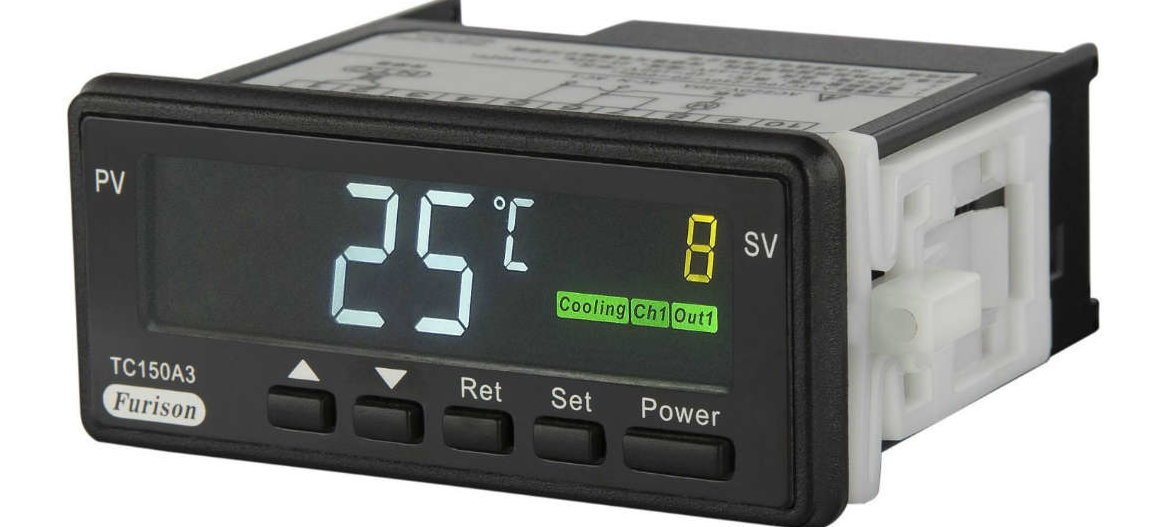

Temperature Controller

Features

1. Membrane touch-pad programming
2. 0.56" high white ,green and yellow LCD display
3. Programmable set point(s) and differential(s)
4. Panel mount enclosure
5. Current Temperature and set values display
6.LCD relay status indicator
7.Easy programming via LCD display prompts
8.Tamper resistant programmable setpoint limit
9.Fault self-diagnosis alarm functionality
10.Combine old temperature controller and adapter
11.Temperature Sensor included

Specification

Power requirements: 24 VAC standard
Relay status indicator: Lit while relay is activated
Relay(s) contact rating: SPST relay, 20 amp (250 VAC resistive)
Ambient operating temperature range: 20º to 158º F,  -6º to 70º C
Ambient operating humidity range: 90% non-condensing
Accuracy: ± 1º F, ± 1º C
Connectors: Screw type terminal block for all connections.
Temperature sensor range: TS-10PTC-3 sensor standard -40º F to 302º F (-40º C to 150º C).  Sensor is on a 36" (.91m) 26 AWG wire and sensor is encased in a nickel plated brass cap.  Sensor can be extended up to 100ft (30.5m) using 18-26 gauge, two conductor wire.
Agency approvals: UL listed

Warranty

All  of devices are covered by five years warranty.
