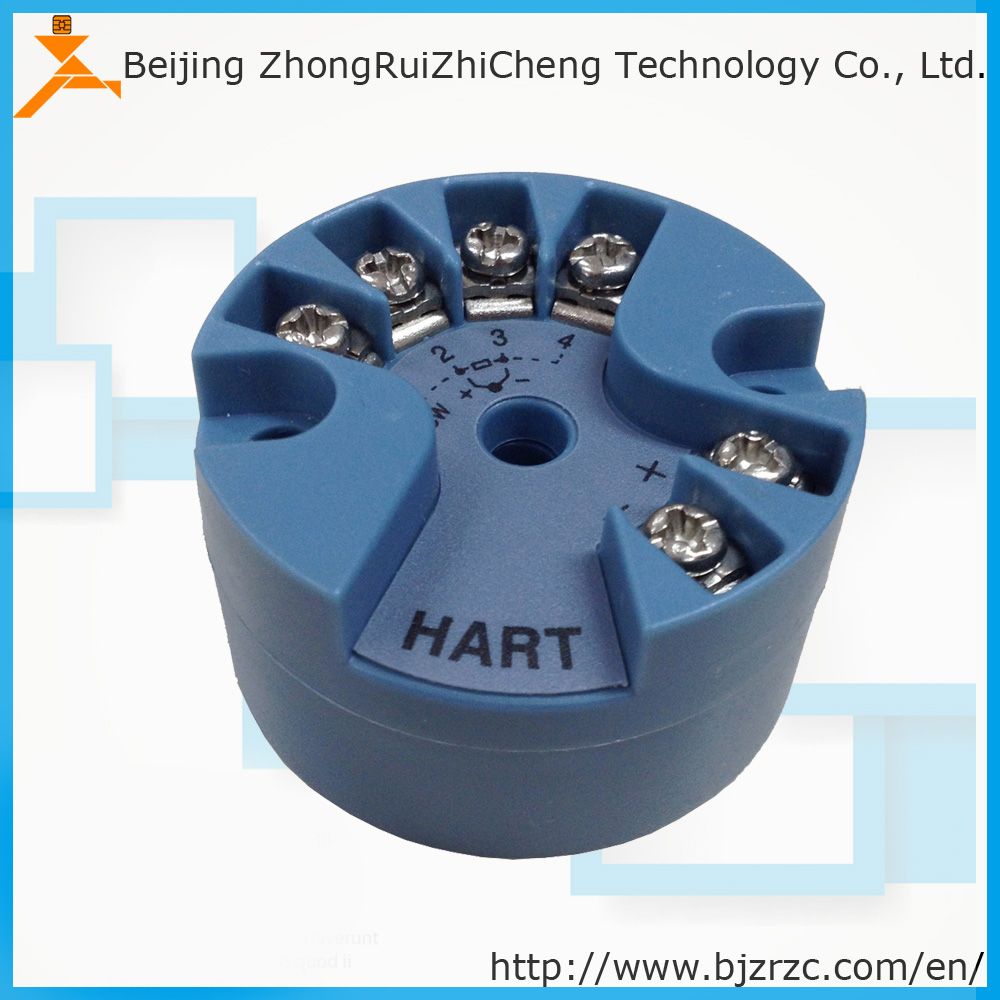

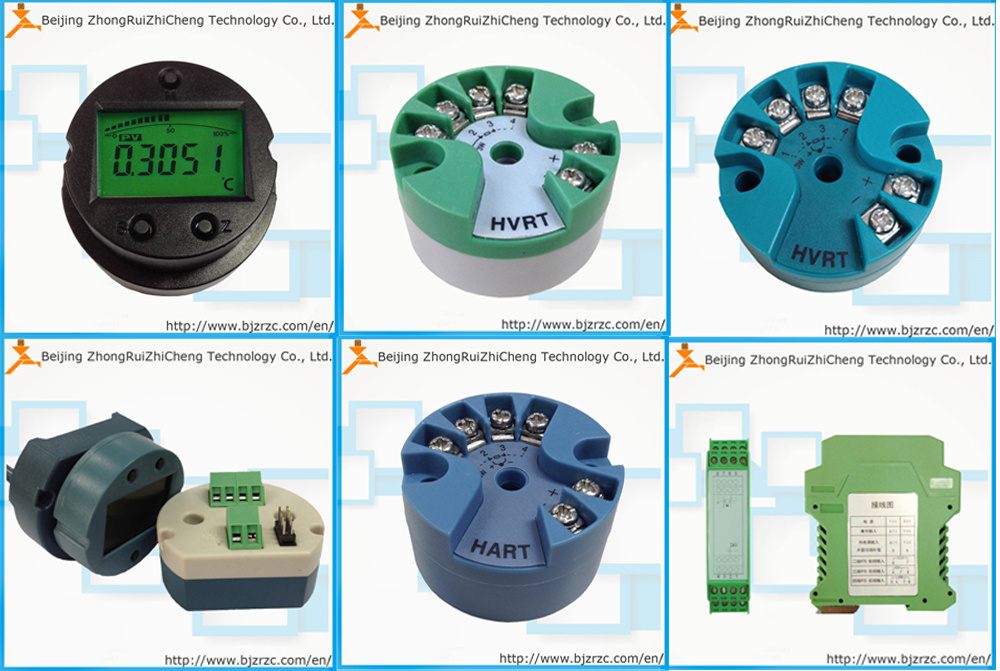

H648 temperature transmitter module | Appliction |
| Used for | RTD, TC, Ohm, mV |
| Specifications |
| Power supply: | 10-32VDC |
| Output: | 4-20 mA with HART (2-WIRE) |
| Stability: | 0.01°C (RTD),
0.1°C(E J K N T)
0.2°C(B R S) |
| Accuracy: | 0.01°C(RTD)
0.5°C(E J K N T)
1.0°C(B R S) |
| Load resistance | ≤ (U-10)/0.22 |
| Relative humidity: | 10%-90%RH |
| Operating temperature | -40°C~+85°C |
| Dimension: | Diameter Φ=44mm |
| Mounting hole pitch: | D=33mm |
| Weight: | About35g |

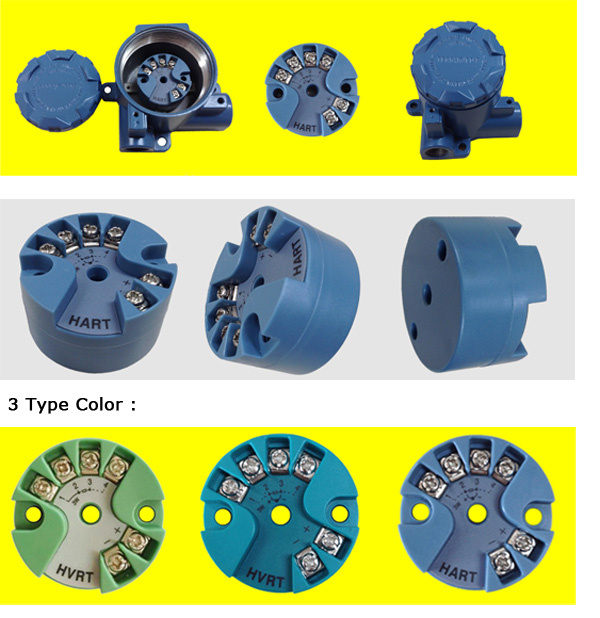

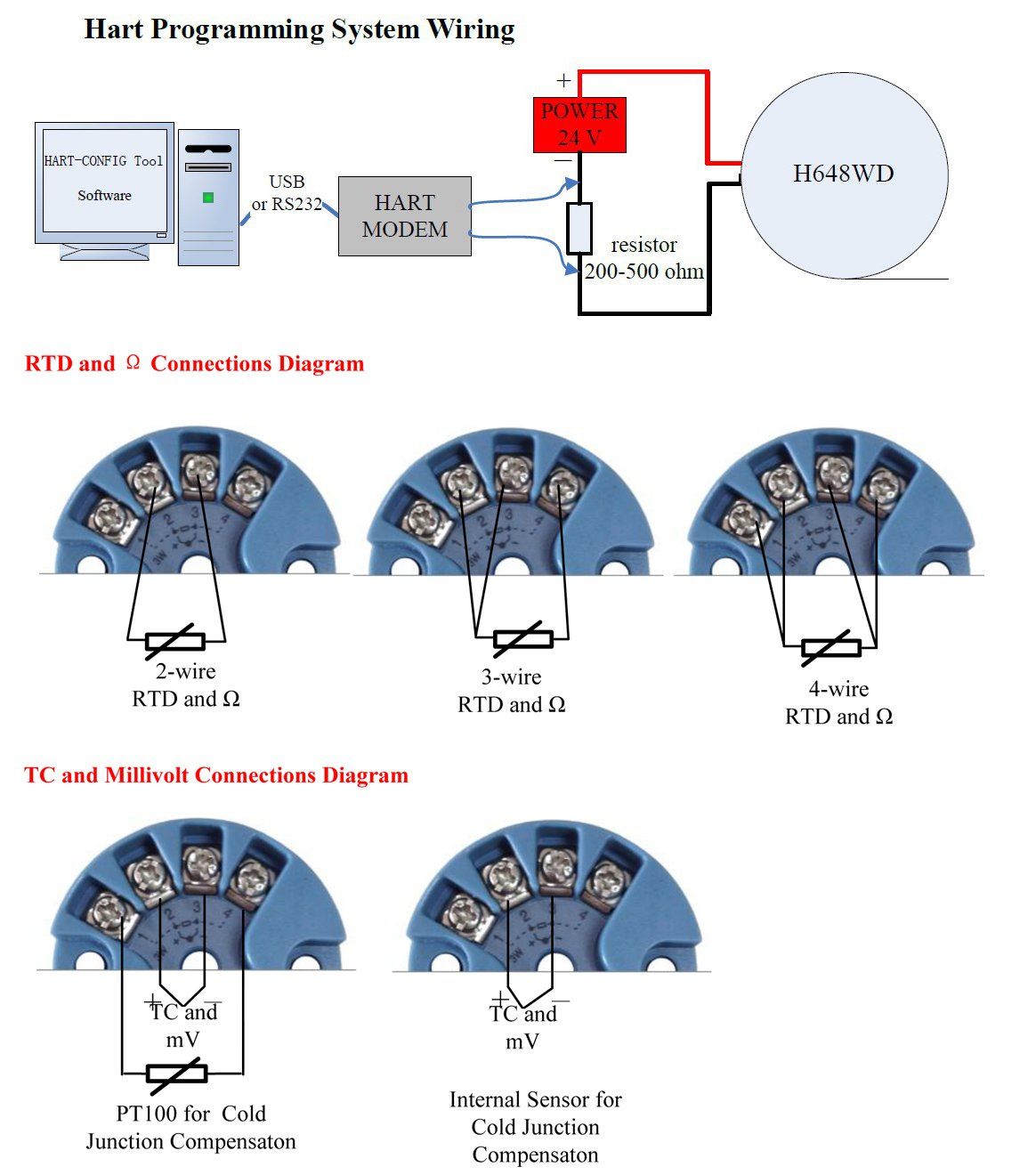

Sensor Type
RTD(Resistance Thermometer):
PT50,PT100,PT500,Pt1000
TC (Thermocouple):
E ,J, K, N ,T ,B, R ,S
Ohm:0 ~ 500Ω, 0 ~ 4500Ω
Millivolt:-120 ~120mV, -1000 ~ 1000Mv |
Features
High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
High reliability: Built-in multi-level protection circuit for high reliability. Outstanding EMC performance.
These are recommended in application requiring amplification of RTD or T/C signals to carry to a long distance or guard against heavy field electrical noise. The transmitter converts various input to an analog signal for direct interface with Indicators, recorders, controllers, PLC, DCS, systems can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system.
| Signal Type | Measurements Range | Minimum
Range | Output Accuracy |
Thermocouples
(TC) | T | -200~400ºC | 25ºC | ±0.4ºC/0.2% |
| E | -200~1000ºC | 25ºC | ±0.4ºC/0.2% |
| J | - 210~1200ºC | 25ºC | ±0.4ºC/0.2% |
| K | -200~1372ºC | 25ºC | ±0.4ºC/0.2% |
| N | -200~1300ºC | 25ºC | ±0.4ºC/0.2% |
| R | 0~1768ºC | 100ºC | ±0.8ºC/0.2% |
| S | 0~1768ºC | 100ºC | ±0.8ºC/0.2% |
| B | 150~1820ºC | 100ºC | ±1.0ºC/0.2% |
mV input | -120~120mV | 10mV | ±10μV /0.2% |
| -1000~1000mV | 50mV | ±100μV /0.2% |
Resistance
Temperature
(RTD) | Pt50 | -200~850ºC | 10ºC | ±0.15ºC/0.2% |
| Pt100 | -200~850ºC | 10ºC | ±0.15ºC/0.2% |
| Pt500 | -200~850ºC | 10ºC | ±0.1ºC/0.2% |
| Pt1000 | -200~850ºC | 10ºC | ±0.1ºC/0.2% |
Ohm input | 0~500 Ω | 100Ω | ±0.2 Ω/0.2% |
| 0~4500 Ω | 100Ω |
±1.0 Ω/0.2%
|
Packaging & Shipping:
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples small quantity are avaliable at any time Welcome to contact us!
