Terminal Block /12 Position Terminal Strip Connector

Name: Terminal Block /12 Position Terminal Strip Connector
Brand: all-electronics-online.com
SKU: 651979935
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U Type or H type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time: 30 Days:	Price Term: Fobningbo or Shanghai
Material:	PA PE or PP
Application:	Cable
Environmental Protection:	General
Connection Mode:	Threaded Connection
Contact Termination Form:	Screws Fixed
Brand:	Fato

Product Description

Product Description:

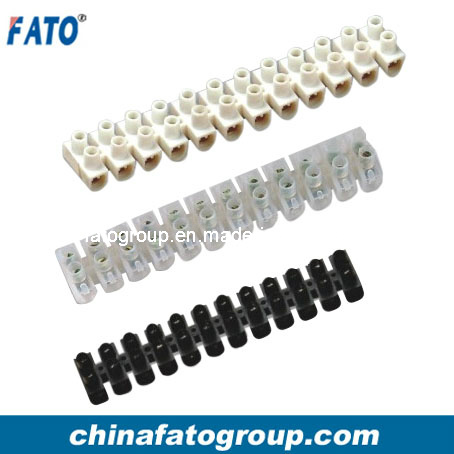

Terminal Block (Wire Connector)
Type: U Type or H Type
Material: Made from PA, PE or PP

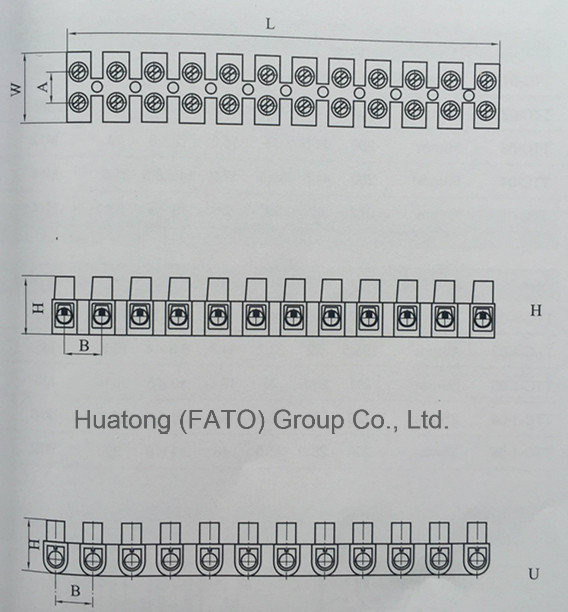

Item NO.	L	W	H	A	B	mm2	VOLT	AMP	Packing
FT-3A	93	16	12	6	8	4	400V	3A	10PCS
FT-6A	115	15.7	13	6.5	9.5	6	400V	6A
FT-10A	126	20.2	15.5	8.4	10.5	10	400V	10A
FT-16A	139	23	17.7	10.3	12	12	400V	16A
FT-20A	155	25	19.2	11.5	13.5	14	400V	20A
FT-30A	171	26	20.5	12	14.5	16	400V	30A
FT-60A	192	30	26	13.5	16.5	25	400V	60A
FT-80A	205	33	27	15	17	35	400V	80A
FT-100A	250	46	31	22	21	40	400V	100A

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.

Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
