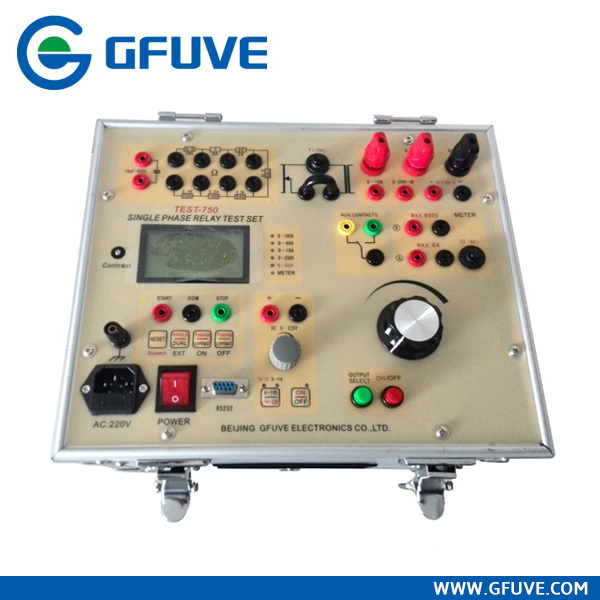

TEST-750 Single phase microcomputor protection relay test set
TEST-750 single-phase relay test set high performance, portable to test in the field; it adopts aluminum alloy body with PC panel, robust shape; with the ARM chip control, LCD screen display single-phase protective relay test device of voltage and current output stopwatch; a full isolation, adjustable AC and DC voltage, AC direct current; an adjustable DC voltage and an adjustable AC voltage; output circuit with double overload protection, high output capacity, small size, light weight, high reliability. The equipment is suitable for a variety of relay field calibration and performance test.
Features
U/I Test and DC Test, All the isolation adjustable DC voltage output, short circuit, overload and over range protection automatically
The maximum output current: 0-150A
Equipped with LCD digital AC/DC ampere meter, it can show AC/DC voltage, current, stopwatch potential and contact
Internal electronic stopwatch, available electric contact work, potential of up to 250V, dual measurement
Integrated kit design with multiple functions, and easy to carry
Parameters

Electrical parameters
Rated input power
AC	220V±10% 1000VA·50/60Hz or 110V±10% 1000VA·50/60Hz
Turn on/turn off auxiliary contacts
Max current	1A
Max voltage	AC250V or DC120V
AC output
Range	0-10A	0-40A	0-100A	0-100A
No-load Voltage(Min)	90V	25V	10V	10V
Full-load Voltage (Min)	80V	22V	8V
Full-load Current (Max)	10A	40A	100A	150A
AC/DC voltage output
Range	0-250V(AC)	0-300V(DC)
No-load Voltage(Min)	250V	320V
Full-load Voltage (Min)	240V	250V
Full-load Current (Max)	3A	3A
Auxiliary DC voltage output
Range	5-120V	110-220V
Max Voltage	120V	220V
Max Current	0.5A	0.5A
Auxiliary AC voltage output
Range	0-120V
Max voltage	120V
Max current	0.5A
Stopwatch
Range	0.0000-999999S
Resolution	0.1mS
Accuracy	±5 words
Max input voltage (With contact and potential nput)	DC 250V
Ammeter
Range	Inside 0.000-150.0A Outside 0.000-6.000A(AC or DC)
Accuracy	0.50%
Voltmeter
Range	0.0-600.0V(AC or DC)
Accuracy	0.50%
Measuring mode	AC True RMS DC Average value
Resistor
Resistance	0.5Ω-2.5kΩ
Mechanical characteristics
Dimensions (W×D×H) (mm)	340×270×260
Weight	18kg
Mechanical parameters
Temperature	-10°C to 40°C
Relative humidity	<80%

Prod Model:	TEST-750
Keyword:	Single Phase Microcomputor Protection Relay Test
Model:	Microcomputor Protection Relay Test Set
Test-750:	Relay Test Set
Max Input Voltage (with Contact And Pote:	DC 250V
Measuring Mode:	AC True RMS DC Average Value
Weight:	18kg
