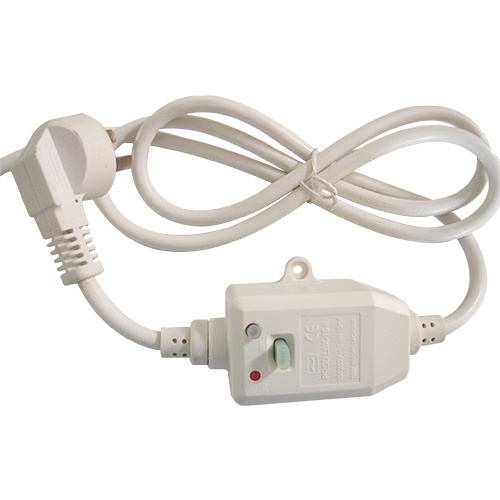

LBX series single-phase plug leakage protector, using application-specific integrated circuit technology abroad is our factory production, is a new power series security products, has the characteristics of small volume, good appearance, safe and reliable, supporting all kinds of electric appliances, greatly improving the safety performance.
A, properties
1, the product features:
This product is a flat type three pole plug structure, all adopt the UL VO level flame retardant materials, has a strong power capacity, anti surge voltage 7000 v, with power indicator, using free trip mechanism, make the trip action without being affected by reset button to the state of the shock wave action type, tamper-proof more reliable.All products will use low power leakage protection for IC, is completely different with other products, has a special low power consumption, particularly high sensitivity, especially the use of voltage (150 v to 270 v) is wider in the product transformer adopts imported high magnetic flux ring beryllium Mo alloy, its character is more stable, low loss, balance to ensure the stability of the current action.
2, model and their meanings:
L B - leakage protection - plug - 16 - X rated current level 16 a framework
3, the main technical indicators in line with GB20044-2005 (new standard) :
Rated voltage 220 v rated frequency 50 hz current 10, 16 a, a
(1) rated the leakage current of 10 mA, no current action 5 mA, breaking time is less than 0.1 S; 30 mA
(2) rated leakage current action, no action current 15 mA, breaking time is less than 0.1 S;
Second, the installation and inspection
1, install
Leakage protection plug is mainly used for mobile electrical appliances, according to the requirements of users, the power cord is equipped with different specifications.Usually use three wire, yellow is the earth wire, brown is phase line (L), blue is zero line (N).Customers need to pick up in the corresponding electric appliance. When using this product should be of short circuit protector, corresponding to short-circuit caused by accident.
2, inspection
After leakage protection plug connected to the power supply, press the reset button, indicator, says it has connected.Press the test button, leakage plug automatically disconnect, disconnect the power, the light is put out.Press the reset button, indicator, can be put into use.
If you press the reset button to reset, should check whether there is electric appliances leakage situation, should be timely maintenance.
Three, use and the matters needing attention
1, use environmental requirements:
(1) using the environment temperature 15 ºC - + 40 ºC, relative humidity is not more than 90%, avoid condensation water.
(2) the installation location of altitude does not exceed 2000 m. (3) the leakage plug installation place, in any direction should not be more than 5 times of the geomagnetic field. (4) the pollution levels of 2.
2, use
(1) indicator of leakage protection plug, said power on, the electrolysis electric equipment can be normal use, otherwise should press the reset button, connect the power supply.
(2) when the connection of electric apparatus after use, and will use a long time, and the next time you can press the test button, let leakage automatically disconnect the power plug, for next time use, press the reset button again to power on.
3, note:
(1) in order to ensure the leakage plug can be normal use, please press the test button 1-2 times a month, if you disconnect (light is put out), shows that the leakage protection plug performance is good, can press the reset button, continue to use.
(2) such as failure occurs, please send back to the long maintenance, do not own repairing.
(3) special note: this product is to the human body contact phase, at the same time can't protect electric shock caused by zero!
(4) to load a short-circuit, overload, this product can't automatic tripping.
(5) the product from the date of delivery, the user used correctly, this factory product shall provide two years free warranty service, but such as artificial damage, improper use or unauthorized repair, the quality of the user needs to be repaired, then take appropriate repair at its discretion, but the quality is not responsible for the accident responsibility, two years after the normal repair parts cost recovery.
(6) to choose high quality socket.Inferior because of poor contact socket can produce high temperature damage to this Another way of details payday cash loans occasion borrowing money.

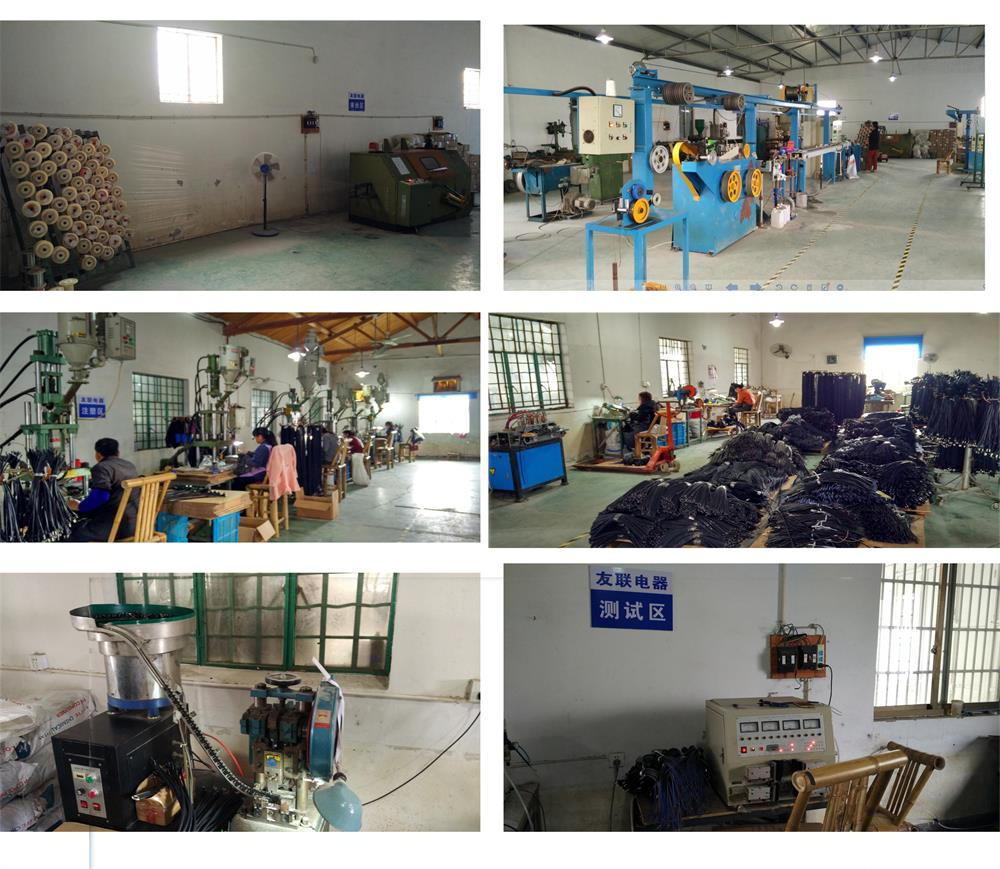

Production workshop
