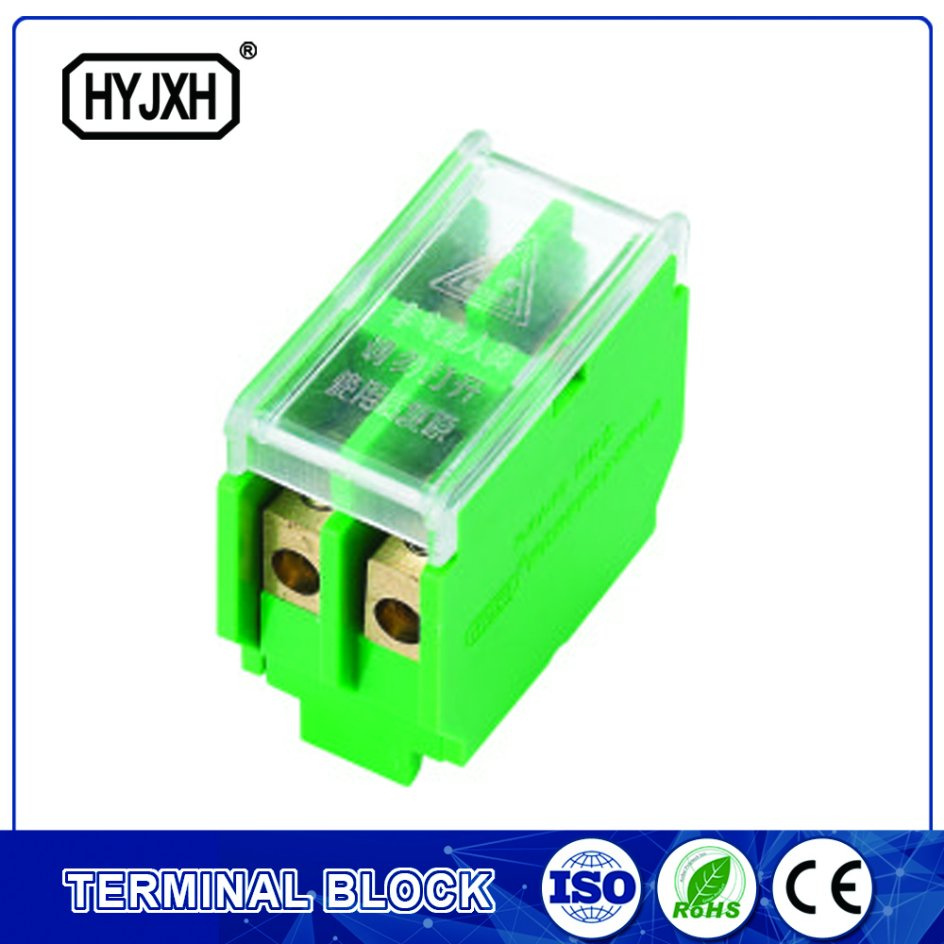

The Guide Rail Type Energy Measuring Terminal Block
| Price: |
US $ 2.68-5.32/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
FJ6/JHN/2 Series The Guide Rail Type Energy Measuring Terminal BlockGeneralIn order to improve residential electricity consumption condition, our company develops FJ6/JHD series terminal block .This kind ofterminal block enables the operation to be more convenient, and also guarantees reliable connection, and finally reaches the aim of safetyin utilizing electric energy. This products get high appreciation from the energy measuring operators one-meter"and standardizationof energy measuring devices as well as standardized management. The products are also honored as national high-quality technologicalproducts and are recommended for application by national electric power bureau. ApplicationApplication of this terminal block enables house service wire to be separated from meter service wire, which solves the problem of parallel connection. Terminal block cover can be sealed to prevent electricity theft ; Neutral line terminal block canbe earthed repeatedly. It is in conformity with the"special, sealed"principle standardization of one-household one-meter. The productsare applied in"one-household one-meter"electric energy metering box.
Structural featuresThis series of terminal block adopt high-molecular polycarbonate material imported from America. It has advantages of highimpact resistance, moisture resistance, favorable insulation; ageing resistance, flame retardant, high temperature resistant, etc.. The binding screw adopts compound recess , which is suitable for flathead screwdriver and crossed screwdriver The products are populardue to compact volume, large capacity, high withstand voltage, reasonable structure, and elegant appearance. Main Technical Indexes1,Insulation voltage:660V,50Hz/60Hz 2,Calibrated current:30A(40A)outlet of each circuit3,Operating temperature:-40ºC~+120ºC continuously4,Power frequency withstand voltage:3000V/minute5,Insulation resistance among terminals:>40MΩ

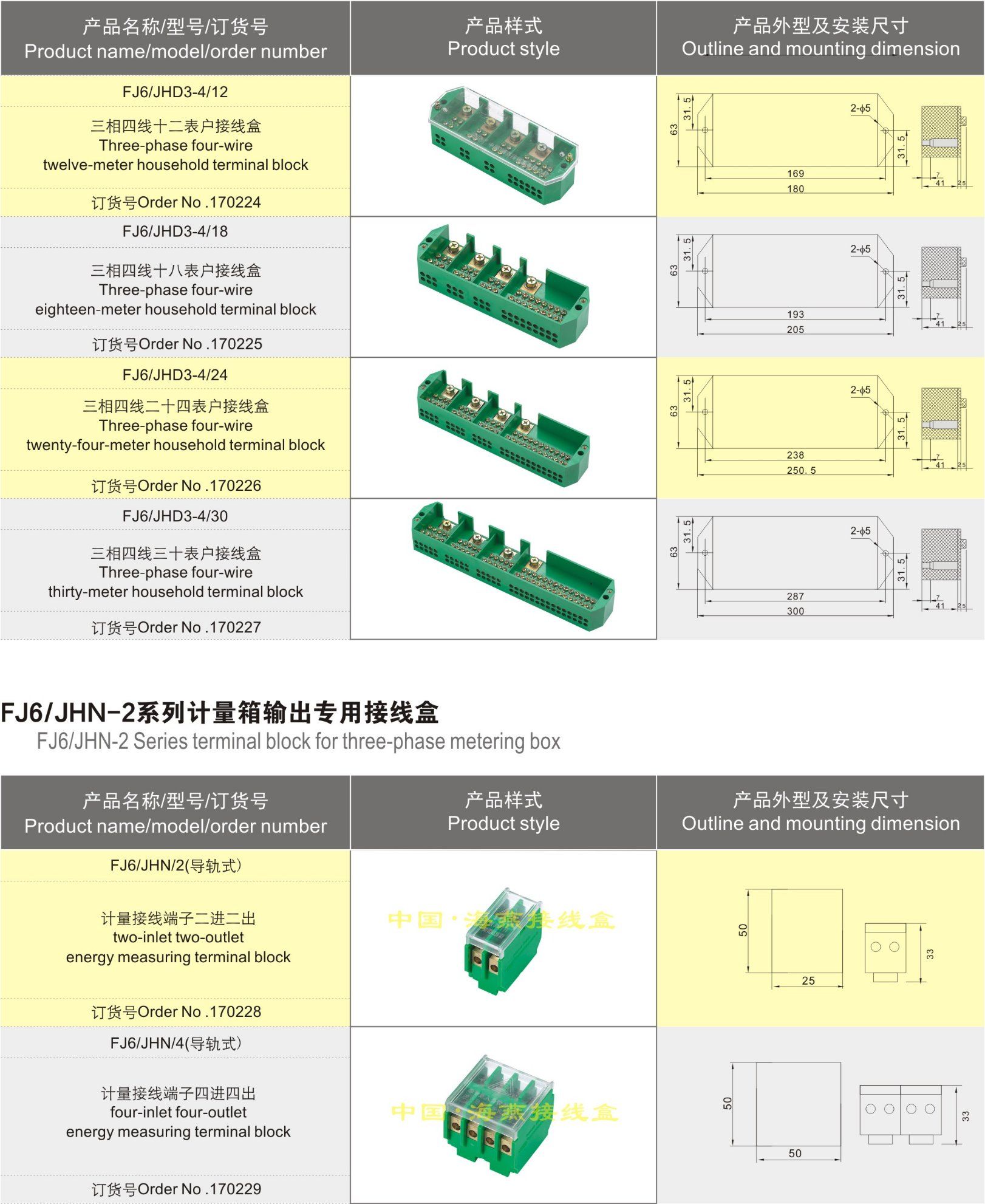

| Prod Model: |
FJ6/JHN/2 |
| Insulation Voltage: |
660V,50Hz/60Hz |
| Calibrated Current: |
30A(40A)Outlet of Each Circuit |
| Operating Temperature: |
-40ºC~+120ºC Continuously |
| Power Frequency Withstand Voltage: |
3000V/Minute |
| Place Of Origin: |
Zhejiang,China(Mainland) |
| Brand Name: |
Haiyan |
| Quality Assurance: |
18 Months |
| Delivery Time: |
Delivery Will Be Made 7days After Payment |
| Color: |
Green |
| Product Name: |
The Guide Rail Type Energy Measuring Terminal Blo |
| Application: |
Transmission of Electrical Signals |
| Type: |
The Guide Rail Type Energy Measuring Terminal Blo |
| Material: |
PC |
| Brand: |
Haiyan |
China. Haiyan Terminal blocks Co., Ltd is a professional manufacturer integrating researching and developing, producing and selling large current terminal blocks, which was founded in 1991.
Haiyan terminal block brand is renowned at home and abroad. Independent research and development of electric energy metering box series, meter box series branch terminals, large current terminals, complete sets of electric control line dedicated terminal series, multi-purpose terminal series, T series, switch terminal terminal series, insulating puncture piercing connector series, Nylon cable tie series and all kinds of wiring equipment and other products, the company has also developed more than 100 series and more than 1500 specifications of the products.
Advanced production equipment and process technology, its capacity and scale are increasingly attractive. Insisting on the principle of, basing on new technology and new products", the company keeps to provide the products of high quality and advanced performance to meet the various market demands. The products are recommended by the around the power sector, the products are exported to Germany, the United States, Southeast Asia and so on, has been widely used at home and abroad.
+culture
Any resource can be exhausted, only cultural endless. The core power of Haiyan terminal blocks, the construction of tangible carrier from enterprise culture, it gave the platform for each employee to realize the value, when the majority of enterprises are still in the pursuit of a single product profit maximization, more and more customers has begun to pay attention to the products they bought, whether the production is in good working. Haiyan terminal blocks is trying to make sure that each product is manufactured in safe and environmentally friendly conditions. All employees can enjoy good welfare and corporate culture edification.
+ system
Haiyan junction box has a relatively independent core business system, operates the "Haiyan junction box" brand, strictly in accordance with the International Electrotechnical Commission Standard production. Haiyan junction won more than 100 patents, the company passed ISO9001 and ISO14001 certification in advance, the product won CE certification, CCC certification, CQC authorized by laboratory testing and qualification, has been awarded the independent rights of import and export. On the brand operation, it has formed more than 10000 retail terminals in more than 150 large and medium-sized cities throughout the country. Haiyan junction box purchased the international advanced testing equipment, procurement of electrical accessories in raw materials, Haiyan junction boxes are strictly in accordance with international standards to buy. In strict accordance with the international and national standards to produce, from a high starting point to design, development and manufacturing, which many products won national patent.
+ people
The company attaches great importance to the strength of personnel technology, the existing staff of more than 500 people, of whom more than 50 have senior technical titles, such as senior engineer. It has gradually realized the transition from "rule of man" to "rule of law". A quality service system has been formed to provide comprehensive support for manufacturers of various industries.
+ target
Base on the tenet of "safety, stability, pioneering and enterprising", the company always insists that the market is the foothold of the company, the customer is the teacher of the enterprise, and the customer satisfaction is the goal of the company's service. Through keeping pace with the times and constant innovation, Haiyan is always ahead of the age and takes the leading pace in the industry. To appreciate customer's long-time support and cooperation, also to develop new business realm, Haiyan sincerely welcome domestic and overseas customers and personage from each circle to cooperate for mutural brilliance.
