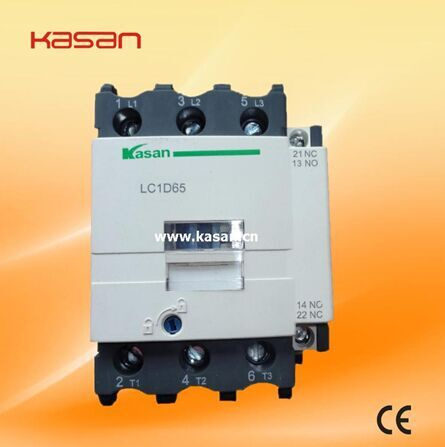

The Newest Type LC1-D40A/50A/65A AC Contactor

Name: The Newest Type LC1-D40A/50A/65A AC Contactor
Brand: all-electronics-online.com
SKU: 689838122
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	US $ 1.5-15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

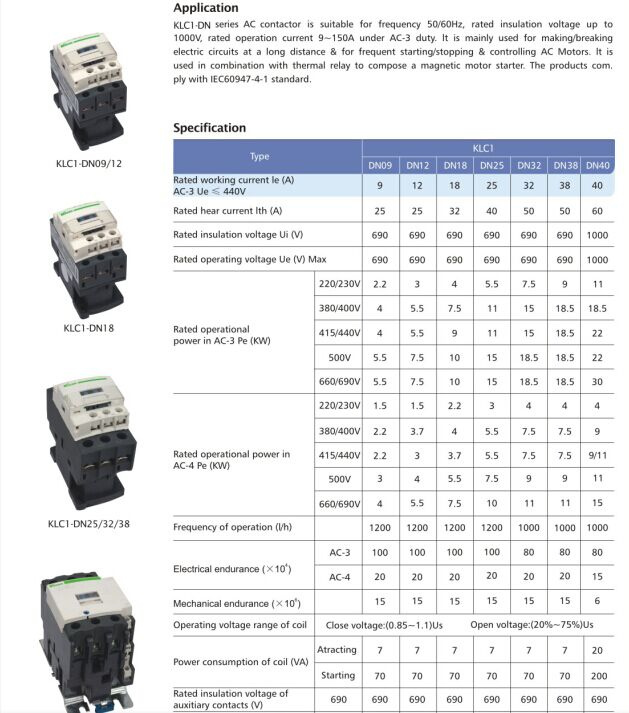

LC1-D new series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 185A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards

Type	Rated insulation voltage(V	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Installation Method
Type	Rated insulation voltage(V	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts	Installation Method
LC1-09	660	20	9	2.2	4	4	4	5.5	3P+NO+NC	1with two screws 235mm din rail
LC1-12	660	20	12	3	5.5	5.5	5.5	7.5	3P+NO+NC
LC1-18	660	32	18	4	7.5	9	9	9	3P+NO+NC
LC1-25	660	40	25	5.5	11	11	11	15	3P+NO+NC
LC1-32	660	50	32	7.5	15	15	15	18.5	3P+NO+NC
LC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1with three screws 275mm 0r 35mm din rail
LC1-5011	660	80	50	15	22	25	30	33
LC1-6511	660	80	65	18.5	30	37	37	37
LC1-8011	660	125	80	22	37	45	45	45
LC1-9511	660	125	95	25	45	45	45	45

Prod Model:	LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
.Contactor No:	3p+No+Nc
.Contactor Current:	40A to 65A

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
