Thermal Expansionstrip Used for Protecting Wedge

Name: Thermal Expansionstrip Used for Protecting Wedge
Brand: all-electronics-online.com
SKU: 743412675
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 0.25-0.55pc
Trade Terms:	FOB,CFR,CIF
Min Order:	3000pc
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	More Than1.4G/Cm3
Delivery:	7-10 Working Days
Size:	600*1000mm
Tensile Strength:	More Than 120 MPa
Appliction:	for Motor & Generator
Samples:	Free Samples Are Welcome
Formation Methods:	High Temperature and High Pressure
Thermal Expansion Rate:	Greater Than 70%
Customizable:	Yes
MOQ:	5 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

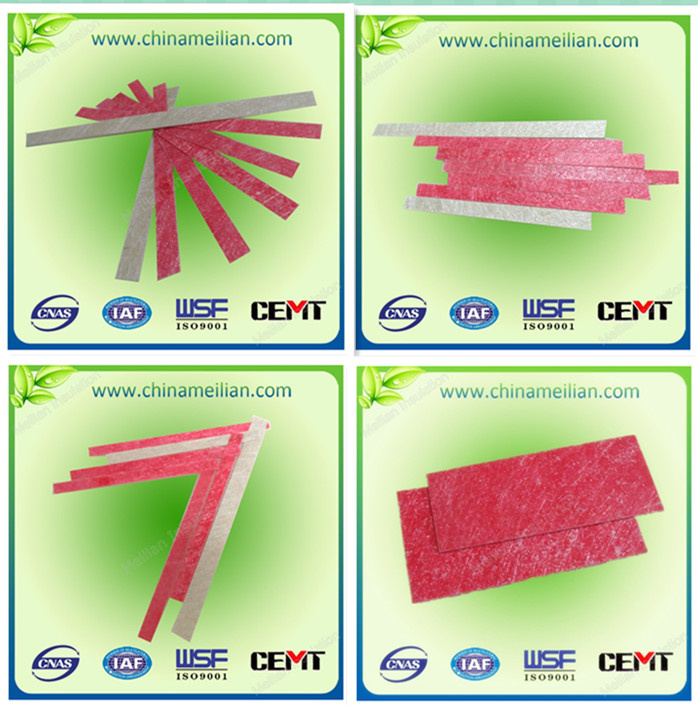

Insulation laminate thermal expansion fiberglass sheet/ board:
Appearance:
Light pink, white, surface smoothly, cutting edges neatly, without layer and impurities

Feature:
Solve the long-term operation of motor slot wedge looseness
Ensure that the motor can run reliably.
Extend motor service life
Important significance to the motor & electrical industry technology progress

Application:
AC and DC motor and generator groove strip
Coil end insulation cushion block
Kinds of electrical equipments.
The thermal expansion rate is greater than 70%.

Packaging Detail: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

Basic information
Product name	Thermal Expansion Fiberglass Sheet/Strip/Pad
Item No.	MJ-301
Brand	MJ
Material	Alkali free fiberglass
Grade	With the same grade of the impregnate varnish
Technical Performance
Density	≥1.4g/cm 3
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Water absorption	≤1.0%
Thermal Expansion Rate(Thickness Direction) 30min/130°C 30min/180°C	≥50% ≥80%
Reference Standard	GB/T1303.1-1998

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services "
