Prod Model: |

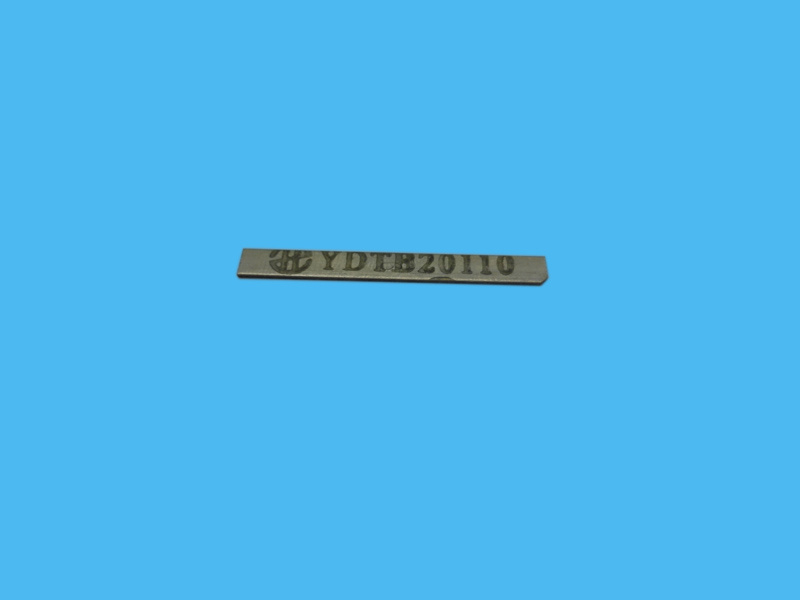

YDTB20110 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product: |

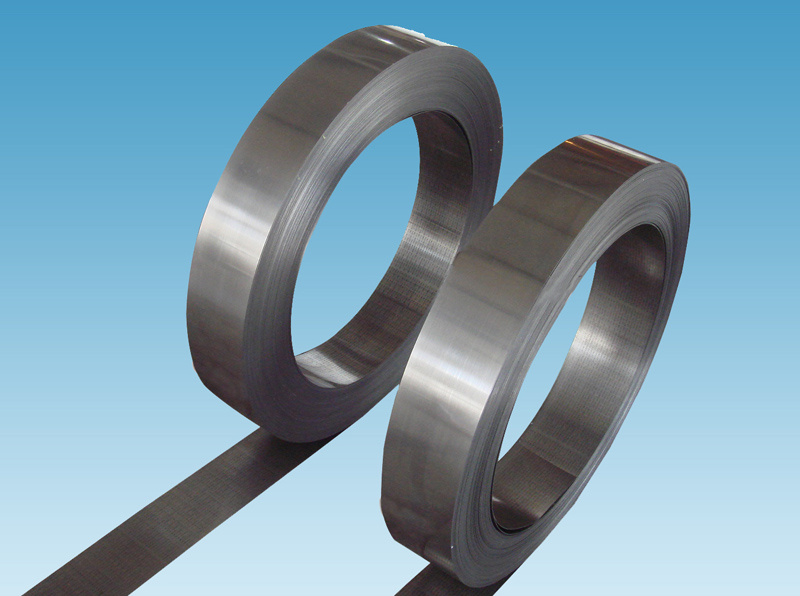

Bimetal Strip |
Thickness: |
0.1/0.2/0.3/0.5/0.6mm,etc |
Width: |
7/9/12/24/34/36mm etc |
Application: |
MCB/Breaker/Relay/Electric Kettle,etc |
Certificate: |
ISO9001 |
Technique: |
Cold/ Hot Roll |
Packaging Details: |
Be Packed in Wooden Cases |
Delivery Details: |
10-20days |
Warranty: |
12 Month |
Product Description
Thermostatic bimetals are today widely used in control ,safety and thermal compensation Systems , due to their reliability, sturdiness and low cost .The wide range of YADA bimetals ,manufactured to DIN standards ASTM standards and chinese GB standards , ensures a Choice of products closely matched to di f ferent speci f ic requi rements. Moreover the tighter gurantees offered by YADA for both the physical properties and dimensional tolerances enable the bimetals to meet the increasingly stringent demands of modern industry
Finally ,in YADA , as throughout the company , Total Quality is a permanent preoccupation,from the selection of raw materials to the delivery of strip or finished components. The care and rigour involved in this approach ensure total quality and reproduceability.
To choose among the wide range of available types of bimetals,several factors have to be considered ,such as:
working temperature
linearity range
electrical resistivity
corrosion resistance
YADA Type (YDTB) | Spec thermal curvature k 10-6 | Spec thermal deflection a 10-6 | Linearity range Acc. DIN1715
ºC | Upper application limit
ºC | Stabilisation temperature
ºC/2hours | Electrical resistvity at 20ºC
μΩ.m | Density at 20ºC
g/cm3 | Vickers hardness (HV) for standard reducation | Thermal conductivity at 20ºC
W/m-k | Specific heat at 20ºC
J/g-k | Modulus of elasticity at 20ºC
N/mm2 | Maximum admissible stress at 20ºC σPerm N/mm2 |
Active side | Passive side |
YDTB20110 | 39.0+/-4% | 20.8 | -20 +200 | 350 | 250 | 1.10+/-4% | 7.6 | 205 | 210 | 6 | 0.46 | 135000 | 200 |
YDTB14140 | 28.6+/-5% | 15.5 | -20 +200 | 350 | 250 | 1.40+/-5% | 7.4 | 205 | 210 | 6 | 0.46 | 134000 | 150 |
YDTB15120 | 28.5+/-4% | 15.3 | -20 +200 | 350 | 250 | 1.20+/-4% | 7.6 | 205 | 210 | 6 | 0.46 | 150000 | 200 |
YDTB60SP | 38.5+/-4% | 20.5 | -20 +200 | 350 | 250 | 0.58+/-5% | 7.8 | 205 | 210 | 12 | 0.46 | 135000 | 200 |
YDTB40SP | 38.5+/-4% | 20.5 | -20 +200 | 350 | 250 | 0.40+/-5% | 7.8 | 205 | 210 | 20 | 0.46 | 135000 | 200 |
YDTB25SP | 38.5+/-4% | 20.5 | -20 +200 | 350 | 250 | 0.25+/-5% | 7.8 | 205 | 210 | 30 | 0.46 | 135000 | 200 |
YDTB20SP | 38.5+/-4% | 20.5 | -20 +200 | 350 | 250 | 0.208+/-7% | 7.8 | 205 | 210 | 40 | 0.46 | 135000 | 200 |
YDTB15SP | 38.2+/-4% | 20.4 | -20 +200 | 350 | 250 | 0.15+/-7% | 7.8 | 205 | 210 | 54 | 0.46 | 135000 | 200 |
YDTB11SP | 38.2+/-4% | 20.4 | -20 +200 | 350 | 250 | 0.115+/-7% | 7.9 | 205 | 210 | 71 | 0.46 | 135000 | 200 |
YDTB8SP | 38.0+/-4% | 20.2 | -20 +200 | 350 | 250 | 0.082+/-9% | 8.0 | 205 | 210 | 104 | 0.46 | 135000 | 200 |
YDTB5SP | 33.8+/-4% | 17.9 | -20 +200 | 350 | 250 | 0.048+/-9% | 8.2 | 205 | 210 | 155 | 0.46 | 135000 | 150 |
YDTB1578 | 28.5+/-4% | 15.0 | -20 +200 | 450 | 350 | 0.78+/-5% | 8.1 | 235 | 210 | 13 | 0.46 | 170000 | 200 |
YDTB1480 | 28.1+/-4% | 14.0 | -20 +200 | 450 | 350 | 0.80+/-5% | 8.2 | 235 | 210 | 12 | 0.46 | 170000 | 200 |
YDTB1455 | 26.1+/-4% | 14.0 | -20 +200 | 450 | 250 | 0.55+/-5% | 8.2 | 235 | 210 | 16 | 0.46 | 170000 | 200 |
YDTB1440 | 27.6+/-4% | 14.2 | -20 +200 | 450 | 250 | 0.40+/-5% | 8.3 | 235 | 210 | 20 | 0.46 | 170000 | 200 |
YDTB1430 | 27.2+/-4% | 14.8 | -20 +200 | 450 | 250 | 0.30+/-5% | 8.3 | 235 | 210 | 23 | 0.46 | 170000 | 200 |
YDTB1425 | 26.1+/-4% | 14.0 | -20 +200 | 450 | 250 | 0.25+/-5% | 8.3 | 235 | 210 | 28 | 0.44 | 170000 | 200 |
YDTB1415 | 26.9+/-4% | 14.3 | -20 +200 | 450 | 250 | 0.15+/-5% | 8.3 | 235 | 210 | 55 | 0.45 | 170000 | 200 |
YDTB1411 | 26.1+/-4% | 14.0 | -20 +200 | 350 | 250 | 0.11+/-5% | 8.2 | 270 | 210 | 70 | 0.44 | 166000 | 200 |
YDTB1409 | 25.6+/-4% | 13.9 | -20 +175 | 350 | 250 | 0.09+/-5% | 8.2 | 270 | 210 | 90 | 0.44 | 166000 | 200 |
YDTB1408 | 26.5+/-4% | 14.3 | -20 +175 | 350 | 250 | 0.08+/-5% | 8.2 | 270 | 210 | 100 | 0.44 | 166000 | 200 |
YDTB1306 | 25.1+/-4% | 13.8 | -20 +175 | 350 | 250 | 0.06+/-5% | 8.3 | 270 | 210 | 135 | 0.44 | 160000 | 150 |
YDTB1304(RF) | 24.7+/-4% | 13.0 | -20 +175 | 350 | 250 | 0.04+/-5% | 8.2 | 275 | 210 | 180 | 0.42 | 150000 | 150 |
YDTB1303(RS) | 24.7+/-4% | 13.0 | -20 +175 | 350 | 250 | 0.03+/-5% | 8.2 | 275 | 210 | 220 | 0.42 | 150000 | 150 |
YDTB1270 | 22.9+/-4% | 11.8 | -20 +380 | 450 | 350 | 0.70+/-4% | 8.1 | 235 | 220 | 13 | 0.46 | 150000 | 200 |
YDTB1070 | 18.8+/-4% | 10.8 | -20 +380 | 450 | 350 | 0.69+/-4% | 8.1 | 235 | 220 | 13 | 0.46 | 150000 | 200 |
YDTB1109 | 21.8+/-4% | 11.6 | -20 +380 | 400 | 250 | 0.09+/-5% | 8.2 | 235 | 220 | 88 | 0.46 | 138000 | 200 |
* Other non standard or grades produced,please consult us. | | | | | | | | | |
Specifications of bimetal strip:
Stable function
Over 2000 models
OEM, ODM is available
ISO90001 is approval
High quality, competitive price

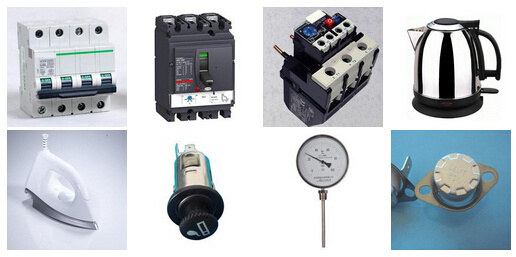

Application of bimetal strip:
different types breaker
Relay
Electric kettle
Bimetal strip thermometer, etc
Why choose us:
Reasonable price with high performance
Quick delivery time for orders
Free sample can be offered
Sinced in 1985, full experience
Contact details:
Website: www.yada-bimetal.com
Mob: 0086 18657717078
Welcome to purchase our bimetal strip!!!
