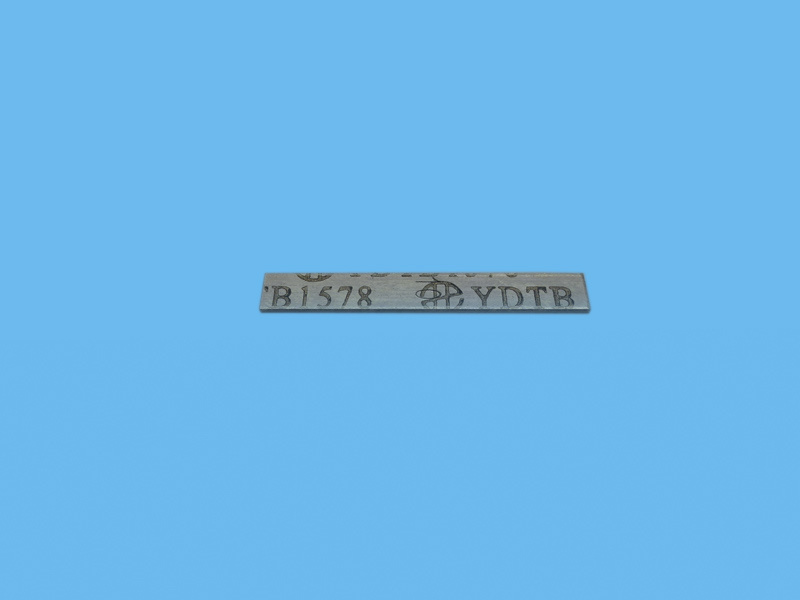

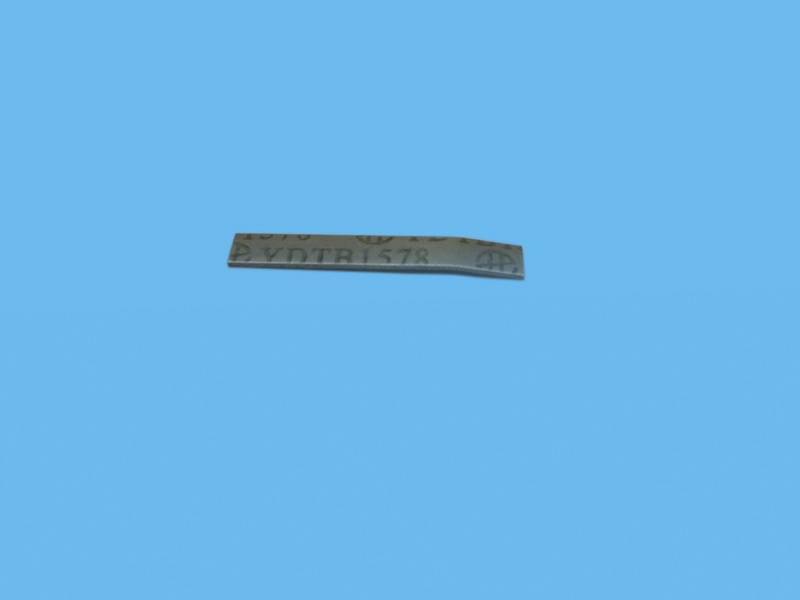

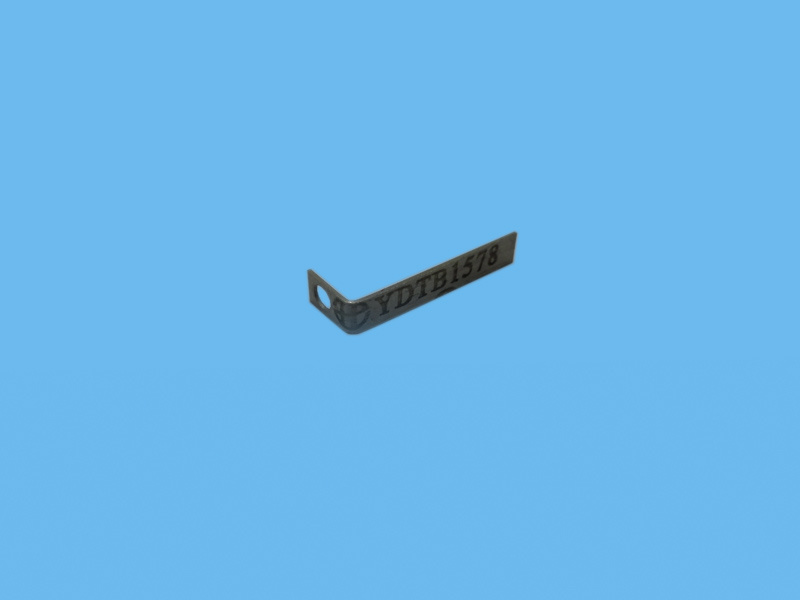

Thermostatic Bimetal Strip for Circuit Breakers/MCB

Prod Model:	YDTB1578
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Bimetal Strip
Application:	MCB/Breaker/Relay/Electric Kettle,etc
Model Number:	Ydtb1578
Thickness:	0.1/0.2/0.3/0.5/0.6mm,etc
Width:	7/9/12/24/34/36mm etc
Packaging Details:	Be Packed in Wooden Case
Delivery Detail:	10-20 Days
Place Of Origin:	Zhejiang, China

Product Description

Thermostatic bimetal are today widely used in control safety and thermal compensation system, due to their reliability, sturdiness and low cost. The widely range of YADA bimetals, manufactured to DIN standards, ASTM standards and Chinese GB standards, ensures a choice of products closely matched to different specific requirements. Moreover the tighter guarantees offered by YADA for both the physical properties and dimensional tolerances enable the bimetal to meet the increasingly stringent demands of modern industry.
Our company is a professional thermostatic bimetal manufacturer in China since in 1985, it is our pleasure to cooperate with you about the thermostatic bimetal, and hope can help your company to satisfied with the market and demand



We are not only professional, but also hold rich experience:
Varieties of products, a full series of thermostatic bimetals.
57 kinds of thermostatic bimetal grades.
656 kinds of thermostatic bimetal specifications.
2300 kinds of thermostatic bimetal elements.
12 major series of product application
OEM offered and customized you various specification
First-level production equipment and testing equipment
Professional technical personnel and skilled workers
Having all certificates, including IS09001 Quality System Certification



Bimetal specification:

YADA Type (YDTB)	Spec thermal curvature k 10-6	Spec thermal deflection a 10-6	Linearity range Acc. DIN1715 ºC	Upper application limit ºC	Stabilisation temperature ºC/2hours	Electrical resistvity at 20ºC  μΩ.m	Density at 20ºC g/cm3	Vickers hardness (HV) for standard reducation		Thermal conductivity at 20ºC W/m-k	Specific heat at 20ºC J/g-k	Modulus of elasticity at 20ºC N/mm2	Maximum admissible stress at 20ºC      σPerm N/mm2
								Active side	Passive side
YDTB20110	39.0+/-4%	20.8	-20 +200	350	250	1.10+/-4%	7.6	205	210	6	0.46	135000	200
YDTB14140	28.6+/-5%	15.5	-20 +200	350	250	1.40+/-5%	7.4	205	210	6	0.46	134000	150
YDTB15120	28.5+/-4%	15.3	-20 +200	350	250	1.20+/-4%	7.6	205	210	6	0.46	150000	200
YDTB60SP	38.5+/-4%	20.5	-20 +200	350	250	0.58+/-5%	7.8	205	210	12	0.46	135000	200
YDTB40SP	38.5+/-4%	20.5	-20 +200	350	250	0.40+/-5%	7.8	205	210	20	0.46	135000	200
YDTB25SP	38.5+/-4%	20.5	-20 +200	350	250	0.25+/-5%	7.8	205	210	30	0.46	135000	200
YDTB20SP	38.5+/-4%	20.5	-20 +200	350	250	0.208+/-7%	7.8	205	210	40	0.46	135000	200
YDTB15SP	38.2+/-4%	20.4	-20 +200	350	250	0.15+/-7%	7.8	205	210	54	0.46	135000	200
YDTB11SP	38.2+/-4%	20.4	-20 +200	350	250	0.115+/-7%	7.9	205	210	71	0.46	135000	200
YDTB8SP	38.0+/-4%	20.2	-20 +200	350	250	0.082+/-9%	8.0	205	210	104	0.46	135000	200
YDTB5SP	33.8+/-4%	17.9	-20 +200	350	250	0.048+/-9%	8.2	205	210	155	0.46	135000	150
YDTB1578	28.5+/-4%	15.0	-20 +200	450	350	0.78+/-5%	8.1	235	210	13	0.46	170000	200
YDTB1480	28.1+/-4%	14.0	-20 +200	450	350	0.80+/-5%	8.2	235	210	12	0.46	170000	200
YDTB1455	26.1+/-4%	14.0	-20 +200	450	250	0.55+/-5%	8.2	235	210	16	0.46	170000	200
YDTB1440	27.6+/-4%	14.2	-20 +200	450	250	0.40+/-5%	8.3	235	210	20	0.46	170000	200
YDTB1430	27.2+/-4%	14.8	-20 +200	450	250	0.30+/-5%	8.3	235	210	23	0.46	170000	200
YDTB1425	26.1+/-4%	14.0	-20 +200	450	250	0.25+/-5%	8.3	235	210	28	0.44	170000	200
YDTB1415	26.9+/-4%	14.3	-20 +200	450	250	0.15+/-5%	8.3	235	210	55	0.45	170000	200
YDTB1411	26.1+/-4%	14.0	-20 +200	350	250	0.11+/-5%	8.2	270	210	70	0.44	166000	200
YDTB1409	25.6+/-4%	13.9	-20 +175	350	250	0.09+/-5%	8.2	270	210	90	0.44	166000	200
YDTB1408	26.5+/-4%	14.3	-20 +175	350	250	0.08+/-5%	8.2	270	210	100	0.44	166000	200
YDTB1306	25.1+/-4%	13.8	-20 +175	350	250	0.06+/-5%	8.3	270	210	135	0.44	160000	150
YDTB1304(RF)	24.7+/-4%	13.0	-20 +175	350	250	0.04+/-5%	8.2	275	210	180	0.42	150000	150
YDTB1303(RS)	24.7+/-4%	13.0	-20 +175	350	250	0.03+/-5%	8.2	275	210	220	0.42	150000	150
YDTB1270	22.9+/-4%	11.8	-20 +380	450	350	0.70+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1070	18.8+/-4%	10.8	-20 +380	450	350	0.69+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1109	21.8+/-4%	11.6	-20 +380	400	250	0.09+/-5%	8.2	235	220	88	0.46	138000	200

Application of bimetal strip:
different types breaker
Relay
Electric kettle
Bimetal strip thermometer, etc
