Thql Tql Black Mini Circuit Breakers/Miniature Circuit Breaker (MCB, CB)

Name: Thql Tql Black Mini Circuit Breakers/Miniature Circuit Breaker (MCB, CB)
Brand: all-electronics-online.com
SKU: 756883235
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 2.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications
1.Black THQL mini circuit breaker
2. IEC60898,GB10963
3. other 1/2 size
4. Short delivery time

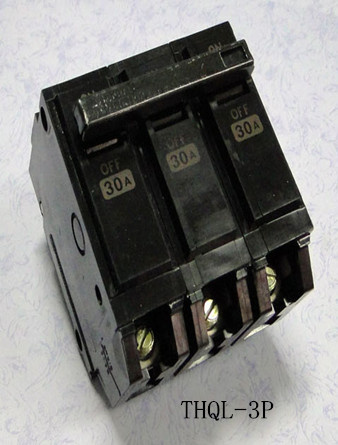

THQL TQL MCB mini circuit breaker
It is mainly suitable for overload and short circuit protection on within the circuit of AC 50/60Hz,rated voltage of single pole 220V and double pole up to 415V and rated current up to 40A.It can also be used for an unfrequent switch over of the circuit and illumination under normal condition.
Specification:

Standard		IEC60898,BS3781-1
Number of poles		1P,2P,3P
Rated current(In)		6,10,16,20,25,32,40
Rated voltage(Un)		AC240/415V
Rated frequency		50/60Hz
Tripping curve		B,C,D
Release action characteristics	Time delay	1.13In>1h Non-trip
		1.45In<1h trip
		2.55In 1s~60S trip
	Instantaneous(Curve C)	5In >0.1s Non-trip
	Instantaneous(Curve C)	10In<0.1s trip
Magnetic releases operate		B curve:between 3 and 5In
		C curve :between 5 and 10In
		D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)		3000A
Endurance		>2500
Circumstance temperature		-5~+40
Electrical life		>6000times
Mechanical life		20000 times
Tropical ration		Treatmen 2(RH95%,at 55°C)
Protection degree		IP20

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	1
Certification:	CE
Operation:	Energy-storage Type
Installation:	Insert
Arc-extinguishing Medium:	Oil-immersed Type
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
