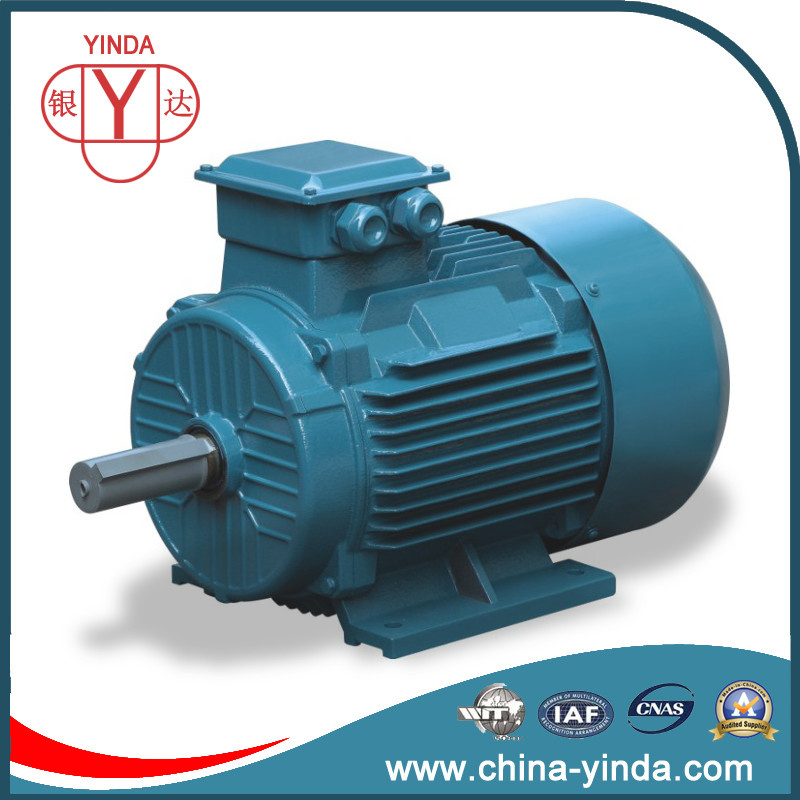

Three Phase AC Motor - IEC- TEFC (IP54)- Cast Iron Frame

Standard features:

Three-phase, multivoltage, IP54, TEFC
High efficiency - complying with IE2 efficiency levels according to IEC60034-30
Output: 0,55 up to 200kW
Number of Poles: 2, 4, 6 and 8
Frames: 80 up to 315
Mounting: B3
Voltage: 220-240/380-415V / 380-415/660V
Class "F" insulation (ΔT = 80K)
Continuous duty: S1
Ambient temperature: 40 °C, at 1000 m.a.s.l
Squirrel cage rotor / Aluminium die cast
V'Ring seal for frames 63 to 200L and for frames 225S/M to 355A/B
Color: RAL 5010 - Blue

*For additional details about Inverter operation, please contact our technical support.

Optical features:

Frequency: 60 Hz
Other voltages
Winding protections with PTC, PT100 and KTY84-130 as option
Double shaft end
Aluminum fram 63 up to 132
Encoder

More options available, on request.

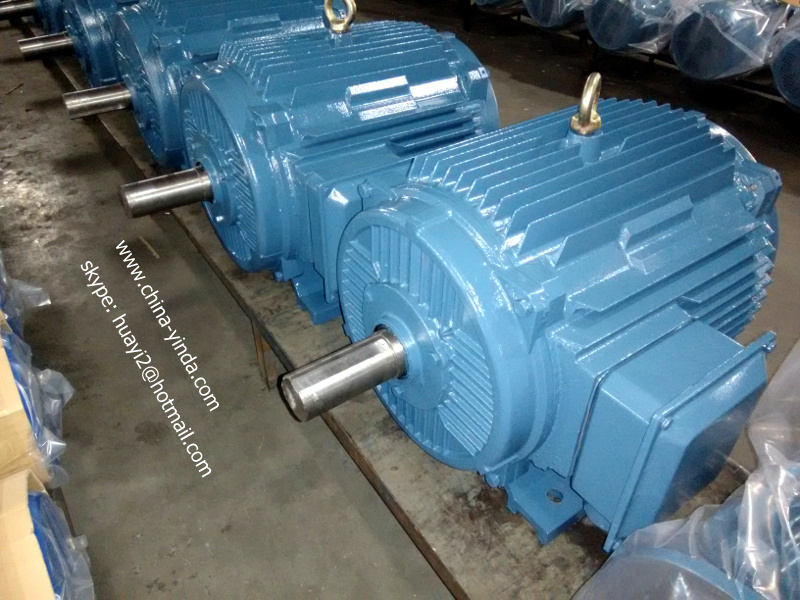

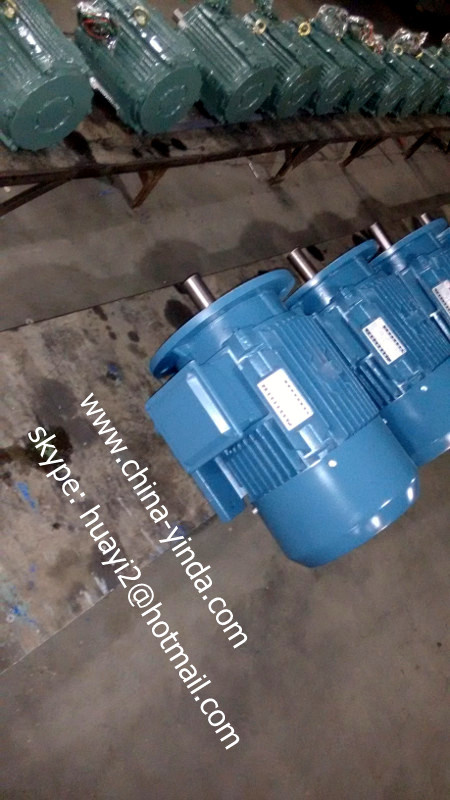

Photos:

Technical Data

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts		Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
631-2	0.18	0.3	380	50	2800	65	0.8	0.5	6	2.2	2.2	61
632-2	0.25	0.3	380	50	2800	68	0.81	0.7	6	2.2	2.2	61
711-2	0.37	0.5	380	50	2800	70	0.81	1	6	2.2	2.2	64
712-2	0.55	0.8	380	50	2800	73	0.82	1.4	6	2.2	2.3	64
801-2	0.75	1	380	50	2825	75	0.83	1.8	6	2.2	2.3	67
802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
100L-2	3	4	380	50	2880	82.6	0.87	6.14	8	2.2	2.3	76
112M-2	4	5.5	380	50	2890	84.2	0.88	7.83	8	2.2	2.3	77
132S1-2	5.5	7.5	380	50	2900	85.7	0.88	10.7	8	2.2	2.3	80
132S2-2	7.5	10	380	50	2900	87	0.88	14.2	8	2.2	2.3	80
160M1-2	11	15	380	50	2930	88.4	0.89	20.9	8	2.2	2.3	86
160M-2	15	20	380	50	2930	89.4	0.89	27.9	8	2.2	2.3	86
160L-2	18.5	25	380	50	2930	90	0.9	33.9	8	2.2	2.3	86
180M-2	22	30	380	50	2940	90.5	0.9	40.5	8	2	2.3	89
200L1-2	30	40	380	50	2950	91.4	0.9	54.8	8	2	2.3	92
200L2-2	37	50	380	50	2950	92	0.9	66.6	8	2	2.3	92
225M-2	45	60	380	50	2970	92.5	0.9	81	8	2	2.3	92
250M-2	55	75	380	50	2970	93	0.9	99.6	8	2	2.3	93
280S-2	75	100	380	50	2970	93.6	0.9	133	8	2	2.3	94
280M-2	90	120	380	50	2970	93.9	0.91	158	8	2	2.3	94
315S-2	110	150	380	50	2980	94	0.91	195	7	1.8	2.2	96
315M-2	132	180	380	50	2980	94.5	0.91	232	7	1.8	2.2	96
315L1-2	160	220	380	50	2980	94.6	0.92	280	7	1.8	2.2	99
315L2-2	200	270	380	50	2980	94.8	0.92	348	7	1.8	2.2	99
631-4	0.12	0.2	380	50	1400	57	0.72	0.4	4	2.1	2.2	52
632-4	0.18	0.3	380	50	1400	60	0.73	0.6	4	2.1	2.2	52
711-4	0.25	0.3	380	50	1400	65	0.74	0.8	5	2.1	2.2	55
712-4	0.37	0.5	380	50	1400	67	0.75	1.1	5	2.1	2.2	55
801-4	0.55	0.8	380	50	1390	71	0.75	1.6	5	2.4	2.3	58
802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
100L1-4	2.2	3	380	50	1420	81	0.81	5.05	7	2.3	2.3	64
100L2-4	3	4	380	50	1420	82.6	0.82	6.64	7	2.3	2.3	64
112M-4	4	5.5	380	50	1440	84.2	0.82	8.62	7	2.3	2.3	65
132S-4	5.5	7.5	380	50	1440	85.7	0.83	11.5	7	2.3	2.3	71
132M-4	7.5	10	380	50	1440	87	0.84	15.3	7	2.3	2.3	71
160M-4	11	15	380	50	1460	88.4	0.84	22.2	7	2.2	2.3	75
160L-4	15	20	380	50	1460	89.4	0.85	29.8	8	2.2	2.3	75
180M-4	18.5	25	380	50	1470	90	0.86	36.1	8	2.2	2.3	76
180L-4	22	30	380	50	1470	90.5	0.86	42.6	8	2.2	2.3	76
200L-4	30	40	380	50	1480	91.4	0.86	57.2	7	2.2	2.3	79
225S-4	37	50	380	50	1480	92	0.87	69.6	7	2.2	2.3	81
225M-4	45	60	380	50	1480	92.5	0.87	84	7	2.2	2.3	81
250M-4	55	75	380	50	1480	93	0.87	103	7	2.2	2.3	83
280S-4	75	100	380	50	1480	93.6	0.87	138	7	2.2	2.3	86
280M-4	90	120	380	50	1485	93.9	0.87	166	7	2.2	2.3	86
315S-4	110	150	380	50	1485	94.5	0.88	200	7	2.1	2.2	93
315M-4	132	180	380	50	1485	94.8	0.88	239	7	2.1	2.2	93
315L1-4	160	220	380	50	1485	94.9	0.89	288	7	2.1	2.2	97
315L2-4	200	270	380	50	1485	94.9	0.89	359	7	2.1	2.2	97
711-6	0.18	0.3	380	50	900	56	0.66	0.8	4	1.9	2	52
712-6	0.25	0.3	380	50	900	59	0.68	0.9	4	1.9	2	52
801-6	0.37	0.5	380	50	900	62	0.7	1.3	5	1.9	2	54
802-6	0.55	0.8	380	50	900	65	0.72	1.8	5	1.9	2.1	54
90S-6	0.75	1	380	50	910	69	0.72	2.3	6	2	2.1	57
90L-6	1.1	1.5	380	50	910	72	0.73	3.2	6	2	2.1	57
100L-6	1.5	2	380	50	940	76	0.75	3.9	6	2	2.1	61
112M-6	2.2	3	380	50	940	79	0.76	5.6	7	2	2.1	65
132S-6	3	4	380	50	960	81	0.76	7.4	7	2.1	2.1	69
132M1-6	4	5.5	380	50	960	82	0.76	9.9	7	2.1	2.1	69
132M2-6	5.5	7.5	380	50	960	84	0.77	12.9	7	2.1	2.1	69
160M-6	7.5	10	380	50	970	86	0.77	16.9	7	2	2.1	73
160L-6	11	15	380	50	970	87.5	0.78	24	7	2	2.1	73
180L-6	15	20	380	50	970	89	0.81	32	7	2	2.1	73
200L1-6	18	25	380	50	970	90	0.81	39	7	2.1	2.1	76
200L2-6	22	30	380	50	970	90	0.83	45	7	2.1	2.1	76
225M-6	30	40	380	50	980	91.5	0.84	59	7	2	2.1	76
250M-6	37	50	380	50	980	92	0.86	71	7	2.1	2.1	78
280S-6	45	60	380	50	980	92.5	0.86	86	7	2.1	2	80
280M-6	55	75	380	50	980	92.8	0.86	105	7	2.1	2	80
315S-6	75	100	380	50	980	93.5	0.86	142	7	2	2	85
315M-6	90	120	380	50	985	93.8	0.86	170	7	2	2	85
315L1-6	110	150	380	50	985	94	0.86	207	7	2	2	85
315L2-6	132	180	380	50	985	94.2	0.87	245	7	2	2	85
801-8	0.18	0.3	380	50	690	51	0.61	0.9	3	1.8	1.9	52
802-8	0.25	0.3	380	50	690	54	0.61	1.2	3	1.8	1.9	52
90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
90L-8	0.55	0.8	380	50	690	63	0.61	2.2	4	1.8	2	56
100L1-8	0.75	1	380	50	700	71	0.67	2.4	4	1.8	2	59
100L2-8	1.1	1.5	380	50	700	73	0.69	3.3	5	1.8	2	59
112M-8	1.5	2	380	50	700	75	0.69	4.4	5	1.8	2	61
132S-8	2.2	3	380	50	710	78	0.71	6	6	1.8	2	64
132M-8	3	4	380	50	710	79	0.73	7.9	6	1.8	2	64
160M1-8	4	5.5	380	50	720	81	0.73	10.3	6	2	2	68
160M2-8	5.5	7.5	380	50	720	83	0.74	13.6	6	2	2	68
160L-8	7.5	10	380	50	720	85.5	0.75	17.8	6	2	2	68
180L-8	11	15	380	50	720	87.5	0.76	24.9	7	2	2	70
200L-8	15	20	380	50	730	88	0.76	34	7	2	2	73
225S-8	18.5	25	380	50	730	90	0.76	41	7	1.9	2	73
225M-8	22	30	380	50	730	90.5	0.78	47	7	1.9	2	73
250M-8	30	40	380	50	730	91	0.79	63	7	1.9	2	75
280S-8	37	50	380	50	730	91.5	0.79	78	7	1.9	2	76
280M-8	45	60	380	50	740	92	0.79	94	7	1.9	2	76
315S-8	55	75	380	50	740	92.8	0.81	111	7	1.8	2	82
315M-8	75	100	380	50	740	93	0.81	151	7	1.8	2	82
315L1-8	90	120	380	50	740	93.8	0.82	178	7	1.8	2	82
315L2-8	110	150	380	50	740	94	0.82	217	6	1.8	2	82

Prod Model:	YE2-80M-4, YE2-315L-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:	0.55-200kw
Frame Material:	Cast Iron (80-315), Aluminum (80-132)
Standard Color:	Ral 5010
Voltage:	220/380/440/660
Frequency:	50/60Hz
Mounting Position:	B3/B5/B35/B14/B34
Protection Class:	IP54
Insulation Grade:	F
Cooling Method:	IC411
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting

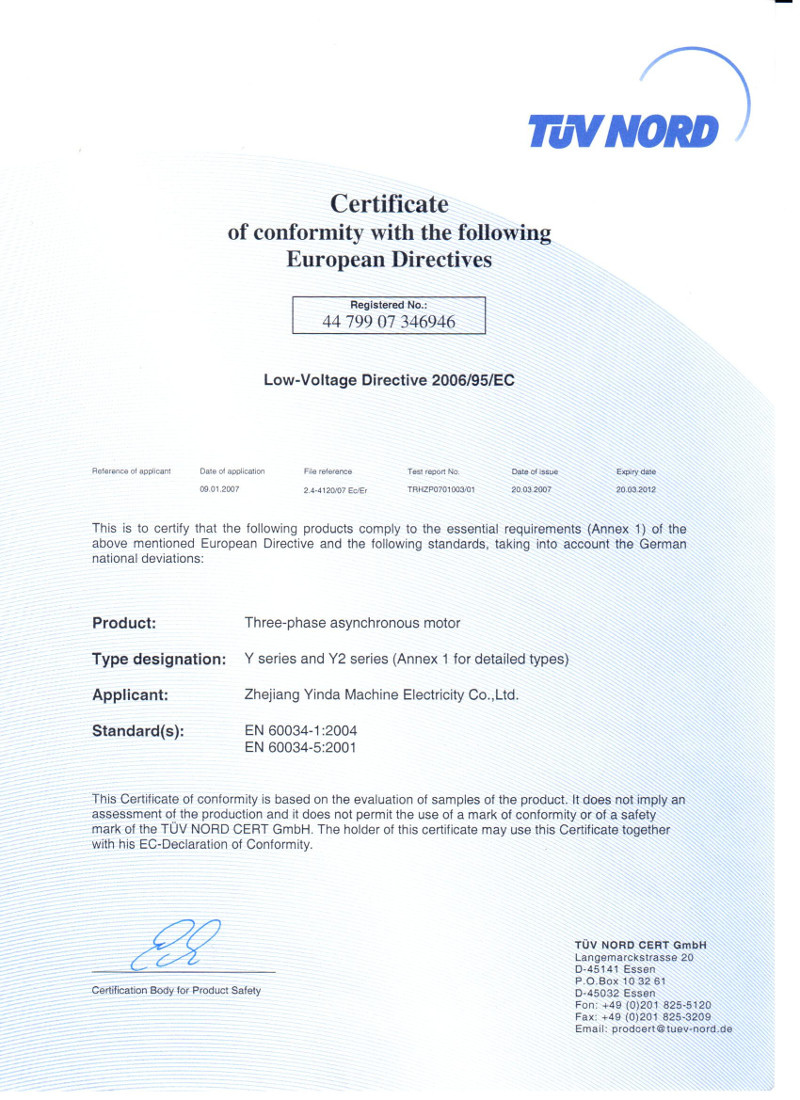

Certification:	CE
