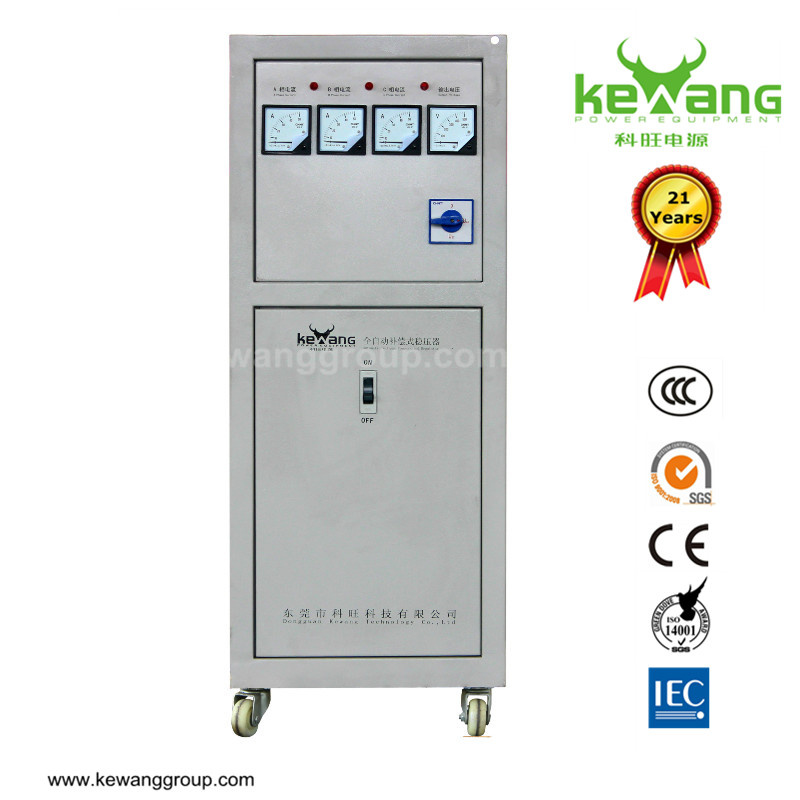

Three Phase Automatic Voltage Regulator (SBW-6kVA)

Prod Model:	regulator
Capacity: 6-60kVA:	Output Voltage: 380V/400V
Frequency: 50Hz/60Hz:	Response Time: <0.5
Effeiciency: >96%:	Phase :3phase
Waveform Distortion: <1%:	Ambient Temp: -10c~+40c
Relative Humidity: <90%:	Industry Power Voltage:2000V/60s
Current Type:	AC
Phase:	Three Phase
Usage:	SBW
Frequency:	Low Frequency
Brand:	Kewang

Product Description

Three Phase Automatic Voltage Regulator (SBW-6kVA)


Working principle
Advanced technology of voltage compensation adopted,Automatic voltage compensated regulator series samplings its output voltage via control system according to preset voltage precision to stabilize output voltage;

Application
Apply to varied precision machines and instruments, test equipments electric equipments, lightings, prodution lines, schools,hotels,hospitals,railwaws, science R&D institutions, and so on.

Main features
Large capacity;
High efficiency;
Infinitely variable voltage regulation;
No additional waveform distortion;
Simple operation;

PARAMETERS

Input voltage	Three-phase 323-437V		Single phase 187-253V
Output voltage	Three-phase 380V		Single phase 220V
Voltage precision	±2~5
Efficiency	>=96%
Response Time	<=0.5S
Frequency	50Hz/60Hz
Waveform Distortion	<1%
Ambient Temp	(-10ºC~+40ºC)
Relative Humidity	<90%
Dielectric Strength	2000VMin	1500V Min
Insulation Resistance	>5ΜΩ

SPECIFICATION(ONLY FOR REFERENCE)

Model	Capacity(KVA)	Phase	Dimension(W×D×H)mm	N.W(kg)	Cabinet
SBW-6	6	3	430×480×760	48	1
SBW-10	10	3	430×480×760	65	1
SBW-15	15	3	430×570×760	75	1
SBW-20	20	3	450×500×1100	130	1
SBW-30	30	3	450×500×1100	150	1
SBW-45	45	3	450×550×1260	163	1
SBW-60	60	3	450×550×1260	192	1
DBW-3	3	1			1
DBW-5	5	1			1
DBW-10	10	1			1
DBW-15	15	1			1
DBW-20	20	1			1
DBW-30	30	1			1

BRIEF VIEW OF KEWANG GROUP


Our Services
1.Quick response in before sales period help you got order
 2.Excellent service in production time let you know each step we made
 3.Reliable quality solve you aftersale headache

FAQ
Q1: What is the Guarantee?
A1: 12 months (for free) from the date of B/L.
NOTE:
1. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95%
    (some series of them reaches 95%), please don't let them work overload!
2. Please make sure that all the electric wires are connected correctly
     according to the electric diagram!
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit bigger.
Q3: For your products, can we take our Favourite Colours?
A3: Yes, no problem. But we need certain quantity , all colors need to be debugged.
Q4: Is OEM/ODM available?
A4: Yes, it is! Our products can be Customized. We have 20 senior engineers in our R&D Dept.,  we design and produce all kinds of Automatic Voltage Regulators/Stabilizers ,transformers according to our customers' specific requirements.
Q5: How about the Packing?
A5:All exported goods are packed with compsite board cartons , so that we could better protect our roducts and also easier for being piled up
Q6: How about the Delivery Time?
A6: Generally speaking, it takes us 2 weeks to produce the goods after deposit or L/C.
Q7: What is your monthly output?
A7: 6000pcs
Q8: What is the MOQ?
A8: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 5 sets. For the big capacity products, it is 1 set.
Q9: How about the Delivery Terms?
 A9: By sea or by air or by road, FOB ,CFR, CIF, etc. any is acceptable to us.
  Besides, some items can be sent by international express, such as DHL,TNT,UPS,EMS, Fedex, etc.
Q10: Can you offer Form A or Form E or C/O ?
  A10: Yes, no problem, we can apply for it from our local government.
