Product Description
1)ISO9001, RoHS
2)As manufacturer, have high quality low price
3)15 years Professional Technical
4)warranty period: 18months
5)good after-sale service
Specifications
VRSM=VRRM+200V
Unless specified otherwise VFM,
Viso are measured values at. Other
Parameters in the form are measured
Values at Tjm.
MDS30A MDS60A MDS100A MDS75A
MDS150A MDS200A MDS250A MDS300A
MDS00A MDS50A MDS00A MDS00A MDS00A MDS00

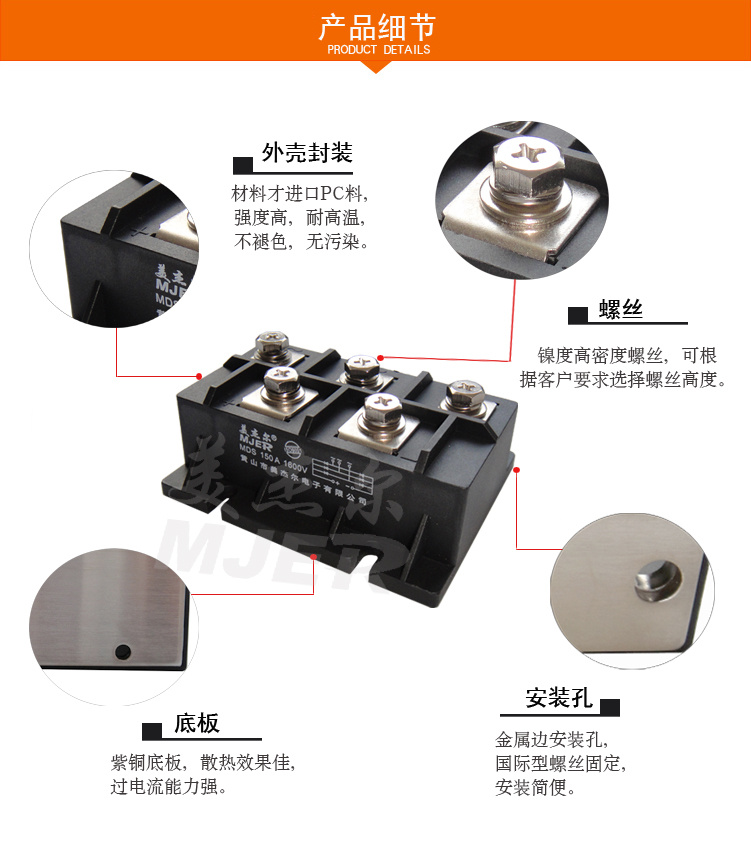

Features
Electrically-isolated chip and baseboard AC 2500V
Sealing package according to international Standard
Welding technique under the protection of Vacuum and hydrogen gas
Convenient installation, use and maintenance Compact and light weight
Max. Work junction temperature up to 150º C
Low forward voltage drop
Typical Applications
DC power supply for instrument equipment
Input of PWM frequency converter
Rectifying power supply
Excitation power supply for DC motor
Input of switch powe supply and auxiliary
Inverter current
DC power supply for current charge

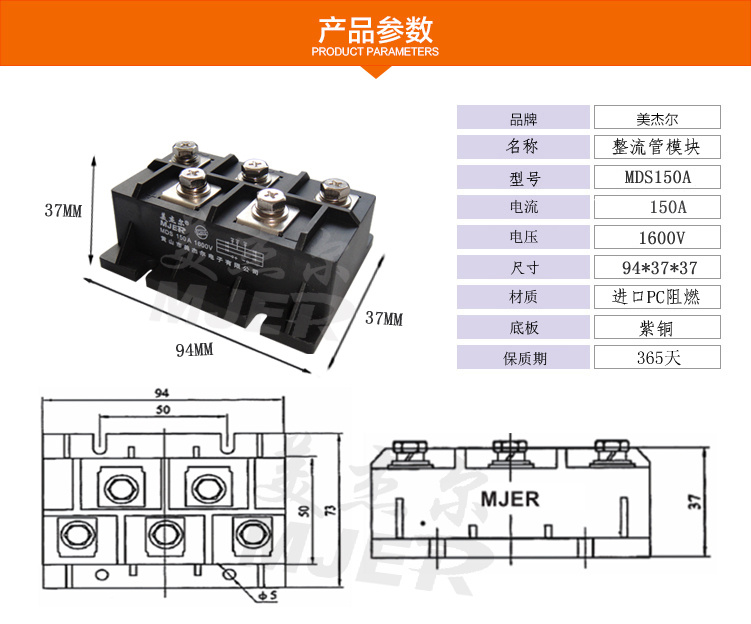

| Type | Id | IF(AV) | Tc | VRRM | IRRM | VTM/ITM | Tjm | Viso | Outline |
| | A | A | º C | V | mA | V/A | | V(AC) |
102A 102A-1 |
| MDS30 | 30 | 10 | 100 | 600~2000 | 8 | 1.45/30 | 150 | 2500 |
| MDS60 | 60 | 20 | 100 | 600~2000 | 8 | 1.45/60 | 150 | 2500 | 102A 102A-1 |
| MDS100 | 100 | 35 | 100 | 600~2000 | 10 | 1.45/100 | 150 | 2500 | 102A 102A-1 |
| MDS150 | 150 | 50 | 100 | 600~2000 | 10 | 1.50/150 | 150 | 2500 | 103A 103A-1 |
| MDS200 | 200 | 68 | 100 | 600~2000 | 10 | 1.50/200 | 150 | 2500 | 103A 103A-1 |
| MDS300 | 300 | 100 | 100 | 600~2000 | 10 | 1.50/300 | 150 | 2500 | 104A |
| MDS400 | 400 | 135 | 100 | 600~2000 | 10 | 1.50/400 | 150 | 2500 | 104A |
| MDS500 | 500 | 168 | 100 | 600~2000 | 10 | 1.50/500 | 150 | 2500 | 105A |
| MDS600 | 600 | 200 | 100 | 600~2000 | 10 | 1.50/600 | 150 | 2500 | 105A |
| MDS800 | 800 | 270 | 100 | 600~2000 | 10 | 1.50/800 | 150 | 2500 | 105A |
| MDS1000 | 1000 | 330 | 100 | 600~2000 | 10 | 1.50/1000 | 150 | 2500 | 105A |
