Three phase current transformer D363 50-600A 3 in 1 combined Cts

D363 & D364 range of current transformers are combination designed 3 CT in 1, save more space comparing general unit CT,

suitable for primarycurrent 75A to 600A, supporting the use of molded case circuit breaker according to

the rated current size.

Features:

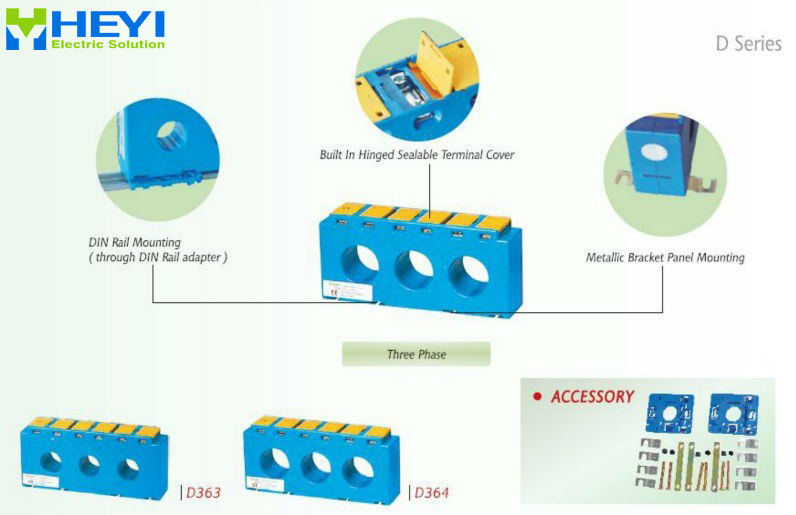

1:Three built in fixing methods: Panel/Din Rail/Busbar

2:Built in hinged terminal cover
3:Perfect matching with MCCB, save more space

4:Primary current from 30A to 600A

Applications:

1: Current measurement, monitoring and protection for electrical wiring and equipment.

2: Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.

3: Current, power and energy monitoring device.
4: Relay protection device.

Technical Parameters

Electrical Parameter		Mechanical Parameter
Rated Frequency	50/60Hz	Rated Test Voltage	3KV AC (1 MIN)
Rated Input	75A-600A	Place of installation	Indoor
short-time thermal current (lth)	60lh	Class	0.5,0.2,0.5S,0.2S
Secondary	5A , 1A	Aititude	<1000m
Humidity	<80%	Ambient temperature	-5ºC~40ºC
Operating temperature	-10ºC~85ºC	Housing self-extingshing class	VO

Technical

Model	Ratio (A)	Rated power(VA)	Cable Dimension(mm)	voltage(V)	Frequency(HZ)
D-363	50/5A	1.5	3*30mm	720	50/60
	75/5A	1.5	3*30mm	720	50/60
	100/5A	1.5	3*30mm	720	50/60
	150/5A	2.5	3*30mm	720	50/60
	200/5A	3.75	3*30mm	720	50/60
	250/5A	5	3*30mm	720	50/60
	300/5A	5	3*30mm	720	50/60
	400/5A	5	3*30mm	720	50/60
	500/5A	5	3*30mm	720	50/60

Model	Ratio (A)	Rated power(VA)	Cable Dimension(mm)	voltage(V)	Frequency(HZ)
D-364	300/5A	1.5	3*40mm	720	50/60
	400/5A	1.5	3*40mm	720	50/60
	500/5A	1.5	3*40mm	720	50/60
	600/5A	2.5	3*40mm	720	50/60

STANDARD:

IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006

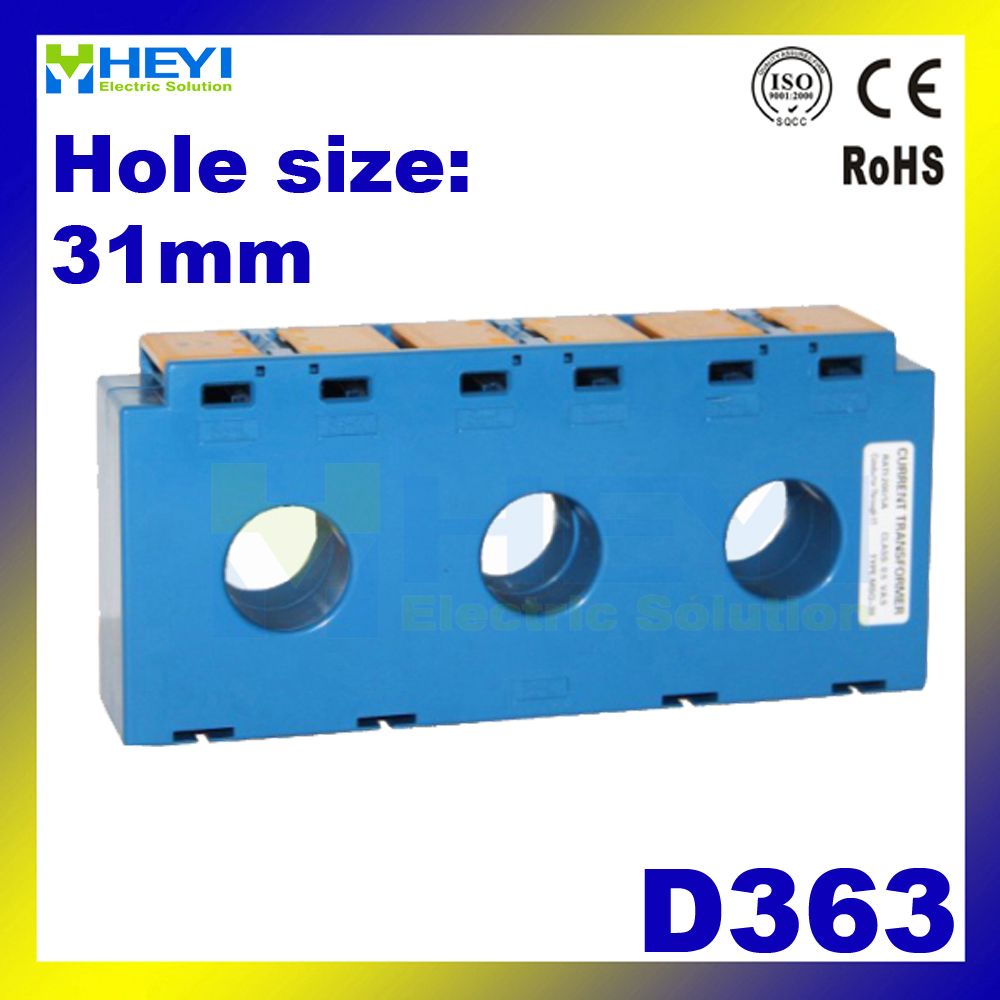

Prod Model:	D363
Window Size:	3@31 mm
Class:	0.5,1.0
Input:	50-600A
Output:	1A,5A
Burden:	1.5va,2.5va,3.75va,5va
Application:	Instrument
Type:	Current Transformer
Phase:	Three
