| Prod Model: |
CND310 |
| Mode: |
Intelligent Mode, AC Mode, DC Mode |
| Door: |
Glass Door |
| Power Factor: |
0.95 |
| Dynamic Transients: |
<5% |
| Penal Display: |
LCD |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Application: |
Power Plant |
| Brand: |
Consnant |
Product Description

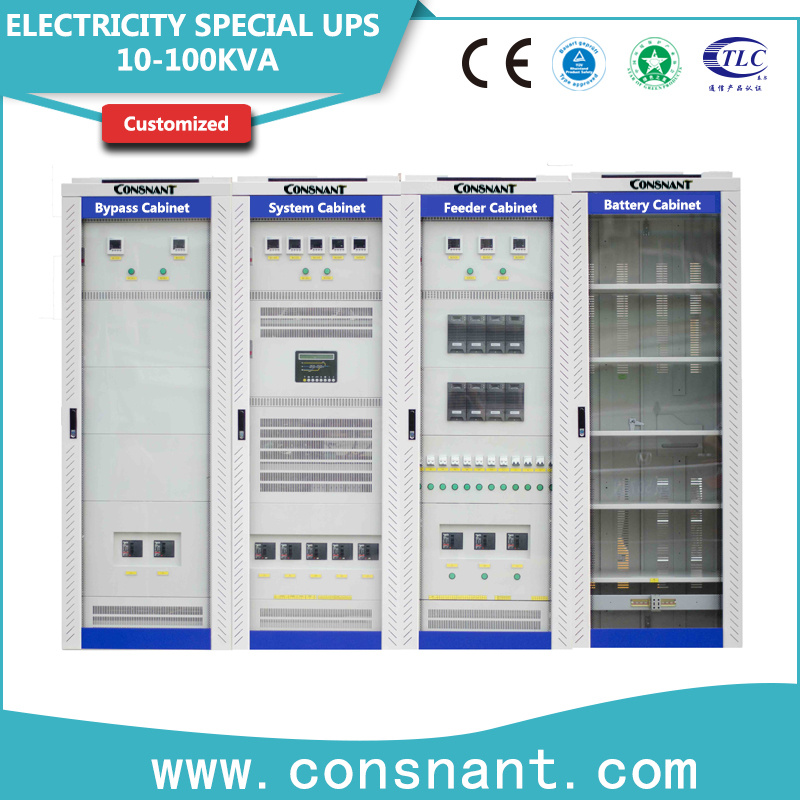

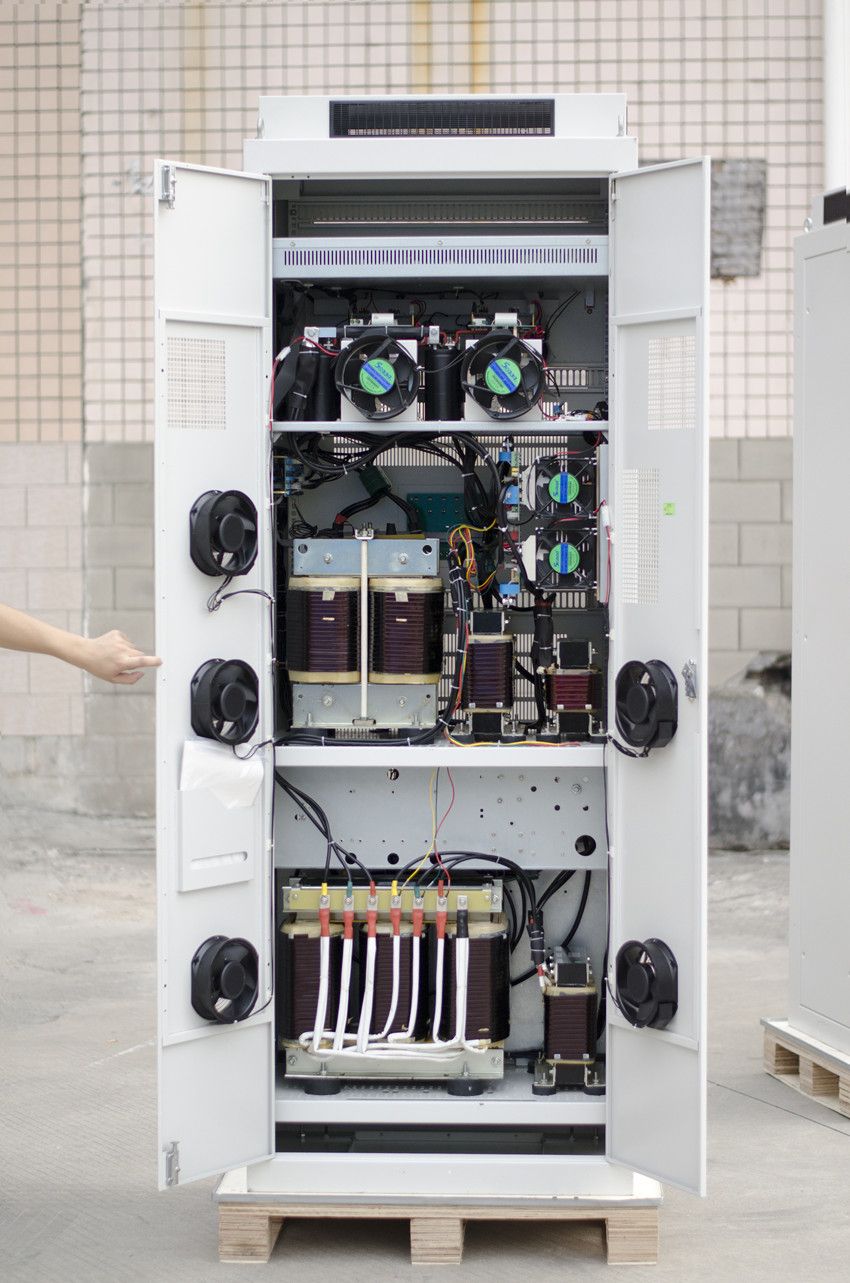

Electricity UPS System Special Cabinet Electricity UPS 10-100KVA
Key features:
- Adopt full digital control technology
- Intelligent detection and monitoring function
- Digitally control the static switch with zero switch
- Full isolation between input and output
- Super low output zero earth voltage
- DC UPS isolated with utility power completely
- Cubical design with power standard (customization)
- Multifunctional protection for overvoltage, under voltage, over current, short circuit and over temperature and so on.
- Large-screen LCD monitor with Chinese and English operation interface
- Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional)
- Static bypass has a strong anti-overload capability
Application:
Petroleum, chemical industry, gas and power station and so on.
Control system:
It adopts microprocessor bus control technology, three core processor controlling rectification, inversion and parallel connection respectively, to ensure the real-time control of the rectifier, inverter and static switch and the coordination of every power part, characterized by increased control of aging, higher reliability, enhance of the efficiency of the whole UPS system and the output technical parameters are better than that of the device with same capacity.
Rectifier:
6 pulse or 12 pulse fully controlled bridge (6 or 12 SCR) compose rectifier. Its function is to input AC 3880V to DC220V or so by rectification. "slope" start (soft start) is the control feature, which means output voltage of the rectifier increase from 0V to 220V within 10 second and has no impact on the power grid.
Inverter:
SPWM(sinusoidal pulse width modulation) , formed by 6 IBGT high power tubes, is composed of full-bridge-control.
Large Capacity of Overload of the UPS Inverter
110% load --60'
125% load --10'
150% load --1'
200% single phase load --30"
Good Capacity of Resistance to Output Short Circuit Current Limiting and Period Load Impact
Static switch:
- Not sync automatically switch
- Optional bypass cabinet: Isolating transformer and the bypass voltage regulation
- Intelligent monitoring:Working status and data of UPS are transmitted to DCS system in real-time via RS232/RS485, passive contact and power transmitter, which finally realize Intelligent monitoring.
Unique option:
- SNMP card
- Dry contact card
- Signal transmitter
- Bypass isolation and voltage regulation
- Increase feeder circuit (standard for 8 loops)
- 12 pulse rectifier
- The appearance of special models(standard dimension:800×600×2260mm)
Our Service:
- 2% spares together with shipment for urgent issue.
- All of the necessary documents such as drawing, manual etc.
- We will provide the online service by mail
- We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.
- One year warranty
| CND310 10KVA-100KVA |
| Model Number | 10KVA 15KVA 20KVA 30KVA 40KVA 50KVA 60KVA 80KVA 100KVA |
| Rating capacity | 8KW 12KW 16KW 24KW 32KW 40KW 48KW 64KW 80KW |
| Rating voltage | 220VAC Single Phase(6-20KVA)/380VAC Three Phase |
| AC input |
| Voltage range | ±25% |
| Frequency range | 50/60Hz±10% |
| Soft start | 0-100% in 5" |
| Power factor | 0.95(with input filter) |
| Bypass input |
| Permitted voltage range | ±15% |
| Frequency range | 50/60Hz±5% |
| Output |
| Voltage accuracy | 220V±1%(steady load) 220V±3%( fluctuating load) |
| Permitted Frequency range | 50/60Hz±0.05Hz(powered by battery) |
| Power factor | 0.8 |
| Waveform | Linearload<2%, non linear load<4% |
| Dynamic transients | <5% |
| Current crest ratio | 3:1 |
| Overload capacity | Normal in 110% load, 125% for 10min |
| Efficiency | Double switch:94%, ECO:98% |
| DC |
| Battery voltage | 220V; (10-40KVA 110V is optional) |
| Cutoff voltage | 185V |
| Maximum discharge current | 36A 55A 73A 109A 145A 181A 218A 291A 364A |
| Penal display |
| LCD | Chinese/English UPS status, operation instruction input voltage, output voltage, current, frequency, battery voltage, value of charge and discharge current, accident display, warning |
| Environment | |
| Temperatyre | 0ºC-40 ºC |
| Humidity | 0-95%(no condensing) |
| Storage temperature | -25 ºC-55 ºC |
| Altitude | <1500m |
| Physical features |
| Weight(KG) | Net | 230 258 350 400 480 580 650 900 950 |
| Gross | 250 285 380 425 500 600 675 925 988 |
| Domension(W×D×Hmm) | 800×600×2260 | 800×800×2260 | 800×1200×2260 |
| Optional | RS485/SNMP/Harmonic compensation cabinet/Input and output isolation cabinet/Ligh protection device/Bypass stablelized cabinet/Customized appearannce and size |
Note:Product specifications are subject to change without further notice.
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.
We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
