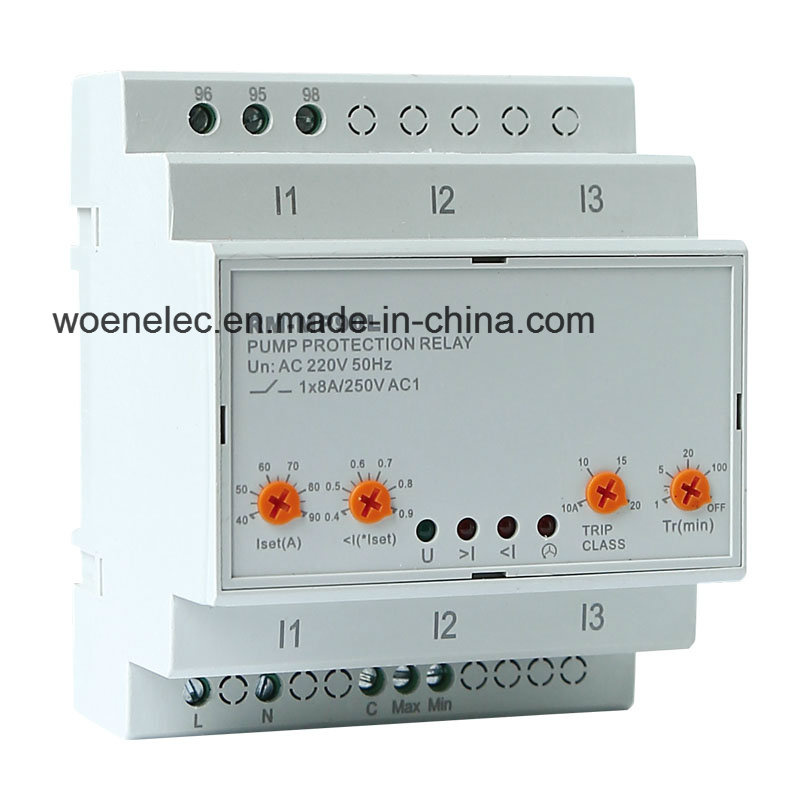

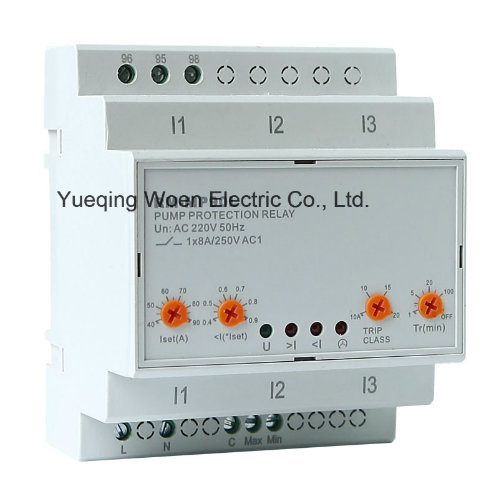

Three Phase Pump Protection Relay (with level control function)

Name: Three Phase Pump Protection Relay (with level control function)
Brand: all-electronics-online.com
SKU: 714327502
Availability: InStock
Rating: 4.9 (118 reviews)

Price:	US $ 14/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Introduction
The relay can protect pump(motor) against dry running and cavitation by monitoring undercurrent(running without load).
With level sensor, It will have liquid level control function

Features
1. Microprocessor control technology
2. Overload and undercurrent
3. Trip class adjustable
4. Auto-reset delay adjustable
5. LED indication for power supply and relay status
6. Din-rail mounting

Technical data

Supply terminals	L,N
Rated supply voltage	AC 220V
Rated frequency	50Hz
Current actuation threshold	7-19A; 18-44A; 40-90A
Undercurrent setting	(0.4-0.9)x overload setting value
Trip class	10A-10-15-20
Auto-reset delay	1-100min/OFF
Undercurrent trip delay	3s
Asymmetry trip value	>40%
Asymmetry trip delay	3s
Phase failure trip delay	1.5s
Output contact	1C/O
Current rating	8A/250V AC1
Contact capacity	AC-15: 2A
Measurement error	1%
Insulation voltage	250V
Max. fuse ratings	Fast-acting 5A
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Prod Model:	PLR-1L
