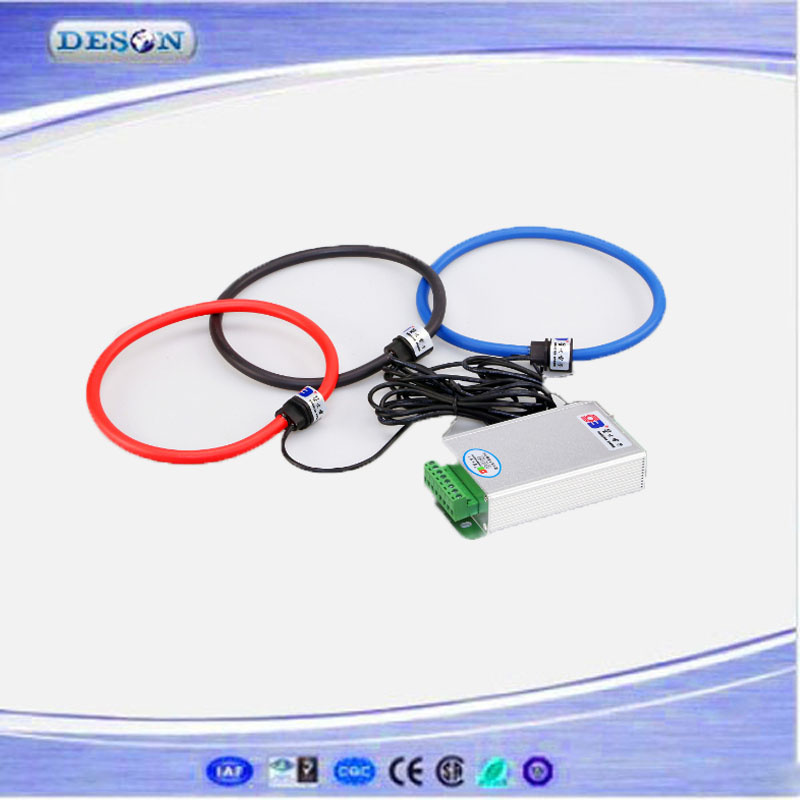

Three Phase Rogowski Coil Current Transformer

Name: Three Phase Rogowski Coil Current Transformer
Brand: all-electronics-online.com
SKU: 791866885
Availability: InStock
Rating: 4.4 (105 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Three Phase Rogowski Coil Current Transformer

Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Current Range: 10A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20ºC to +60ºC
Leads: Shielded cable, or as per customer need

Rated current (rms)	10A-100KA
Output	mV (without integrator)
Output	0-0.333V AC / 0-5V AC(with integrator)
Power supply	9V
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3500V
Operating temperature	-25ºC-+70ºC
Frequency	1Hz-1MHz
Accuracy	±1%

Contact Informations

DESON ELECTRIC GROUP CO.,LTD.
Joe Yang / Sales Mamager
XIRENDANG Industrial Zone , YueQing , WenZhou , ZheJiang , P.R . Of China 325604
Phone : +86 577 61609710 Fax : +86 577 61713067
Mobile : +86 13868793667 Website : www.desongroup.com

Prod Model:	DS
Current:	10A-100ka
Output:	0-0.333V AC / 0-5V AC
Power Supply:	5-24VDC
Coil Length:	20-200cm
Isolation Voltage:	3500V
Frequency:	1Hz-1MHz
Application:	Rogowski Coil
IP Rating:	Rogowski Coil
