Three-Phase Sewing Machine Motor Price

Three-phase sewing machine motor price
Brief Induction:

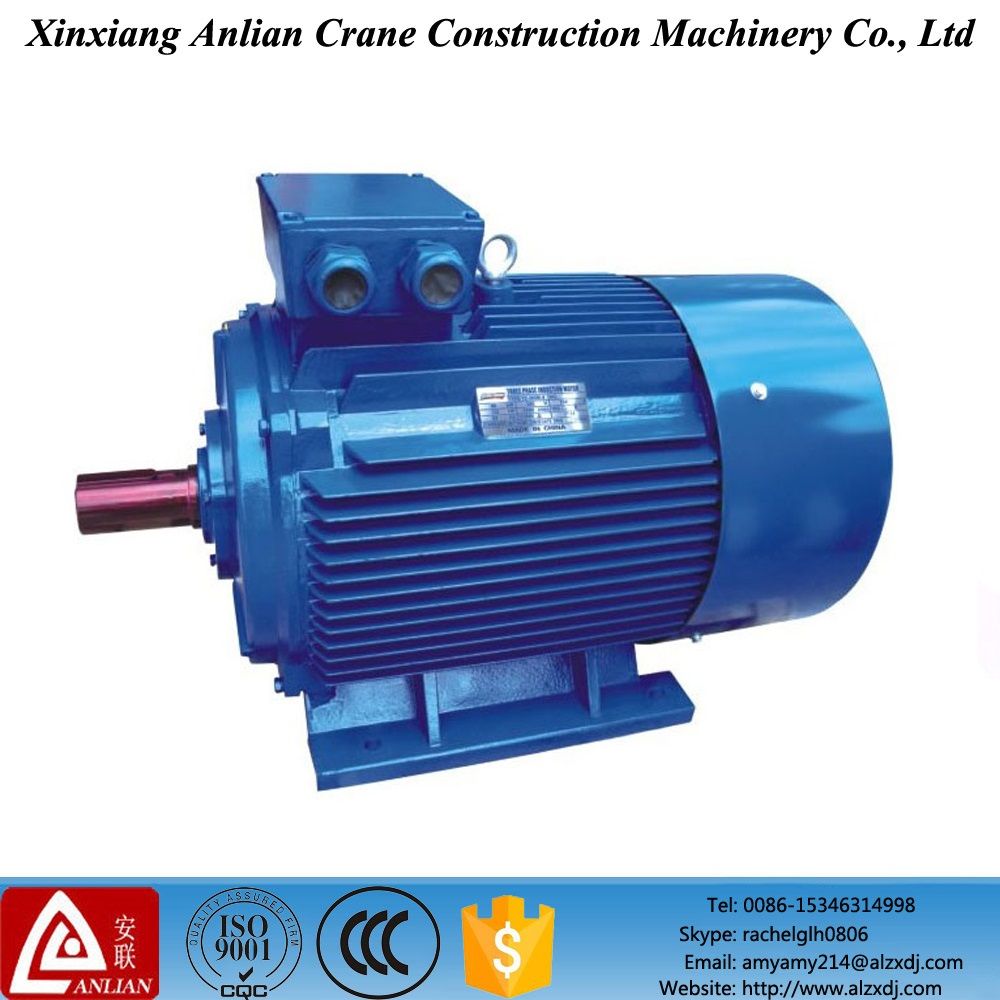

Y series three phase electric motor electric motor is a kind of totally enclosed fan-cooled squirrel cage induction motor, it is the first unified design of motor in China.
Y series electric motors are available from size 80 to size 315, with protection IP44, insulation class B, also can be upgraded to protection IP54 as well as insulation class F, while dimensions and rated out put of Y series motors are in conformity with international standard IEC 60072-1:1991.
Y series electric motor have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc.
Y series electric motor 15hp are widely used as drive mechanism of various machineries, such as fans, pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc.
Features:
1, Cast iron housing (frame), end shields & terminal box;
2, Motors are made to heavy duty service factors;
3, Vacuum impregnated windings;
4, High performance and efficiency;
5, Available size:   H80 ~ H315, with 2/4/6/8/10 poles;
6, Rated output:    0.55KW ~ 200KW (0.75HP ~ 270HP) ;
7, Mounting arrangements: B3, B5, B35;
8, Mounting dimensions according to IEC60072-1: 1991;

Operating Conditions:

Ambient temperature: -15C~40C
Altitude: Up to 1000 meters
Rated voltage: 380V, 400V, 415V
Rated frequency: 50Hz, 60Hz
Connection: Star-connection for motors up to 3KW
                    Delta-connection for motors 4KW and up
Duty: S1 (continuous)
Protection: IP44 / IP54
Insulation class: B / F
Cooling method: IC411

Technical Data



Model No.	Rated Power		Current(A)	Speed(r/min)	EFF.(%)	Power Factor    (Cosφ)	LRT/FLT	LRC/FLC	POT/FLT
	KW	HP
380V 50Hz Synchronous Speed 3000r/min (2Pole)
Y801-2	0.75	1	1.8	2830	75	0.84	2.2	7	2.3
Y802-2	1.1	1.5	2.5	2830	77	0.86	2.2	7	2.3
Y90S-2	1.5	2	3.4	2840	78	0.85	2.2	7	2.3
Y90L-2	2.2	3	4.8	2840	80.5	0.86	2.2	7	2.3
Y100L-2	3	4	6.4	2870	82	0.87	2.2	7	2.3
Y112M-2	4	5.5	8.1	2890	85.5	0.87	2.2	7	2.3
Y132S1-2	5.5	7.5	11	2900	85.5	0.88	2	7	2.3
Y132S2-2	7.5	10	15	2900	86.2	0.88	2	7	2.3
Y160M1-2	11	15	21.7	2930	87.2	0.88	2	7	2.3
Y160M2-2	15	20	29.3	2930	88.2	0.88	2	7	2.3
Y160L-2	18.5	25	35.4	2930	89	0.89	2	7	2.3
Y180M-2	22	30	42.1	2940	89	0.89	2	7	2.2
Y200L1-2	30	40	56.7	2950	90	0.89	2	7	2.2
Y200L-2	37	50	69.6	2950	90.5	0.89	2	7	2.2
Y225M-2	45	60	84.2	2970	91	0.89	2	7	2.2
Y250M-2	55	75	102.3	2970	91.5	0.89	2	7	2.2
Y280S-2	75	100	138.8	2970	92	0.89	2	7	2.2
Y280M-2	90	125	165.6	2970	92.5	0.89	2	7	2.2
Y315S-2	110	150	202.4	2980	92.5	0.89	1.8	6.8	2.2
Y315M-2	132	180	241.6	2980	93	0.89	1.8	6.8	2.2
Y315L1-2	160	220	291.3	2980	93.5	0.89	1.8	6.8	2.2
Y315L2-2	200	270	364.2	2980	93.5	0.89	1.8	6.8	2.2
50Hz Synchronous Speed 1500r/min (4Pole)
Y801-4	0.55	0.75	1.5	1390	73	0.76	2.4	6.5	2.3
Y802-4	0.75	1	2	1390	74.5	0.76	2.3	6.5	2.3
Y90S-4	1.1	1.5	2.7	1400	78	0.78	2.3	6.5	2.3
Y90L-4	1.5	2	3.6	1400	79	0.79	2.3	6.5	2.3
Y100L1-4	2.2	3	5	1430	81	0.82	2.2	7	2.3
Y100L2-4	3	4	6.8	1430	82.5	0.81	2.2	7	2.3
Y112M-4	4	5.5	8.7	1440	84.5	0.82	2.2	7	2.3
Y132S-4	5.5	7.5	11.6	1440	85.5	0.84	2.2	7	2.3
Y132M-4	7.5	10	15.4	1440	87	0.85	2	7	2.3
Y160M-4	11	15	22.5	1460	88	0.84	2.2	7	2.2
Y160L-4	15	20	30.2	1460	88.5	0.85	2.2	7	2.2
Y180M-4	18.5	25	35.8	1470	91	0.86	2	7	2.2
Y180L-4	22	30	42.4	1470	91.5	0.86	2	7	2.2
Y200L-4	30	40	56.7	1470	92.2	0.87	2	7	2.2
Y225S-4	37	50	69.7	1480	92.5	0.87	2	7	2.2
Y225M-4	45	60	84.5	1480	92.8	0.88	2	7	2.2
Y250M-4	55	75	102.3	1480	92.6	0.88	2	7	2.2
Y280S-4	75	100	139.3	1480	92.7	0.88	1.9	7	2.2
Y280M-4	90	125	163.9	1480	93.5	0.89	1.9	7	2.2
Y315S-4	110	150	200.3	1480	93.5	0.89	1.8	6.8	2.2
Y315M-4	132	180	239.1	1490	94	0.89	1.8	6.8	2.2
Y315L1-4	160	220	288.2	1490	94.5	0.89	1.8	6.8	2.2
Y315L2-4	200	270	360.3	1490	94.5	0.89	1.8	6.8	2.2
50Hz Synchronous Speed 1000r/min (6Pole)
Y90S-6	0.75	1	2.2	910	72.5	0.7	2	6	2.2
Y90L-6	1.1	1.5	3.1	910	73.5	0.72	2	6	2.2
Y100L-6	1.5	2	4	940	77.5	0.74	2	6	2.2
Y112M-6	2.2	3	5.6	940	80.5	0.74	2	6	2.2
Y132S-6	3	4	7.2	960	83	0.76	2	6.5	2.2
Y132M1-6	4	5.5	9.4	960	84	0.77	2	6.5	2.2
Y132M2-6	5.5	7.5	12.5	960	85.3	0.78	2	6.5	2.2
Y160M-6	7.5	10	16.9	970	86	0.78	2	6.5	2
Y160L-6	11	15	24.6	970	87	0.78	2	6.5	2
Y180L-6	15	20	31.4	970	89.5	0.81	1.8	6.5	2
Y200L1-6	18.5	25	37.6	970	89.8	0.83	1.8	6.5	2
Y200L2-6	22	30	44.5	970	90.2	0.83	1.8	6.5	2
Y225M-6	30	40	59.1	980	91.5	0.84	1.8	6.5	2
Y250M-6	37	50	71.8	980	90.8	0.86	1.7	6.5	2
Y280S-6	45	60	85.2	980	92	0.87	1.8	6.5	2
Y280M-6	55	75	104.1	980	92	0.87	1.8	6.5	2
Y315S-6	75	100	140.8	990	92.8	0.87	1.6	6.5	2
Y315M-6	90	125	168.2	990	93.2	0.87	1.6	6.5	2
Y315L1-6	110	150	204.9	990	93.5	0.87	1.6	6.5	2
Y315L2-6	132	180	245.1	990	93.8	0.87	1.6	6.5	2
50Hz Synchronous Speed 750r/min (8Pole)
Y160M1-8	4	5.5	9.9	720	84	0.73	2	6	2
Y160M2-8	5.5	7.5	13.2	720	85	0.74	2	6	2
Y160L-8	7.5	10	17.6	720	86	0.75	2	5.5	2
Y180L-8	11	15	24.7	730	87.5	0.77	1.7	6	2
Y200L-8	15	20	34	730	88	0.76	1.8	6	2
Y225S-8	18.5	25	41.2	730	89.5	0.76	1.7	6	2
Y225M-8	22	30	47.5	740	90	0.78	1.8	6	2
Y250M-8	30	40	62.8	740	90.5	0.8	1.8	6	2
Y280S-8	37	50	78	740	91	0.79	1.8	6	2
Y280M-8	45	60	92.9	740	91.7	0.8	1.8	6	2
Y315S-8	55	75	113.2	740	92	0.8	1.6	6.5	2
Y315M-8	75	100	151.7	740	92.5	0.81	1.6	6.5	2
Y315L1-8	90	125	178.8	740	93	0.82	1.6	6.5	2
Y315L2-8	110	150	217.8	740	93.3	0.82	1.6	6.5	2
Y315M2-8	132	180	263.2	740	93.8	0.81	1.3	6.3	2

Components
Stamping of lamination
Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing


Packaging & Shipment

An Overview of Company

Xinxiang Anlian Crane Construction Machinery Co., Ltd.
Main business:
electric hoist, hoist, crane motors, conical motors, vibration motors, concrete  vibrators and hoist accessories, which widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.
Long History:
Founded in 1993, currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24,000 square meters, with all kinds of production equipment 90 (sets).
Our Service:

1. Promote reply to your inquiry with 12 hours. Because we valuing every customer.

2. We cooperate with customer to design and develop new product. Provide OEM.

3. After-sales warranty will be provided with 12 months.

4. We will send instructions when you placed the offer.

5. 25-30 days leading time.

6. We'd like to assist you arranging delivery things, test things or others on your request.


Why us?

1. Our Manufacturer is the biggest in China

2. Best price in China

3. Manufacturing from 1993, and full of export experiences.

4. We promise Guaranteed Quality

5. 100% tested for the quality prior to shipment

6. Special motors can be designed according to customers' requirements

7. Perfect performance, low noise, slight vibration, reliable running, good appearance,      small volume, light weight and easy maintenance.

8. Water, dust and vermin resistant; Corrosion resistant;

9. Reliable in country, city or factory environments

10. Very low power consumption

11. Superior life

12. The standards conforms to the IEC international standard

13. Sincere and Professional Service

14. Our principle is "Guaranteed Quality, High Efficiency, Environmental and Considerate
Service"; our purpose is "Win Win".
