Three Phase Three Wire Guide Rail Type Terminal Block
| Price: |
US $ 8.23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

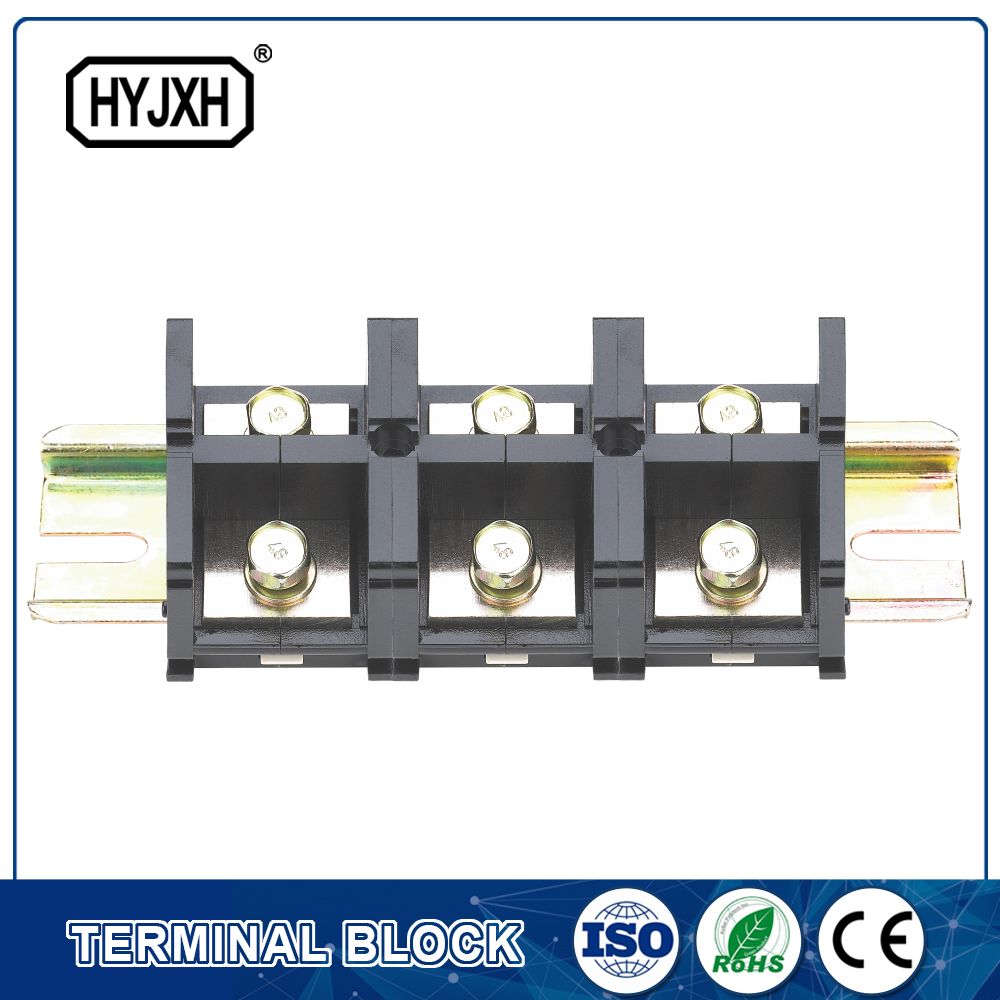

FJ6/JHTD-2503 Type Three Phase Three Wire Teminal block
Structure features Featured with small volume, large current carrying capacity, high withstanding voltage, reasonable structure, nice appearance, etc., this product has many superior properties such as flame retardant, withstanding high temperature, no water absorption, wetness prevention, perfect insulation, impact resistance, anti aging, etc.. Its cover plate is made of transparent material, assembled and disassembled conveniently, so, it attains the goal of transparence and visualization as well as reliable power utilization.ApplicationThis product supports metering of various meter-position, after mounting, it not only avoids the problem of weak current, unsafe, inconvenience or other potential accidents caused by service-entrance wire entering into bare copper bar directly, but also cuts down the cost of metering box. It can be divided into single-pole (1P), single-phase (2P), three-phase three-wire (3P), three-phase four-wire (4P) according to the pole number; it can be divided into one-outlet, two-outlet, three-outlet, four-outlet … eighteen-outlet and so on according to the outlet wire condition. Main technical indexes 1. Insulation voltage: 660V 50HZ(60HZ)2. Service-entrance conductor current:250A,300A,400A3. Meter-entrance conductor current(A/section mm2): 60A/16mm2(wire outgoing at each circuit)- Working temp.: -40ºC~+160ºC
Installation and operationThis series of products provide two installation modes:One:Fixed type,drill hole in the base plate and install directly,mounting screw is M5.Two:Rail type,installed on the TH-35 guide rail (top hat rail).
| Prod Model: |
FJ6/JHTD-2503 |
| Insulation Voltage: |
660V 50Hz(60Hz) |
| Service-Entrance Conductor Current: |
250A,300A,400A |
| Meter-Entrance Conductor Current(a/Secti: |
60A/16mm2(Wire Outgoing at Each Circuit) |
| Working Temp: |
-40ºC~+160ºC |
| Color: |
Black |
| Quality Assurance: |
18months |
| Brand Name: |
Haiyan |
| Place Of Origin: |
Zhejiang,China(Mainland) |
| Delivery Time: |
Delivery Will Be Made 7 Days After Payment |
| Product Name: |
Three Phase Three Wire Teminal Block |
| Application: |
Transmission of Electrical Signals |
| Type: |
Three Phase Guide Rail Type Terminal Block |
| Material: |
PC |
| Brand: |
Haiyan |
China. Haiyan Terminal blocks Co., Ltd is a professional manufacturer integrating researching and developing, producing and selling large current terminal blocks, which was founded in 1991.
Haiyan terminal block brand is renowned at home and abroad. Independent research and development of electric energy metering box series, meter box series branch terminals, large current terminals, complete sets of electric control line dedicated terminal series, multi-purpose terminal series, T series, switch terminal terminal series, insulating puncture piercing connector series, Nylon cable tie series and all kinds of wiring equipment and other products, the company has also developed more than 100 series and more than 1500 specifications of the products.
Advanced production equipment and process technology, its capacity and scale are increasingly attractive. Insisting on the principle of, basing on new technology and new products", the company keeps to provide the products of high quality and advanced performance to meet the various market demands. The products are recommended by the around the power sector, the products are exported to Germany, the United States, Southeast Asia and so on, has been widely used at home and abroad.
