Tire Pressure Monitoring System Professional Wireless Smart TPMS

Name: Tire Pressure Monitoring System Professional Wireless Smart TPMS
Brand: all-electronics-online.com
SKU: 838442915
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 29.9-34.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

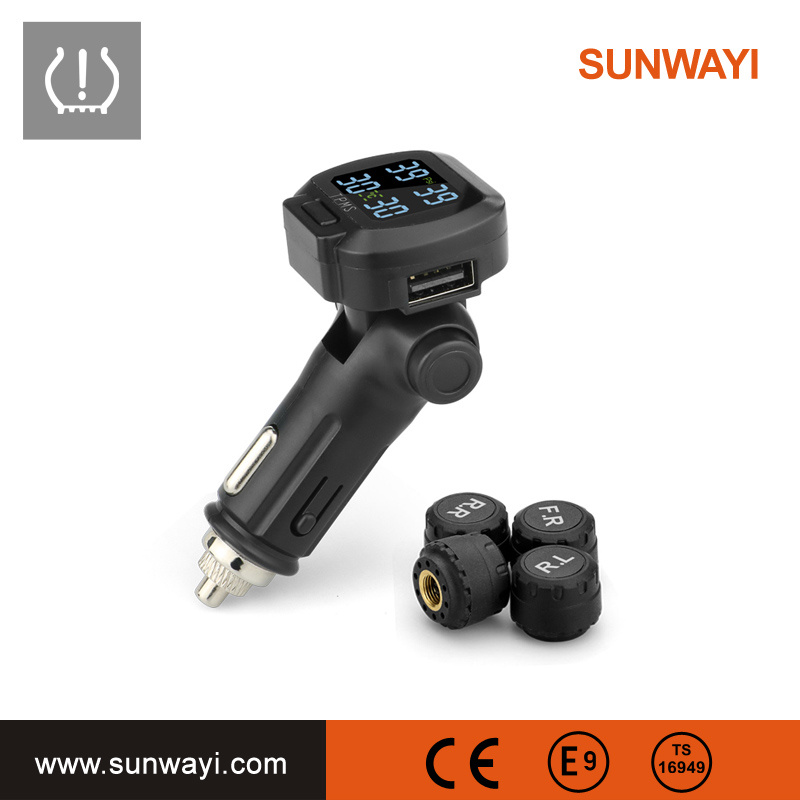

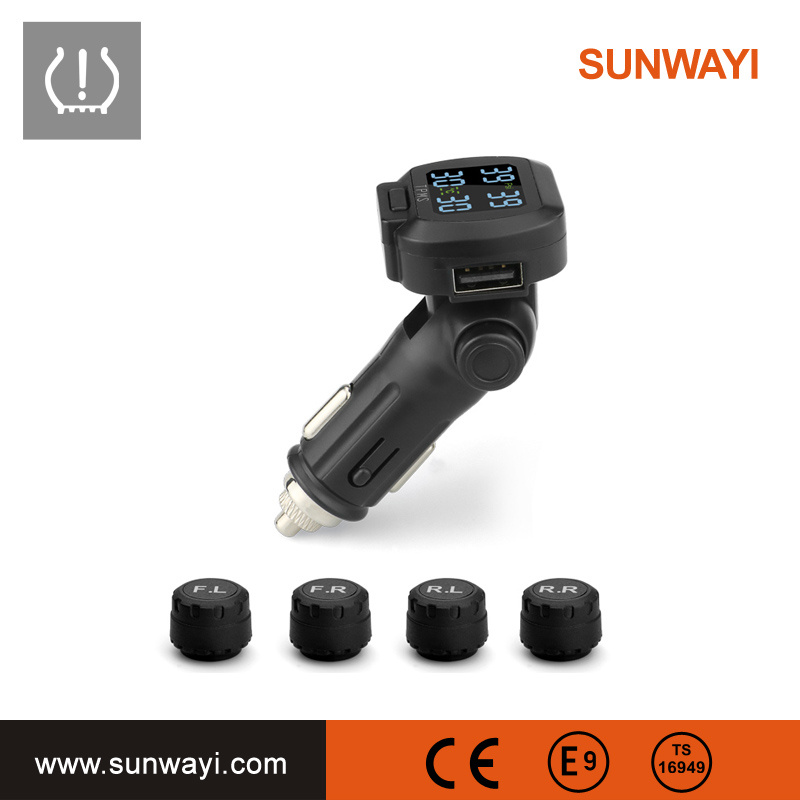

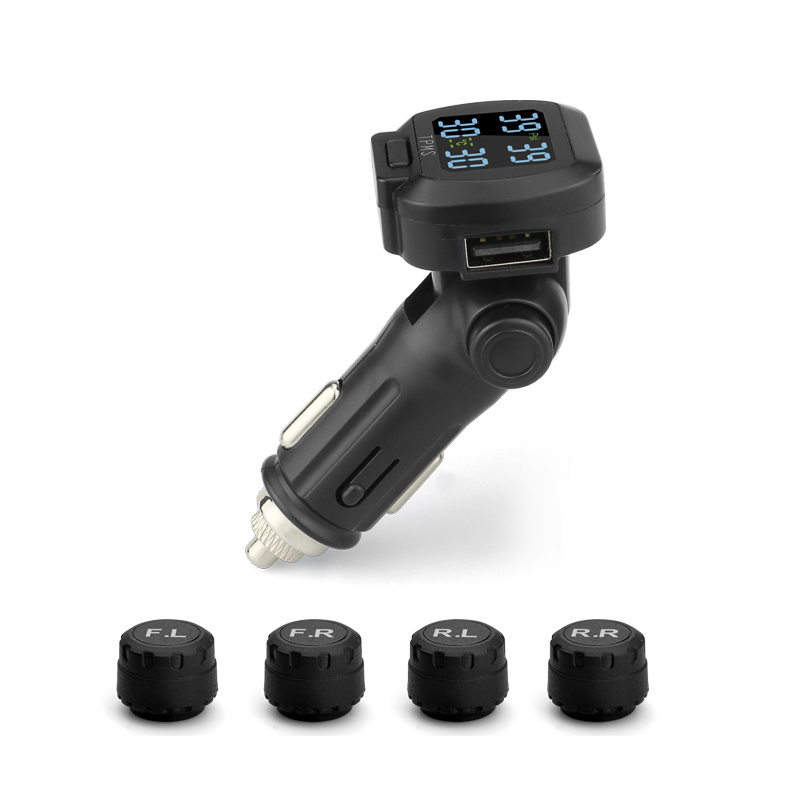

Car Digital Tire Pressure Alarm Monitor System Bluetooth 4.0 TPMS With 4 External Sensor Support Phone APP

Product Description

Cigarette Lighter :
1. Cigarette Displayer can be Moved for best view angle.
2. With USB Charging Port for Mobile Phone Charging.
3. Tires' Pressure data Shew on the Same LCD Displayer.
4. Real-time monitoring the pressure & temperature.
5. Warning while low and high air pressure / high temperature.
6. Set up sensor: learn new sensor ID code when replace sensor.
7. Monitoring Range: 0~51Psi (0~3.5 Bar).
8. Suitable for four wheel car models(even some business auto).

Sensor :
Dimension: 21mm(diameter)*17mm(high)
Weight: 8.0g
Battery life: 24 months
Working pressure: 0~99 Psi
Transmit Frequency: 433.92 MHz
Working Voltage: 2.1~3.6 V
Transmit power: <10dBm
Pressure accuracy: ±1.5Psi
Temperature accuracy: ±2°C
Working temperature: -30~80°C
IP:IP67
Storage temperature: -35~85°C

Packaging Details: Gift Box Size: 135*95*65CM; Weight: 0.36kgs

Delivery Detail: 1-3 days for sample and 15working days for general order.

Product Feature

Display specifications:

Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	- 30 to +80° C
Size	diameter:21 mm, height:17 mm
Weight	20 g

External Sensor Specifications:

Pressure range:	0 to 99psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3ºC
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-30 to +80° C
Weight:	8g

Our Service

1.16 years product experience make us become a professional manufacture.

2. Abundant exporting experience

3. Patented Certificate .

4. Reply your inquiry in 24 hours

5. All the material are test by our IQC, all the PCBA are test by our workers before assembling,all the finish product must be tested at lest 3 times before shipment.

6. Special material to ensure the safety

7.Since every country needs different certificates, we will make the inspection according to your need.

Notice:For more detail information,please feel free to contact us!

We are one of USA Walmart suppliers !

Prod Model:	TPCMU-E
Display:	LCD Screen
Wireless Transitting:	Support
Cigar Charging:	Support
Storage Temperature:	- 30ºC~ 80ºC
IP:	IP67
Anti-Inferenceon Sensitivity:	Support
Anti-Theft:	Support
Battery Life:	24months
Response Time:	6s
Keyword:	TPMS for Car
Type:	TPMS Sensor
Wiring Type:	Wireless

Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
