| Prod Model: |
TK103B+ |
| Brand Name: |
E-Track |
| Warranty: |
5 Years |
| GPS Accuracy: |
5m |
| Band: |
850/900/1800/1900MHz |
| GPS Senesitivity: |
-159dBm |
| Main Function: |
GPS Drift Suppression, Location Based Service (Lbs |
| Network: |
GSM/GPRS |
| Dim: |
87mm*54mm*26mm |
| Weight: |
130g |
| Backup Battery: |
Chargeable 3.7V 500mAh Polymer Li-Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Screen Size: |
No Screen |

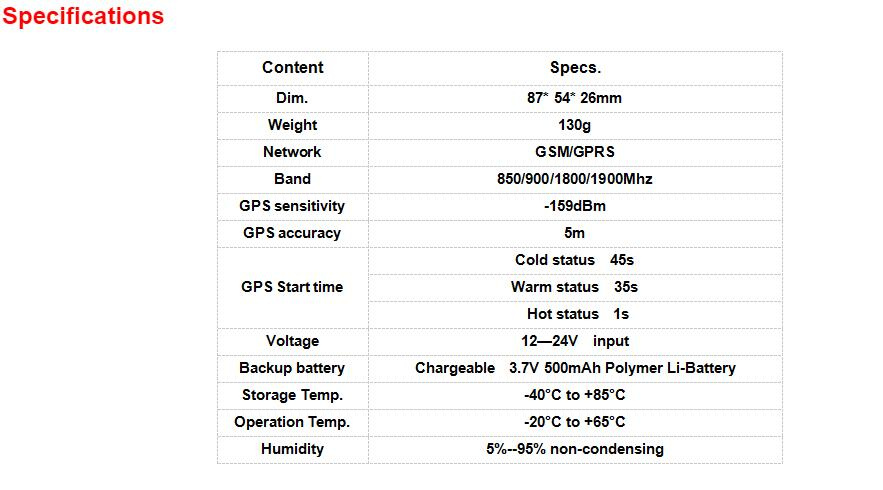

Product Description

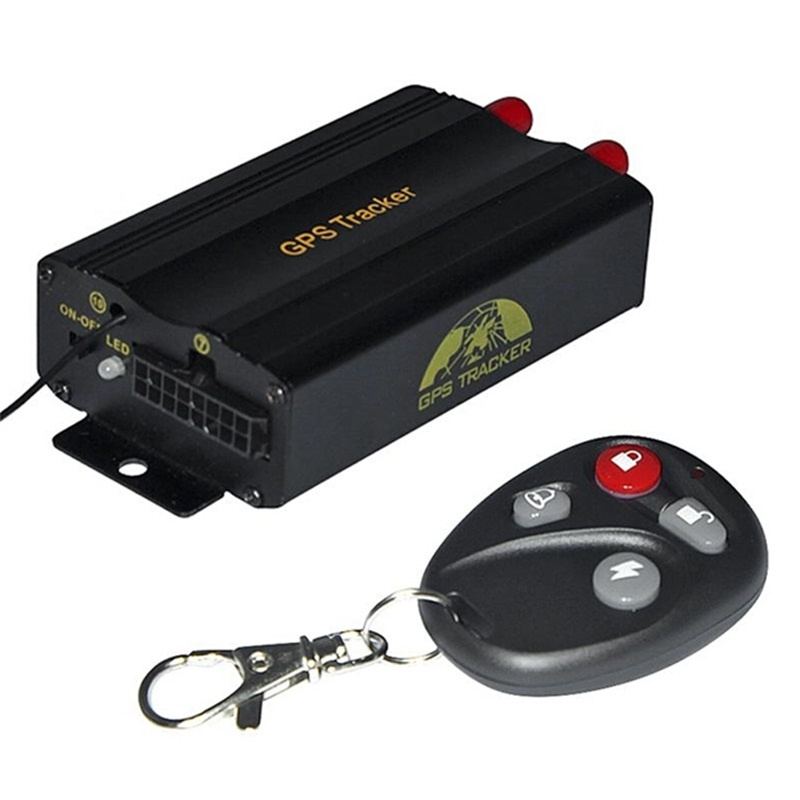

TK103B+ Car GPS Tracker With Remote Control GPS/GSM/GPRS GLOBAL Track For Vehicle
Support :Used widely for vehicle and other moving objects tracking.Support both GPS & LBS (Location based service).Support SMS/GPRS/Internet Network data transmissionSupport GPRS on-line and GPRS re-connected automatically if GPRS dropsSupport SMS / GPRS dual-mode switchingSupport configuration by remote terminal.Support for point-to-point, point to group, group-to-group monitoring.Set multiple functions of security, positioning, monitoringsurveillance,emergency alarms and tracking in its entirety.Hardware Description

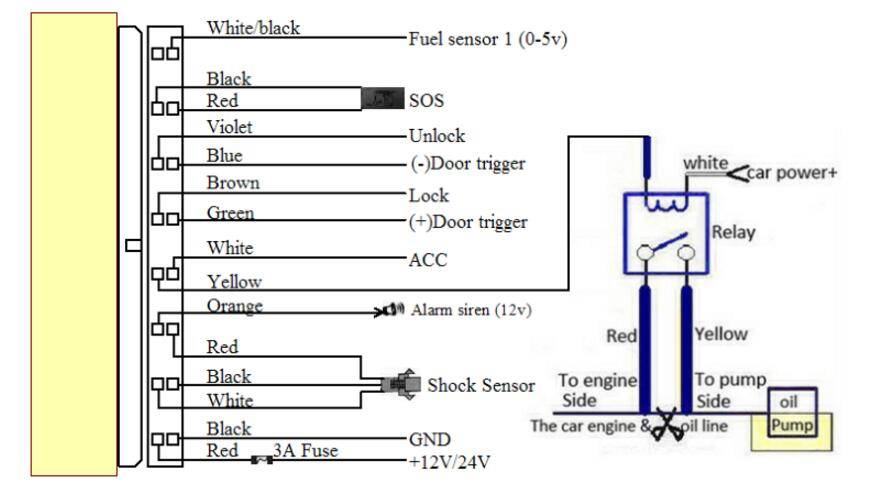

Wiring Diagram of main unit:Find the 16 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:

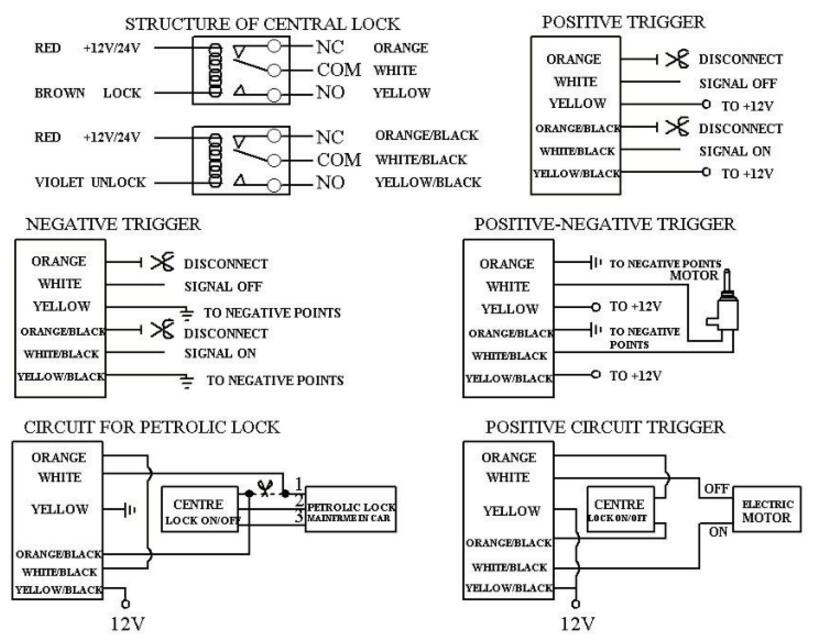

Wiring Diagram of central locking system's relay:
Note: The orange wire can be connected to the car original horn; or connected to the siren you buy with the tracker. (Siren is Option) Knowing about the type of the door trigger is positive or negative trigger. Please connect the green wire to the door control circuit if it is positive, and connect blue wire if it is negative.When wiring central lock system to control the door lock, the default settings of the device is for electric lock, if the vehicle is air compressor lock, please refers to the switch command described later. Please install the SOS button on the place driver can touch. Connect the GPS and GSM antenna to the right connector, and find an appropriate place to fix the antennas for good reception.

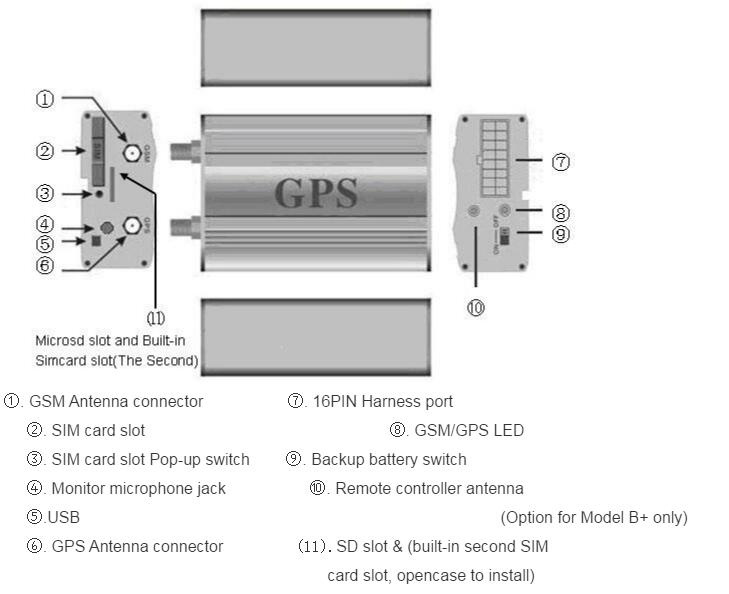

Dual SIM CardThe second SIM card need to open the case to install it.Device supports dual SIM card, but only one of them work with tracker, and switch to theother one automatically when it is broken, no GSM reception or no GPRS.Main Functions:

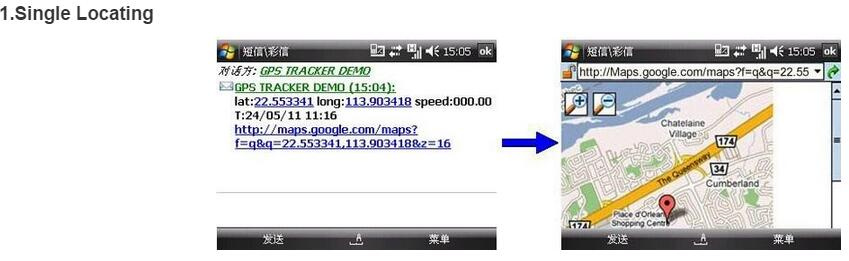

2.Auto track continuously
a. Track with limited times upon time interval
b. Track with unlimited times upon time interval
c. Smart track upon time and distance interval
3.Automatic update positions of vehicle turns
4.GPS drift suppression
5.Exact street address
6.Location based service (LBS)/Cell-ID Locating
7.Monitor
8.Data logging
9.Data Load
10.Forward the third parties' message
11.SIM card Balance Inquiry
12.ACC working alarm
13.Cut off the Oil and Power System
14.ARM / LOCK
a. ARM / LOCK BY SMS
( All the functions of Lock and Unlock must work with the optional relay of central locking system)
b.ARM / LOCK BY Remote controller (Option for Model 103B+)
15.DISARM / UNLOCK
a. DISARM/UNLOCK BY SMS
b. DISARM/UNLOCK BY Remote controller (Option for model 103B+)

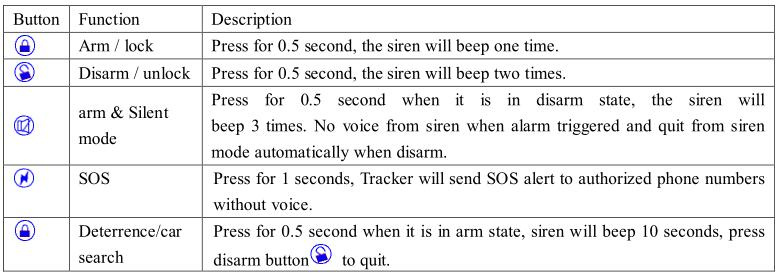

16.Function of Remote controller(Only for GPS103B+)
17.Electric / Air compressor lock switch
18.Silent Mode
a. Set up silent mode by SMS
b. Set up silent mode by remote controller(only for GPS103B+)
19.Low Battery alarm
20.Power Off alarm
21.GPS Blind Spot alert
22.SOS
23.Geo-fence
24.Multi-area management
25.Movement alarm
26.Over speed alarm
27.Fuel alarm
28.Alarms under Arm State
a.Door alarm
b.ACC alarm
c.Shock Sensor alarm
29.Alarm without GSM network service
30.Accident sensor(Optional)
When tracker detects accident occurred (severe impact)during normal driving, it will send " Accident! + latitude & longitude " to
all authorized phone numbers.
31.Sleep Mode
32.Check the Vehicle State.
33.Check IMEI
34.Set up Terminal (local) Time
35.Reset Hardware
36.TCP/UDP switch
37.Configure parameters by USB
38.Set up GPRS
39.Less GPRS traffic
Package Include:
1pc* GPS Tracker GPS103B+/TK103B+
1pc* GPS Antenna 3 meters long
1pc* GSM Antenna 2 meters long
1pc* Plug 16 pin Harness
1pc* Relay
1pc* Microphone
1pc* Remote controller
1pc* User Manuals
