Tk108 GPS Vehicle Car Tracking System with Mileage Function (WL)
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
We are professional gps tracking system, vehicle GPS tracking system, GPS car tracking solution, GPS vehicle tracer, Vehicle gps tracker supplier.
TK108 GPS vehicle tracking system is the cost-effective solution for security & real-time tracking. It is specially used for car/truck tracking because of its compact size and strong functions.
Features & Functions
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the cars real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google maps URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in shock sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support SOS button(optional)
15. Support analog input for fuel monitoring
16. I/O: 3 inputs and 1output
17. It can upgrade the normal car alarm with remote alarm function.
18. Compact size with water-proof design
19. Wide working voltage range, from 6V-36VDC, suitable for car or big truck.
20. Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish)
21. There are 3 types of working mode for power saving flexibly.

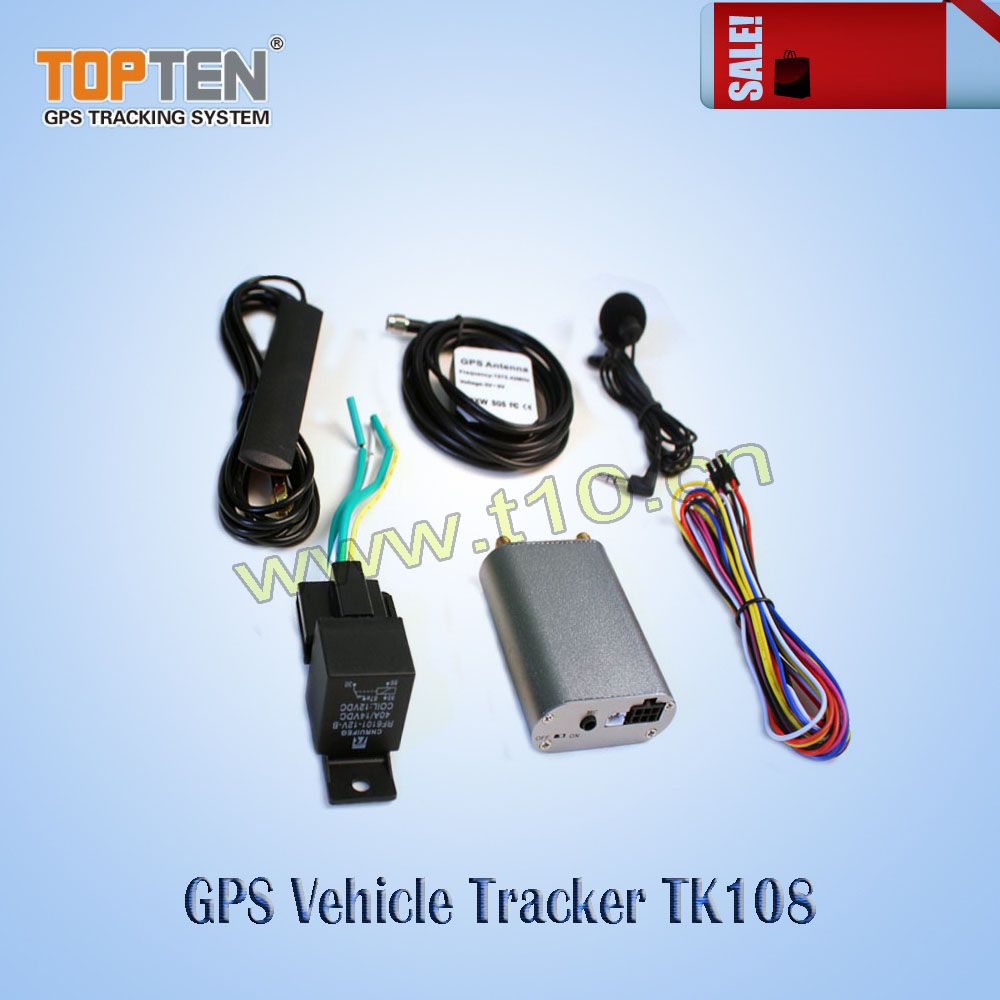

Standard Package:
Main unit 1pcs
6pin wiring 1pcs
12VRelay 1pcs
Micphone 1pcs
GPS antenna 1pcs
GSM antenna 1pcs
Manual 1pcsHow to track:1. Track by SMS with Google map link or real address
2. Track by management software (connect with the TS03 center for live tracking)
Delivery Time:
Order <100pcs, delivery is arrange in 3 working days upon receipt of the payment; Order >100pcs, delivery time is about 3-7 days or according to our production schedule
Alarm Type:
Vibration Alarm
In arming status, if the car is vibrated, it will send out alarm SMS.
Power Failure Alarm
In arming status, if the battery is cut off, it will send out alarm SMS.
Engine ON Alarm
In arming status, if the cars engine is ON, it will send out alarm SMS and call the preset phone.
Movement Alarm
In arming status, the movement alert is enabled automatically. Once the car moves away from the parking point for 100 meters, it will it will send out alarm SMS and call the preset phone.
Geo-Fence Alarm
Once the Geo-fence is activated, if the car oversteps the boundary, it will send out alarm SMS.
Over-speed Alarm
If the car runs over the speed limitation continuously for 3 minutes, it will send out alarm SMS.
SOS Alarm (Optional)
In any condition, if the SOS button is pressed, it will trigger the SOS alarm. (NOTE: The SOS alarm will only be sent to the 2nd phone, the 3rd phone number & the GPRS tracking center, the other alarms will send to all the preset phones & GPRS tracking center. )
Trigger Alarm
If the trigger line detects a continuous positive signal for 5 seconds, it will send out this alarm.
| Size of the main unit | 6.2*5.0*2.52(CM) |
| Weight of the main unit | 0.065KG |
| Working temperature | -20 ~ 85 C |
| Humidity | 0 ~ 95% |
| GSM frequencies | Dual-band:900MHz/1800MHz
(or Quad-band: 850MHz/900MHz/1800MHz/1900MHz) |
| GPS chip | U-blox chipset (or MTK3339) |
| Working voltage | +6.0 ~+36VDC |
| Power Consumption | Working current: 50mA; Peak current: 800mA; |
| Backup battery | Rechargeable 3.7V 500mAh Li-ion battery |
| Prod Model: |
TK108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silver |
| Upgrade Original Car Alarm: |
Yes |
| Engine Status Detect: |
Yes |
| Engine Cut: |
Yes |
| Monitor Voice: |
Yes |
| Data Logger: |
Yes |
| Type: |
GPS Tracker |
