To220 To247 High Power Resistors

Name: To220 To247 High Power Resistors
Brand: all-electronics-online.com
SKU: 691475011
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 1/Piece
Min Order:	10000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

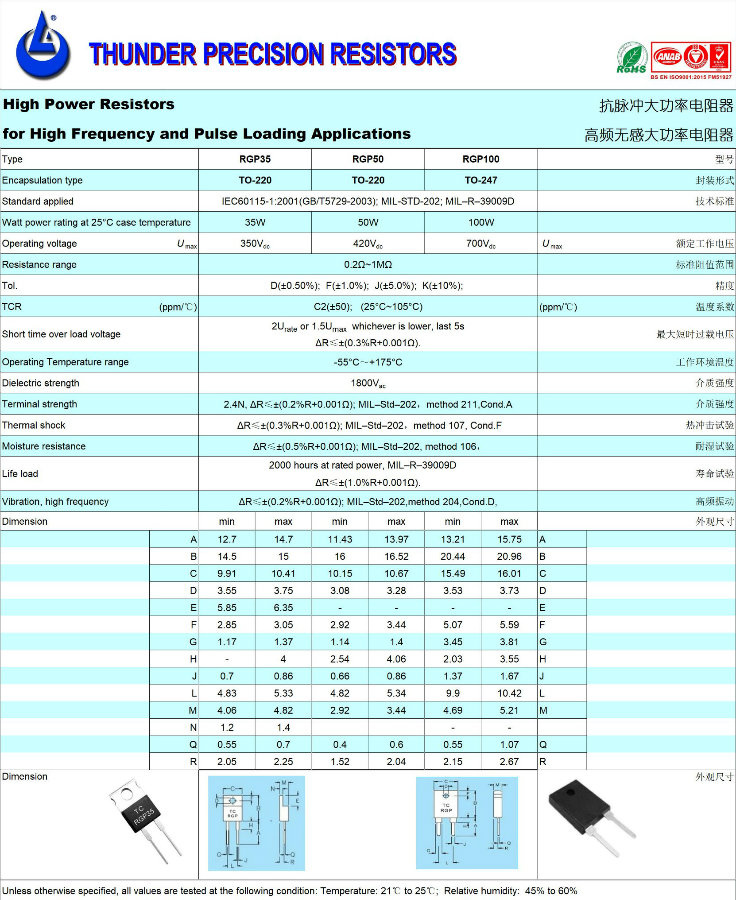

RGP series power resistors are made of both thin film and thick film for high power load up to 100W.
The standard thick film RGP series power resistors are of high cost performance ratio while the thin film RGP series are the percision resistors with high power capability and tight tolerance and low temperature coefficient for precision utilities.
RGP series power resistors are sealed with Flameproof UL94V0 materials molded encapsulation for resistant to heat, humidity and insulation of standard TO220 and TO247 size with heat sink for high power working circumstance.
Wide resistance range is the advantage of thin film power resistors form 10Ω to 510kΩ and resistance and tolerance range out of spec is available upon request.

Prod Model:	RGP series
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Sampling
Brand:	Thunder

Thunder Precision Resistor Co., Ltd. is a 25 years experienced professional manufacturer of high precision resistors and ultra-high precision resistors and varies special resistors as well as hgih precision resistor netwouds.

All production is strictly controlled and follows an extensive set of instructions established in production procedure for reproducibility which was introduced from Europe in 1988.

The quality of the products is always the first priority in Thunder Precision Resistors that is our company quality policy.

BSI issued ISO9000 Quality Management Certificate to Thunder Precision Resistors in 1998 and upgraded it in June 2016 to ISO9001: 2015.

We are going to get the certificate of IATF16949: 2016 by the end of the year that is automotive sector quality management systems updated from TS16949-2009 in Oct., 2018
