Tooless UTP Cat. 5e Keystone Jack 180 Degree with Shutter

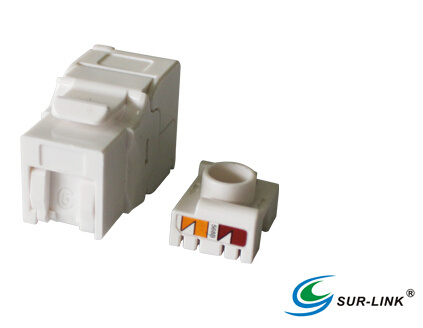

Name: Tooless UTP Cat. 5e Keystone Jack 180 Degree with Shutter
Brand: all-electronics-online.com
SKU: 807029065
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKJ-X33111-1
Material:	Plastic
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	UL,ETL,Fluke
Condition:	New

Product Description

ELECTRICAL:

1. Voltage rating: 125 VAC RMS

2. Current rating: 1.5 AMP

3. Contact resistance: 100 Milliohms MAX

4. Insulation resistance: 1000 Megohms MIN @ 500 VDC

5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1. Storage: -40°TO +70°

2. Operation: -10°TO +60°

Conform to TIA/EIA 568B CATEGORY 5e

Mates with modular plug conforming to FCC part 68, Subpart F.

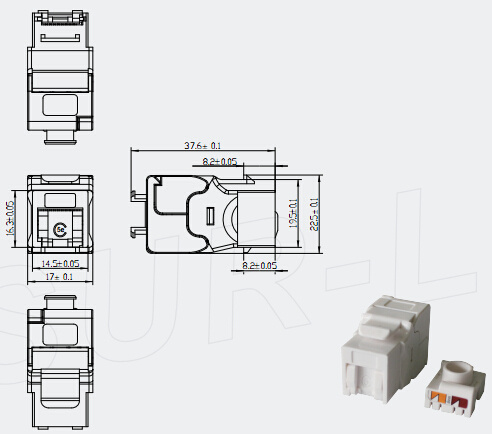

MECHANICAL:

1. Housing material: QIMEI PC110 UL94-V0

2. Insert material: PBT+30%GF

3. PCB material: FR-4 T=1.6mm

4. Contact material: Phosphor bronze stamp PIN T=0.3mm

5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6. RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~24

9. TIA CAT 5e PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
KJ-X33111-1	UTP Cat.5e Keystone Jack 180 degree,tooless,with shutter	500 PCS	402953 cm	7.6 kg

Zhejiang Chaolian Electronic Co., Ltd. is one of the leading company in designing, manufacturing and marketing of Cable assembly, Fiber Optic and Telecommunication product, including: Patch Panel, Keystone Jack, Patch Cord, Faceplate, Fiber Optic Adapter, Fiber Optic Patch Cord etc.

We look forward to have a long-term business relationship with you, and are positive your total buying experience will be a pleasure and memorable one.

About Surlink Group

Ningbo ChaoLian Communication Co., Ltd. Belongs to Sur-link Group. It is a modernized high tech company combines Structured Cabling System design, development and manufacturing. The company? ? S headquarter and the operation center is in Shenzhen. Its production bases are located at the new area of Hangzhou bay - Zhejiang Ningbo economic development zone.

Ningbo ChaoLian Communication Co., Ltd. Manufactures Cat. 5e, Cat. 6 and fiber optic system products. The products include Faceplates, Keystone Jacks, Patch Panels, Wiring Blocks, Fiber Optic Patch Cord, Adapters, Cable testers and others. In 2001, Sur-link has been approved by ISO 9001: 2000 quality system. All products have been tested and certified by China Information Technology Department and Shanghai Testing Center. Some products had passed international authorized product certification such as CE, UL, and ETL.

The company not only has modernized office facilities, research equipments and technical workshops, but also has high standard testing facilities and systematic solutions to provide excellent quality products and services to its customers.

Currently, Sur-link products have become the first brand name choice for many IC and communication businesses in China. At overseas, Sur-link products were sold to Middle East, Europe, North and South American. It has set up the comprehensive sales networks nation wide and in oversea markets.

The company improves products quality constantly to benefit the customers. Additionally, it pays great attention to product reliabilities, safety and environment requirements. The company keeps innovating, developing new products and new techniques to maximize its values for the customers.
