Top Quality Household Use DIN-Rail Metal Distribution Panel Box

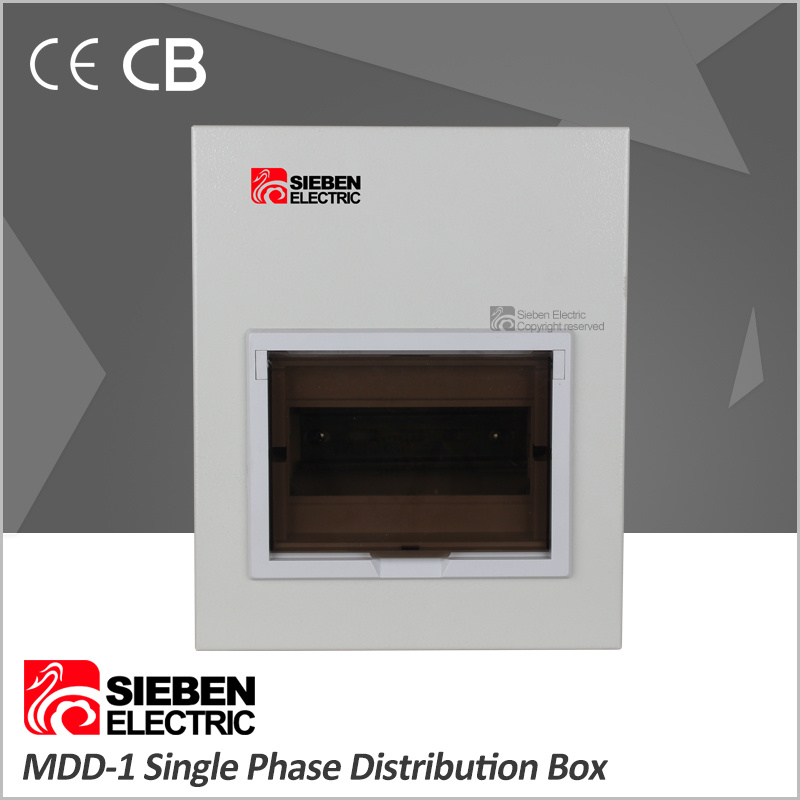

MDD-1 Series Single Phase Metal Distribution Box



Application

MDD-1 series single phase distribution box has been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Din-rail designs for indoor applications.


Features

Made out of high quality steel sheet of up to 0.8 - 1.0 mm thickness
Matt-finish polyester powder coated painting
Knockouts provided on top and bottom of the enclosure
Accept all Din-rail type miniature circuit breakers
Suitable for AC 50/60Hz, rated voltage 230/415V, rated current up to 100A
Wider enclosure offers the easy wiring and the excellent heat dissipation
Flush and surface mounted designs


Specifications


Way No.	Model Code	Breaker Pole No.	Main Switch	Spare Parts
4	MDD-1105T	5	1 Piece 2 Pole 100A	Earth Bar Natural bar Bus Bar Din Rail
6	MDD-1108T	8
8	MDD-1112T	12

Detailed Pictures

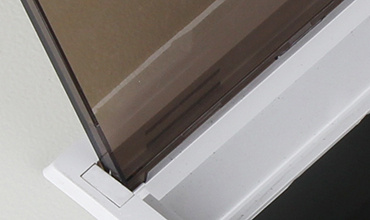

Pure new nylon material plastic parts and PC door

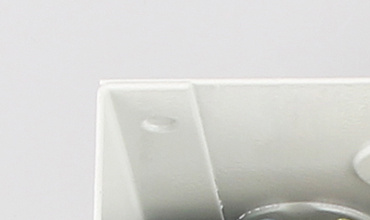

	Accurate welding and plastic powder painting technology

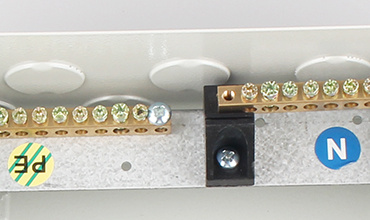

Pure copper earth bar and netural bar

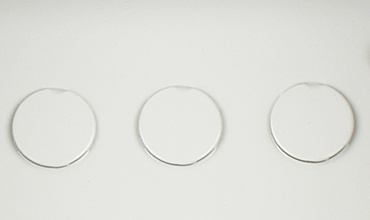

	Enough quantity of accurate knockouts for cable in/out

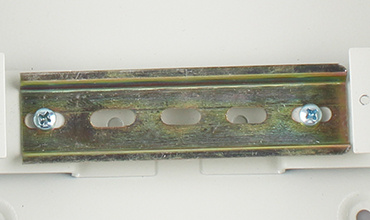

35mm standard metal din-rail suitable for all din-rail type MCBs

FAQ

1. Package & Shipping
1 pc in 1 box and 10 boxes in 1 carton. Single box can be designed according customers' requirements.
Nearest ports for shipping are Wenzhou, Ningbo & Shanghai

2. Delivery Time
20 days for 1X20ft container, 25 days for 1X40HQ container

3. Payment Terms
30% as deposit, and the balance against delivery. (T/T, L/C in EXW, FOB, CNF, CIF...)

4. Sample Policy
After the prices confirmed, we can send you a sample for your checking quality.
Our sample is for free but the express cost should be affored by your side.

5. R&D, Customization & Design
We have the professional team to make R&D, Customization & Design according to customers' requirements or ideas.
We can also produce the goods according to customers' drawings.

6. About After-sales Services
All of our goods undergoes a comprehensive control of hydraulic tests in order to guarantee the quality.
If some goods that you received has any problem, please contact the sales persons who will give you solution in 24 hours.
