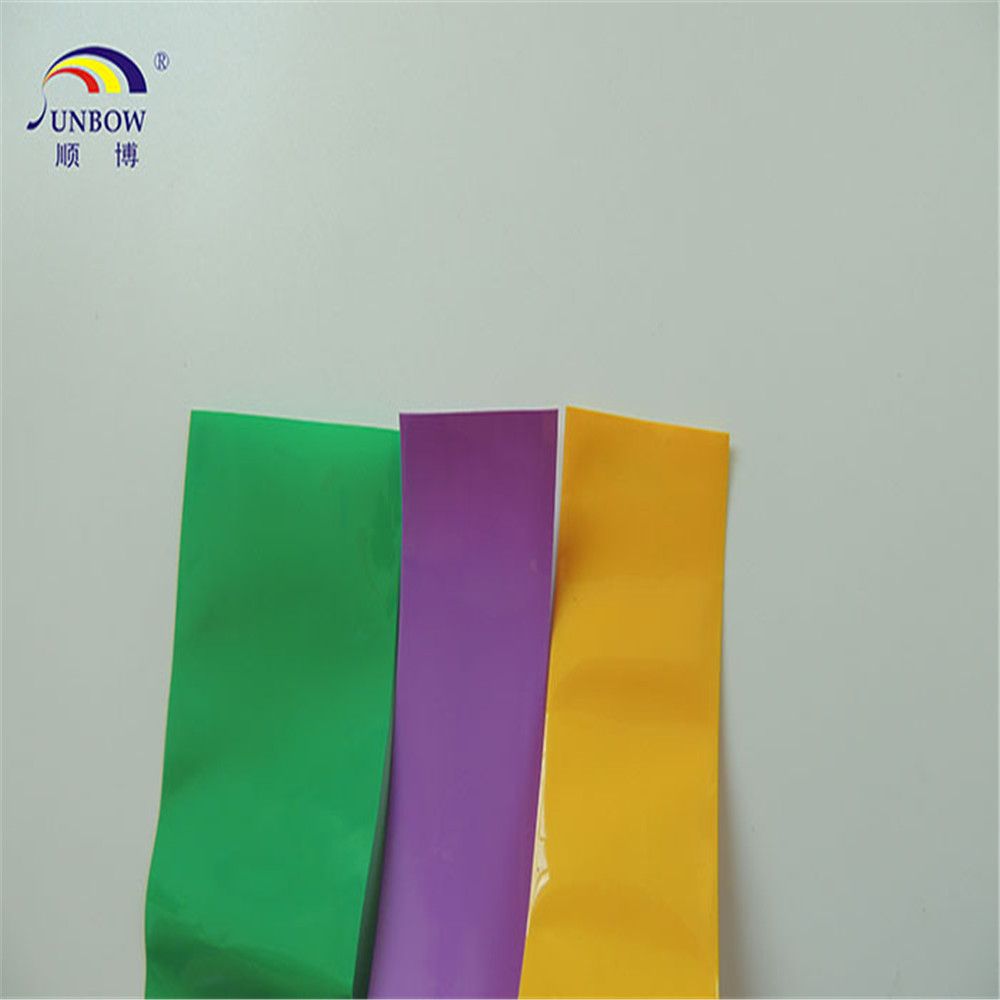

Top Quality PVC Heat Shrink Tube
| Price: |
US $ 0.0112-0.999kg |
| Min Order: |
20kg |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Flexible Heat Resistant Plastic PVC Heat Shrink Tubing for Lion batteryModel number:SB-PVC-HST Working temperature: -30ºC ~ +105ºCStructurePVC heat shrinkable tubing is produced with excellent and environmental protective PVC colloidal particle, treated by evaporation, then extruded to tubing when heated up and liquated by extruding machine, and coiling packed after cooling.UsagePVC heat shrinkable tubing possesses excellent flexibility, mechanical and dielectric capability, flame resistance, low temperature shrinkage etc. It is widely applied in outside insulating protection of outgoing wires of electrical appliances, motors, sensors and transformers, bunchy wires and electronic components, gaseous and liquid pipelines etc.Specification| Property | Test method | Standard |
| Tensile strength | | ≥4000Pa/m2 |
| Dielectric voltage withstand | 10 seconds | ≥8KV |
| Volume resistivity | Normal temperature Relative temperature≤65% | ≥1015Ω/cm3 |
| Resistance to second shrinkage | 185ºC 15 seconds | ≤20% |
| Resistance to second shrinkage | Dipping in 160ºC silicone oil after recovered with capacitor for 3 minutes | Excellent appearance |
DimensionNote: All the PVC heat shrinkable tubing is subject to the confirmed samples, not limited with this property. | No | Size(mm) | Flat width(mm) |
|
| 1 | ¢2.8 | 4.7±0.5 |
| 2 | ¢3.2 | 5.5±0.5 |
| 3 | ¢4.0 | 7.0±0.5 |
| 4 | ¢5.0 | 8.7±0.4 |
| 5 | 9.0±0.4 |
| 6 | 9.3±0.4 |
| 7 | ¢6.0 | 10.5±0.4 |
| 8 | 10.8±0.4 |
| 9 | 11.0±0.4 |
| 10 | ¢7.0 | 12.2±0.5 |
| 11 | ¢8.0 | 13.5±0.5 |
| 12 | 13.8±0.5 |
| 13 | 14.1±0.5 |
| 14 | ¢9.0 | 15.3±0.5 |
| 15 | ¢10 | 16.5±0.5 |
| 16 | 16.8±0.5 |
| 17 | 17.1±0.5 |
| 18 | ¢11 | 18.0±1.0 |
| 19 | ¢12 | 20.0±1.0 |
| 20 | ¢12.5 | 21.0±1.0 |
| 21 | ¢13 | 21.5±1.0 |
| 22 | ¢13.5 | 22.5±1.0 |
| 23 | ¢14 | 23.5±1.0 |
| 24 | ¢14.5 | 24.0±1.0 |
| 25 | ¢15 | 24.5±1.0 |
| 26 | ¢16 | 26.5±0.5 |
| 27 | 27.0±0.5 |
| 28 | ¢16.5 | 27.5±1.0 |
| 29 | ¢17 | 28.0±1.0 |
| 30 | ¢18 | 29.5±1.0 |
| 31 | ¢19 | 31.0±1.0 |
| 32 | ¢20 | 32.5±1.0 |
| 33 | ¢21 | 34.0±1.0 |
| 34 | ¢22 | 35.5±1.0 |
| 35 | ¢23 | 36.5±1.0 |
| 36 | ¢24 | 39.0±1.0 |
| 37 | ¢25 | 41.0±1.0 |
| 38 | ¢25.4 | 41.5±1.0 |
| 39 | ¢26 | 43.5±1.0 |
| 40 | ¢27 | 45.0±1.0 |
| 41 | ¢28 | 46.5±1.0 |
| 42 | ¢29 | 48.5±1.5 |
| 43 | ¢30 | 50.0±1.5 |
| 44 | ¢33 | 52.0±1.5 |
| 45 | ¢34 | 56.5±1.5 |
| 46 | ¢35 | 58.0±1.5 |
| 47 | ¢38 | 63.5±1.5 |
| 48 | ¢40 | 65.0±2.0 |
| 49 | ¢42 | 69.0±2.0 |
| 50 | ¢45 | 72.5±2.0 |
| 51 | ¢46 | 74.0±2.0 |
| 52 | ¢48 | 77.5±2.0 |
| 53 | ¢50 | 82.0±2.0 |
| 54 | ¢55 | 90.0±2.0 |
| 55 | ¢60 | 97.0±2.0 |
| 56 | ¢65 | 106.0±2.0 |
| 57 | ¢70 | 112.0±2.0 |
| 58 | ¢75 | 122.0±2.0 |
| 59 | ¢80 | 131.0±2.0 |
| 60 | ¢85 | 135.0±2.0 |
| 61 | ¢93 | 143.0±2.0 |
| 62 | ¢9 | 150.0±3.0 |
| 63 | ¢103 | 160.0±3.0 |
| 64 | ¢109 | 167.0±3.0 |
| 65 | ¢116 | 178.0±3.0 |
| 66 | ¢130 | 198.0±4.0 |
| 67 | ¢142 | 218.0±4.0 |
| 68 | ¢154 | 238.0±4.0 |
| 69 | ¢161 | 248.0±4.0 |
| 70 | ¢167 | 258.0±4.0 |
| 71 | ¢180 | 278.0±4.0 |
| 72 | ¢190 | 294.0±4.0 |
| 73 | ¢200-¢250-¢318 |

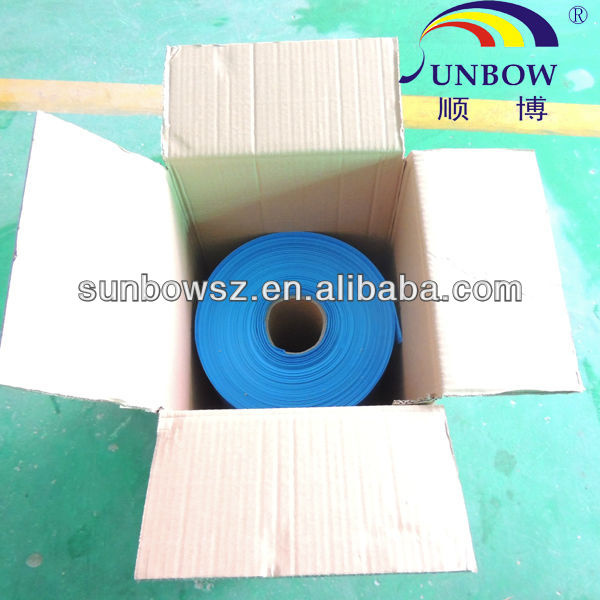

Remark: Standard wall thickness as below list, 4.7mm≤ Flat width ≤25mm, wall thickness 0.1mm, 200 meter/roll, 25mm≤ Flat width ≤60mm, wall thickness 0.05mm, 1 kilos/roll, 62mm≤ Flat width ≤78mm, wall thickness 0.05mm or 0.07mm,2 kilos/roll, 80mm≤ Flat width ≤85mm, wall thickness 0.08mm,2 kilos/roll, 90mm≤ Flat width ≤115mm, wall thickness 0.10mm,2 kilos/roll, 118mm≤ Flat width ≤120mm, wall thickness 0.11mm-0.12mm, 3kilos/roll, 125mm≤ Flat width ≤160mm, wall thickness 0.13mm, 5kilos/roll, 170mm≤ Flat width ≤400mm, the wall thickness 0.15mm , 10kilos/roll, Flat width ≥ 400mm, the max wall thickness 0.12mm, 15kilos/roll, Other size can be customized. Color : All color is available.Package

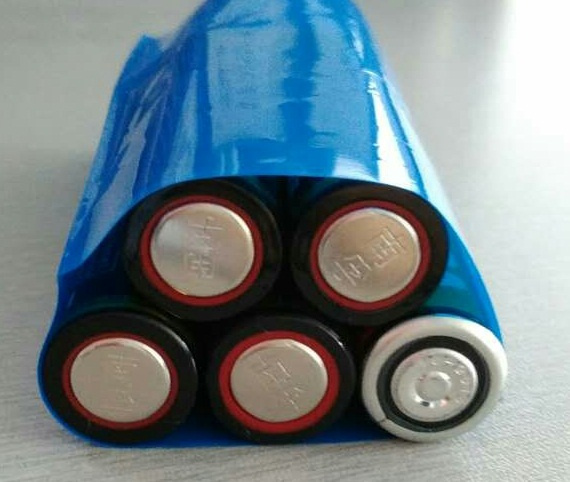

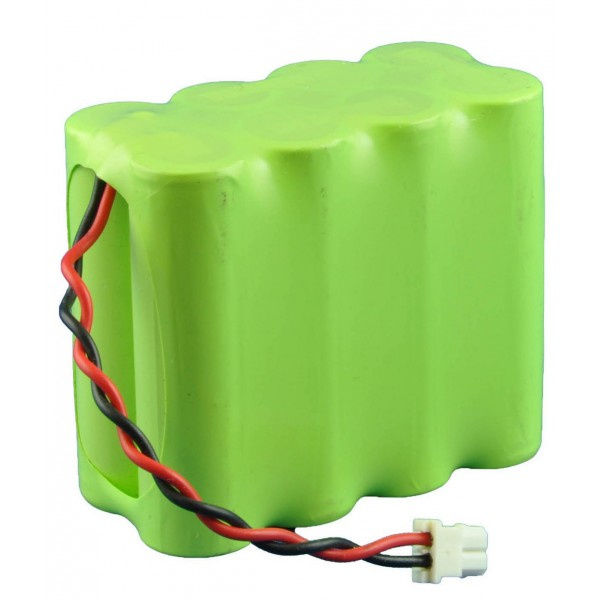

Product usage

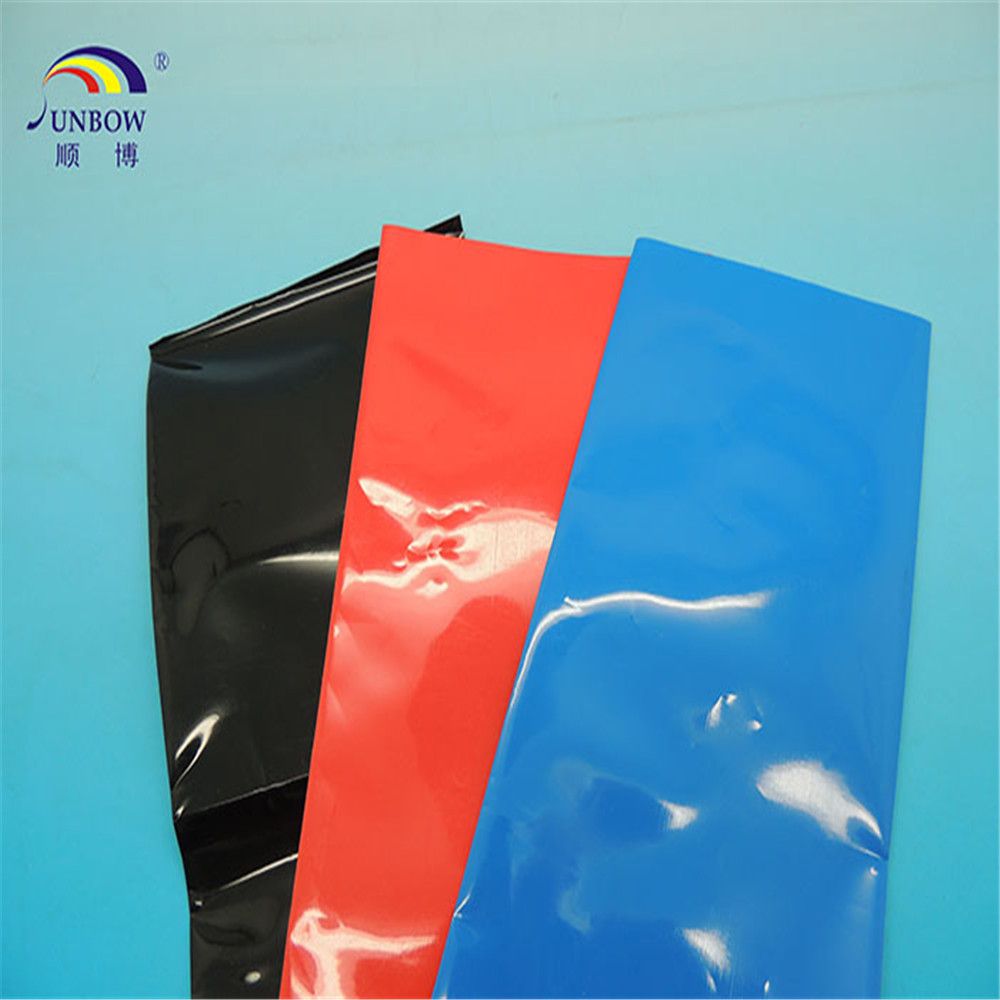

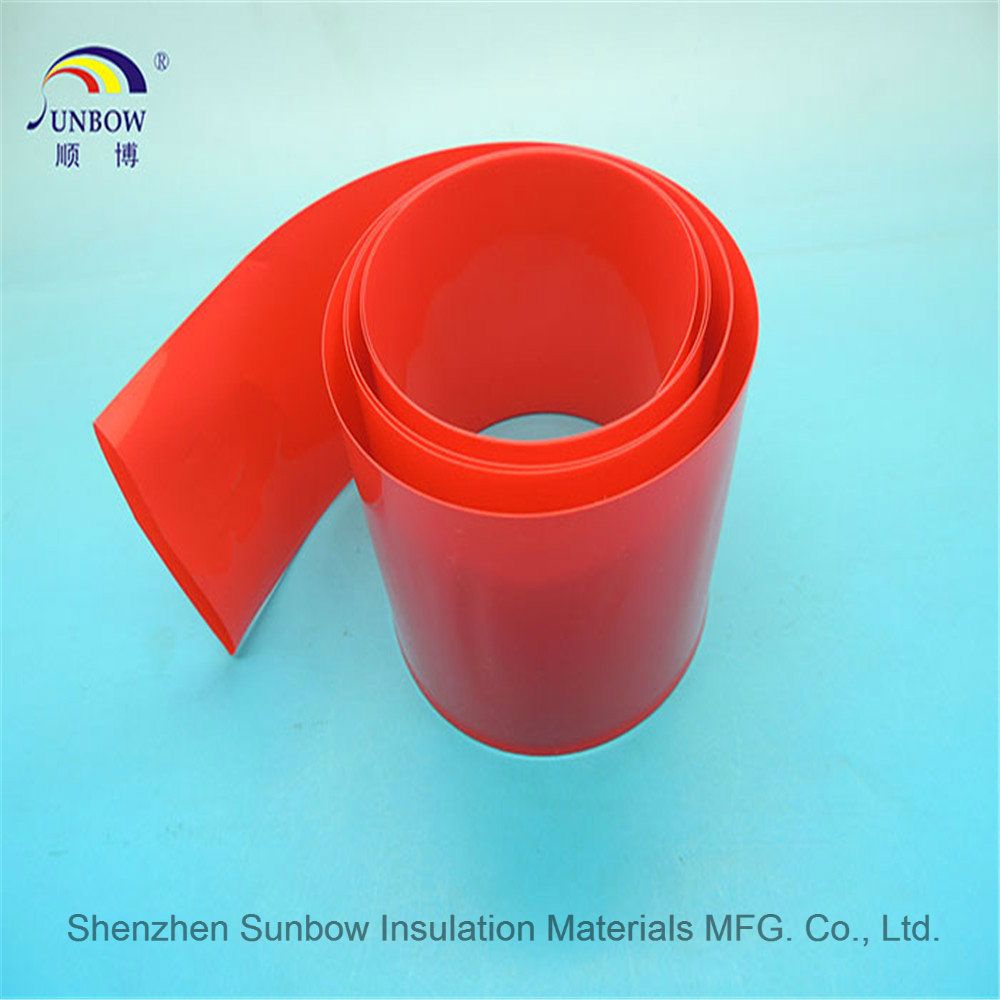

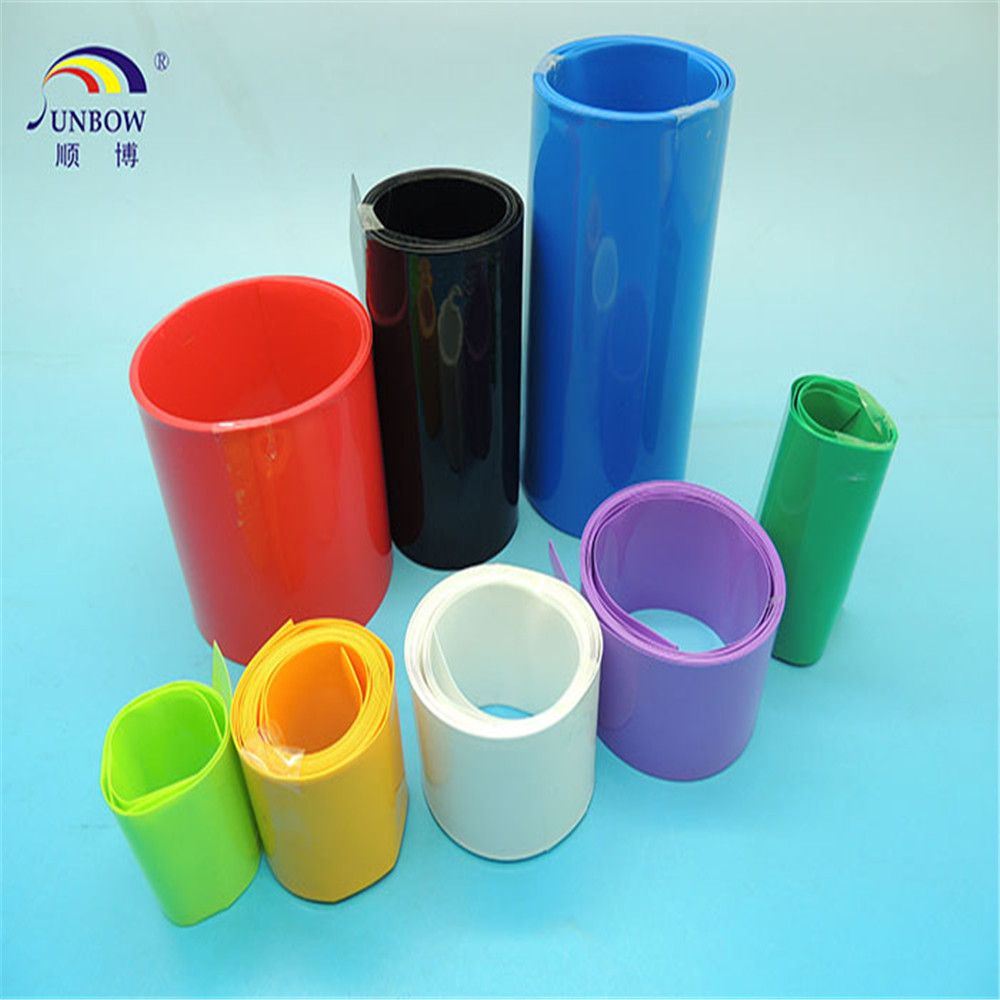

More picture show
| Prod Model: |
SB-PVC-HST |
| Application: |
Battery, Bunchy Wires |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
A 105 |
| Maximum Voltage: |
<10KV |
| Material: |
PVC |
| Color: |
All Color Available |
| Brand: |
Sunbow |
