Top Sell Electrical Intelligent Bakelite Circuit Breaker

Name: Top Sell Electrical Intelligent Bakelite Circuit Breaker
Brand: all-electronics-online.com
SKU: 729975512
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 3415-3428/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

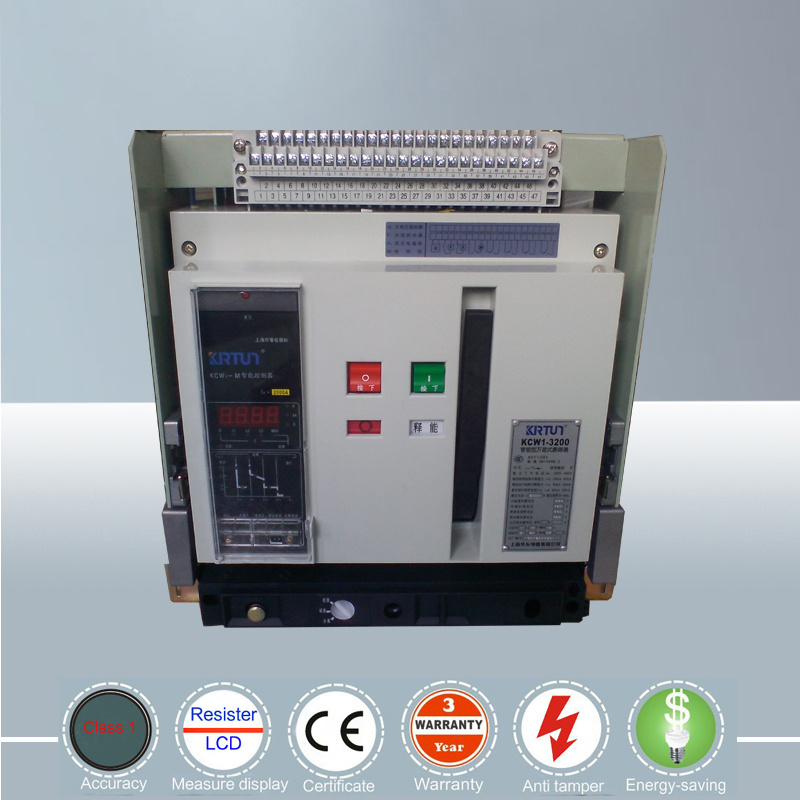

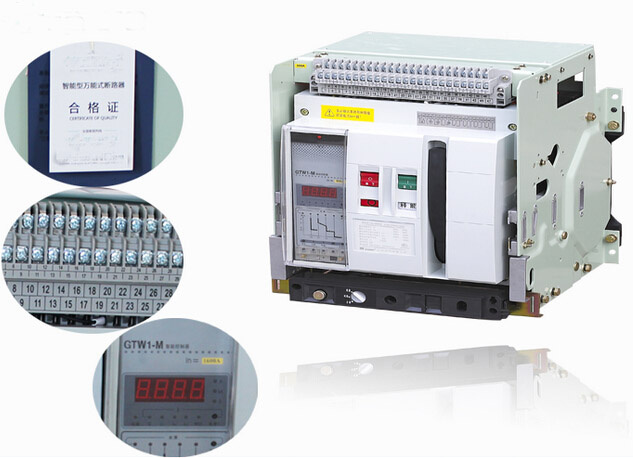

4000A Draw out over voltage protection intelligent Circuit Breaker

Universal Air circuit breaker is designed to distribute and protect circuit and equipment from
overload, under-voltage short-circuit damage ,and single-phase earthing .
Rated current: 1600a,2000a,2500a,3200a,4000a,6300a
No of poles: 3P,4P
Rated insulation voltage: 400v/690v
Icu(kA)O-CO : 100kA/400v, 65kA/690v
Ics(kA)O-CO-CO: 65kA/400v, 50kA/690v
Icw(kA)O-CO: 65kA/400v, 50kA/690v
Standard : IEC60947-2.
Arcing over distance: 0mm
Inherent making & breaking time: 23-32ms
Mechanical life : 10000 times
top sell electrical intelligent bakelite circuit breaker

Type		DW45-1600	DW45-2000	DW45-3200	DW45-4000	DW45-6300
Frame rated current Inm (A)		1600	2000	3200	4000	6300
Number of poles		3,4	3,4	3,4	3,4	3,4
Rated current In (A)		200,400,630, 800,1000	400,630,800,1000, 1250,1600,2000	2000,2500,2900,3200	2000,2500,3200,4000	4000,5000,6300
Icu (kA)O-CO	400V	42	80	100	100	120
Icu (kA)O-CO	690V	25	50	65	65	80
Ics (kA)O-CO-CO	400V	30	50	65	65	80
Ics (kA)O-CO-CO	690V	20	40	50	50	70
Icw(kA)O-CO	400V	20	50	65	65/80(MCR)	85/100(MCR)
Icw(kA)O-CO	690V	20	40	50	50/65(MCR)	65/75(MCR)
Current at N-pole In (A)		50%In, 100%In
Inherent breaking time		23-32ms
Operational performance (operations)	Electric	500
Operational performance (operations)	Mechanical life	Maintenance-free 2500 Maintenance 10000

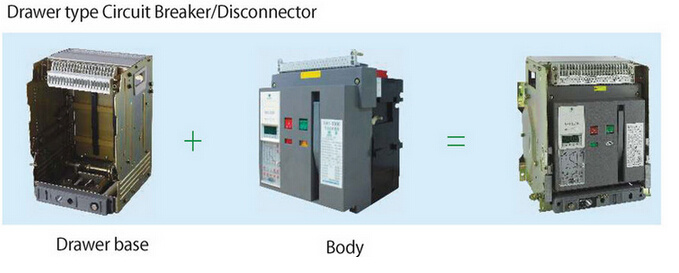

Mounting Mode		Fixed with drawable
Arcing distance(mm)		0

Prod Model:	DW45-1600A
Rated Current:	1600A
Rated Insulation Voltage:	AC 400V/690V
No Of Poles:	3 Pole
Icw(Ka)1s ,Delay 0.4s O-Co:	65/50ka
Ics(Ka)O-Co-Co:	50/65/70/80ka
Arcing Over Distance(mm):	0
Inherent Breaking Time:	23-32ms
Mechanical Life:	10000
Protection Device:	Over Load
Air Circuit Breaker Standard:	IEC60947-2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	ACB
Poles Number:	3
Certification:	CCC

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
