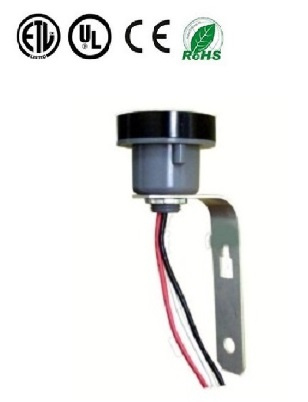

Tork Twist-Lock Photocontrol Base Socket Receptacle for Photocell

Name: Tork Twist-Lock Photocontrol Base Socket Receptacle for Photocell
Brand: all-electronics-online.com
SKU: 723364202
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Specification:

Holding Cover	Polycarbonate
Rated Voltage	480VAC Max.
Loading Capacity	15Amp Max.
Ambient Temperature	-40ºC ~ +70ºC
Voltage	0-480VAC

Product Pictures:

Model No.		JL-200X	JL-200		JL-200Z
Applicable Volt Range		0~480VAC
Rated Frequency		50/60Hz
Suggested Loading		AWG#18: 10Amp; AWG#14: 15Amp
Ambient Temperature		-40ºC ~ +70ºC
Related Humidity		99%
Overall Dimensions (mm)		65Dia.x38.5		65Dia.x65
Accessory	Back/Front Cover	-	°		°
	Zinc Alloy Lock Nut	-	°		°
	Mounting Plate/Base	-	-		° 30x(70+130)
Leads		6" Min.
Weight Approx.		80g	105g		135g

Installation:

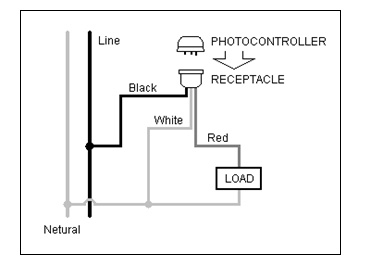

Disconnect power; wire the receptacle according to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.

Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.

Adjust the receptacle position if necessary.

Prod Model:	200
