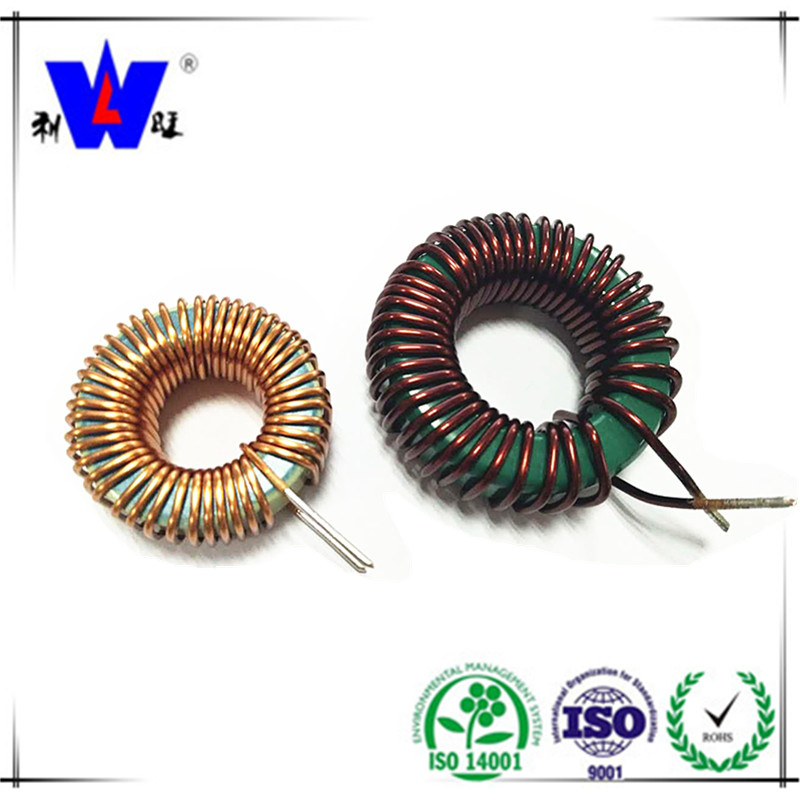

coil and transformer bobbin
Detail:
Inductance:5-6000uH
DCR:10-10000M(OHM)
Rated Current:0.1~10A
Dimension:6×2.5-50×20(mm)
CQC,ISO9001,RoHs, CE,compliant
Characteristics
1)Low cost&High efficiency
2)Low magnetic leakage
3)High saturation current
4)Good control on noise due to the toriodal constructure
5)Various material availiable to meet different frequency requirements
Applications:
1.For switching power supplies and equipment using micro-computer
2.TV set, VTRs/VCRs,audio equipment, OA equipment,etc
3.Noise suppression at DC circuit
4.Line filter of switching power supplies
5.Liminate noise of ultrasonic equipment
Common types
(customers' requirements are aviliable)
coil and transformer bobbin
Item
Model |
Dimension (mm) | Electrical performance
Typical value |
| A | B | C | INDUCTANCE
μH | DCR(Ω)
Max | RATED DC
CURRENT(A) |
| ST J01 | 10 | 5.21 | 5 | 3 | 0.01 | 1 |
| ST J02 | 13 | 8 | 5 | 150 | 0.4 | 1 |
| ST J03 | 13 | 8 | 6.5 | 10 | 0.01 | 8 |
| ST J04 | 16 | 9 | 6 | 86 | 0.03 | 2 |
| ST J05 | 20 | 13 | 10 | 75 | 0.02 | 2.5 |
| ST J06 | 24 | 15 | 8 | 100 | 0.05 | 1.5 |
| ST J07 | 27 | 15 | 11 | 50 | 0.02 | 3 |
| ST J08 | 33 | 20 | 11 | 26 | 0.01 | 5 |
| ST J09 | 40 | 24 | 14.5 | 40 | 0.01 | 5 |
| ST J10 | 45 | 27.2 | 16.5 | 50 | 0.01 | 5 |
| ST J11 | 51 | 24.1 | 22.2 | 150 | 0.03 | 5 |
| ST J12 | 57 | 31.8 | 19.1 | 260 | 0.028 | 10 |
