toroidal ct split core current transformer

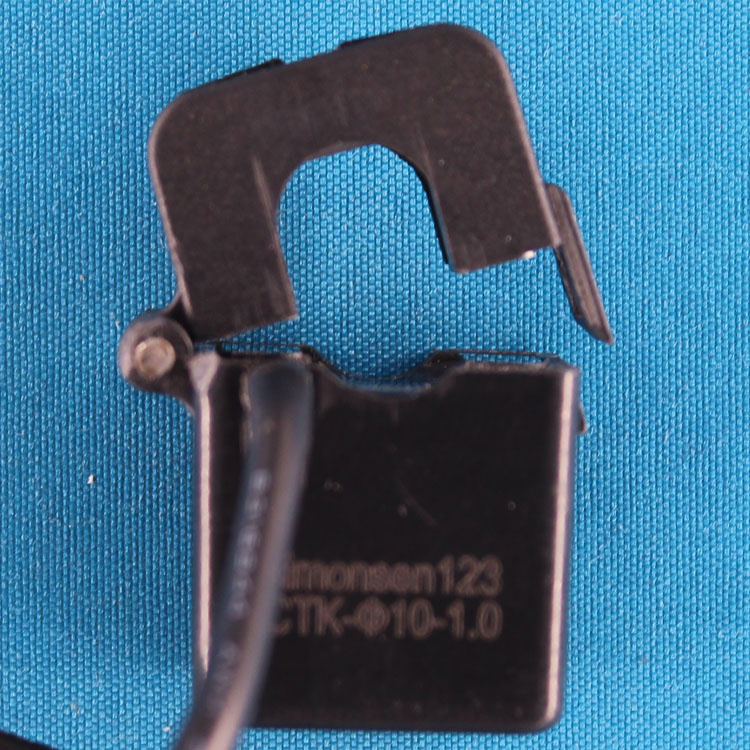

1. Product Type: Split Core Current Transformer
1.1 Model NO:simonsen123 CTK-10
1.2 Installation:shielding line elicited.

2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

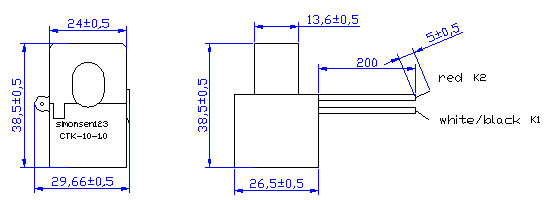

3. Size (mm)

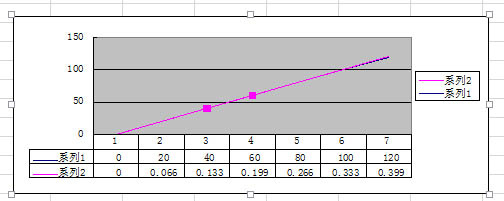

Above is the characteristic diagram of input and output for CTK-Φ10-3.0: set 1 is the primary current, set 2 is the secondary current.

4. Performance Parameter

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out voltage	Accuracy	Permissible Error	Phase Angle Error	Max Current
CTK-Φ10-1.0	0~30A	1000:1	30mA	20Ω	600mV	0.5%		2.6H	60A
CTK-Φ10-2.0	0~60A	2000:1	30mA	20Ω	600mV	0.5%		50H	70A
CTK-Φ10-3.0	0~90A	3000:1	30mA	10Ω	300mV	0.5%		60H	80A

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
   5.2 Insulation Conductor:≥500MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC  Humidity ≤95%;
5.5 Frequency Range: 0KHZ~70KHZ
   5.6 limit Temperature:< 130ºC

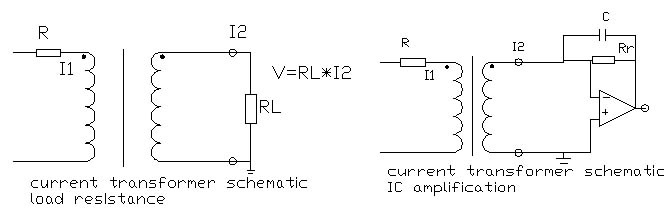

6. Schematic

Prod Model:	CTK-10
Structure:	Magnetic Bead
Type:	Current Transformer
Nature Of Operation:	Measure
Brand:	Simonsen123
