Product Description

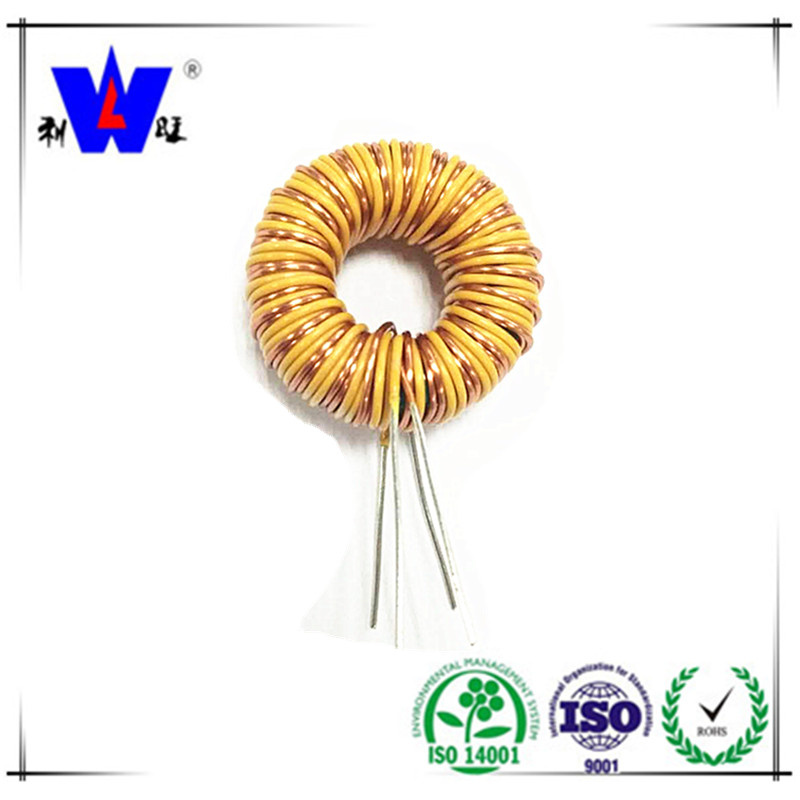

ferrite core toroidal choke coil fixed inductor common mode choke
High frequency and low loss
Common mode filter
Toroidal inductor
For excellent EMI suppressor
High-frequency, low loss toroid
Small profile
Large current
Low resistance
MPP, hi-flux, sendust/RF carbonyl, and iron power core
For excellent EMI suppressor
common mode choke coils
Toroid common-mode filter coils
Toroidal common-mode inductor
For SMPS application
SMT and low profile available
RoHS compatible (Pb free) versions available
Good frequency characteristic
With high impedance
Application: widely applied in various switching power suppliers and high frequency electronic equipment
Magnetic choke
| Mode: | Ferrite toroidal core common mode choke inductor |
| Material: | MnZn,Iron Powder,Nanocrystalline.. |
| Application | Medical Equipment, Electronic Appliances,RFID,LED,ETC....
|
| Inductance: | 1uH-1H |
| Certificated: | ISO9001-2008, SGS-ROHS. |
| MOQ: | No MOQ for the trial order. |
| Samples: | 10-50pcs free samples for freight collect. |
| Type of payment: | T/T, Western Union, L/C, Escrow, Paypal,etc. |
| Payment Item: | T/T in advance below us$5000, 30% deposit, balance
will be paid before shipping. |
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(ºC): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
| art No. | L(uH) ±15% @1KHz | I,DC (A) | DCR (Ω) Max | A Max | B Max | C Ref. | D | E |
| MN-1R0-V/H | 1.0 | 20 | 0.002 | 17.5 | 10.4 | 8.9 | 1.5±0.1 | 5.0±1.0 |
| MN-100-V/H | 10.0 | 6.5 | 0.015 | 17.5 | 10.4 | 8.9 | 0.85±0.1 | 5.0±1.0 |
| MN-220-V/H | 22.0 | 4.3 | 0.035 | 17.5 | 10.4 | 8.9 | 0.68±0.1 | 5.0±1.0 |
| MN-470-V/H | 47.0 | 3 | 0.05 | 19.5 | 10.0 | 10 | 0.6±0.1 | 5.0±1.0 |
| MN-680-V/H | 68.0 | 5 | 0.01 | 25.5 | 13.5 | 10.5 | 0.7±0.1 | 5.0±1.0 |
| MN-101-V/H | 100 | 2.4 | 0.13 | 22 | 11.4 | 8.5 | 0.56±0.1 | 5.0±1.0 |
| MN-221-V/H | 220 | 2.4 | 0.12 | 22 | 11.4 | 8.5 | 0.56±0.1 | 5.0±1.0 |
| MN-102-V/H | 1000 | 1.3 | 0.4 | 22 | 11.4 | 8.5 | 0.56 |
