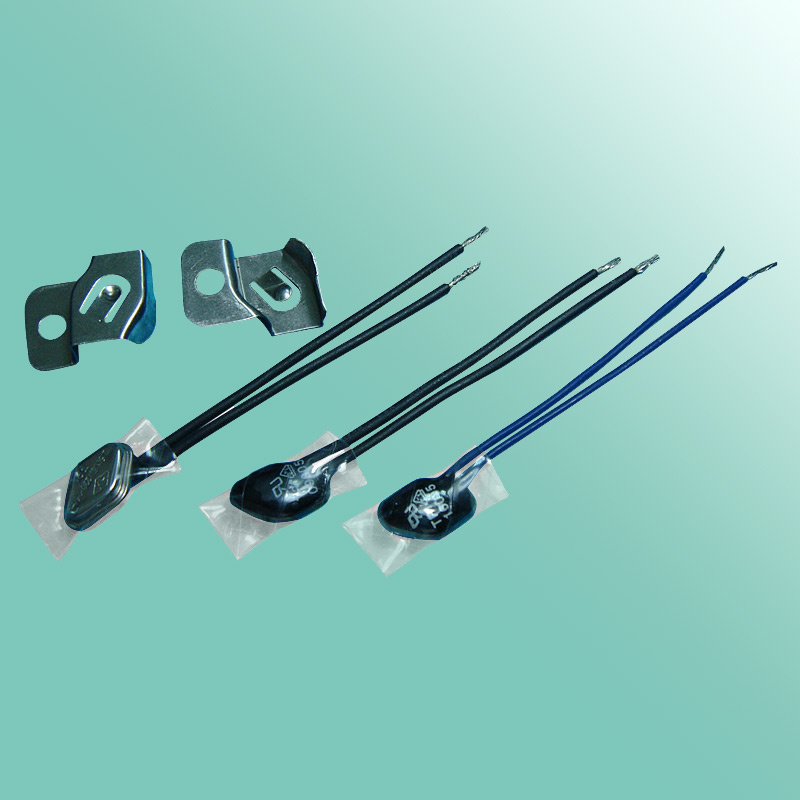

Tp1 Temperature Controller for Transformer Protect

Name: Tp1 Temperature Controller for Transformer Protect
Brand: all-electronics-online.com
SKU: 678983841
Availability: InStock
Rating: 4.6 (63 reviews)

Price:	US $ 0.28/Piece
Trade Terms:	EXW
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Using scope:
Applies to the fractional electric motor, coils, liquid pumps, fluorescent ballast, the washer electrical machinery, the air conditioner electrical machinery, the transformer, the illumination lamps and lanterns, the automobile electrical machinery and similar household electrical appliances for temperature control and overheat protector.

Best seller point:
Diamond shape, small size, easy for installation.
Good pressure resistance and high switching capacity
Rapid response to high-sensitive temperature and current

Key Technical Parameters:
Rated voltage: 50/60HZ, 250V, AC
Nominal current: 2.5 (1.6) A,/10 (6.3) A ,COS =1.0 (0.6)
Rated opening temperature range: +60 ºC ~+160 ºC, take 5 ºC as a grade
Resetting temperature range: lower than the open temperature 30ºC±15K

Type		TP1
Rated Voltage:50/60HZ		220-250V
Rated Current	COSΦ=1.0	2.5A	10.0A
	COSΦ=0.6	1.6A	6.3A
AC Max.load AC COSø=1.0	500V 50/60HZ	3.5A	8.0A
	380V 50/60HZ	4.0A	10.5A
	250V 50/60HZ	6.3A	16A
	110V 50/60HZ	10.0A	36.0A
DC Max.load	60V	1.0A	4.0A
	42V	1.2A	4.8A
	6V 12V 24V	1.5A	6.0A
Contact arrangement	Normally Closed Normally Open
Rated Open temp.range	+60ºC~+160ºC,In steps of 5ºC
Tolerance	±5K ±8K ±10K
Resetting temperature	Lower than rated open temp minus(5ºC~+70ºC)
Resetting temp.tolerance	±15K
Contact resistance	≤50m
Proof tracking index	PT1 175
Class protection agains electric shock	ClassI
Degree of protection	IP00
Reset characteristics for cut-out action	Type 3 action
Limited short-circuit capability	250V~200A,Fuse rated current 15A
Endurance	10000
Temp.limits of the switch head	+180ºC
Insulation class of connecting leads	A,E,B,F,H is available on request.
Cross section of the connecting leads	0.2 0.3 0.5mm2 or on request	0.5 0.75mm2 or on request
Housing insulation	Different heat shrink sleeve of insulation class or PBT plastic housing is available on request
Dielectric Strength	AC 1500V 50/60HZ 1MIN

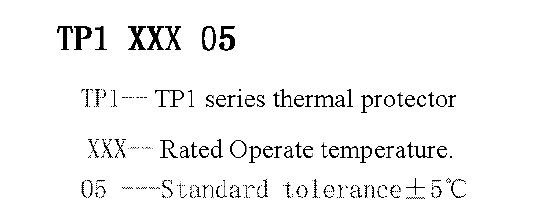

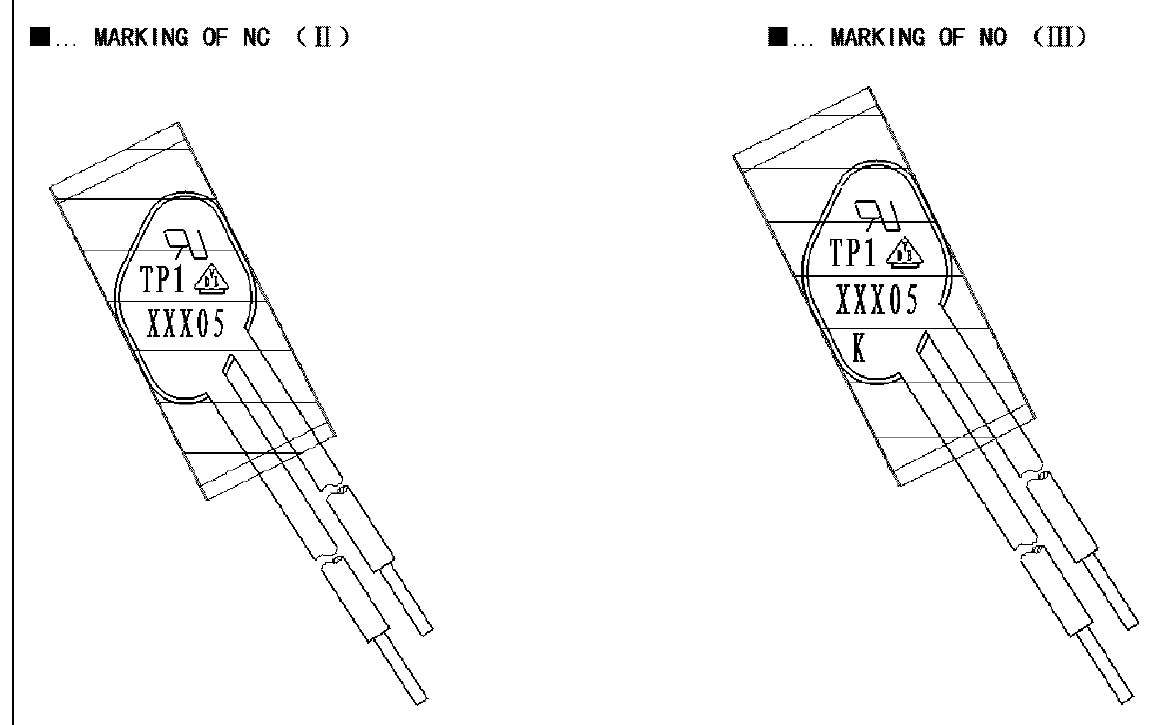

Marking	e.g.Front side:Tp1(appr symbol) Basis side:Hx.TP1 2.5(1.6) A220~250V	e.g.Front side:Tp1(appr symbol) Basis side:Hx.TP1 10(6.3) A220~250V

Prod Model:	TP1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	2.5ampere, 10ampere
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Electronic

Hengxin Precision Electrical Equipment Co., Ltd., is a manufacturer of thermal protectors, air discharge temperature controllers, automatic electrical controls for household and simmilar use.

Located in the city of Foshan, our manufacturing facility covers 5, 000 square meters, where we employ an experienced team of over 200 staff members. Moreover, we utilize advanced production machinery including state-of-the-art bimetal pressed technology and high precision thermal treatment equipment. Accordingly, our annual revenue reaches USD4, 200, 000.

With strong experience and a strict quality control system, our thermal protectors are some of the best in the industry. As such, we can provide a wide range of product specifications and gladly accept custom orders.

Accordingly, we have received several quality system and safety certifications including UL, C-UL, VDE and CQC certifications. As a result, our products have gained a strong reputation for reliability throughout many international markets.
