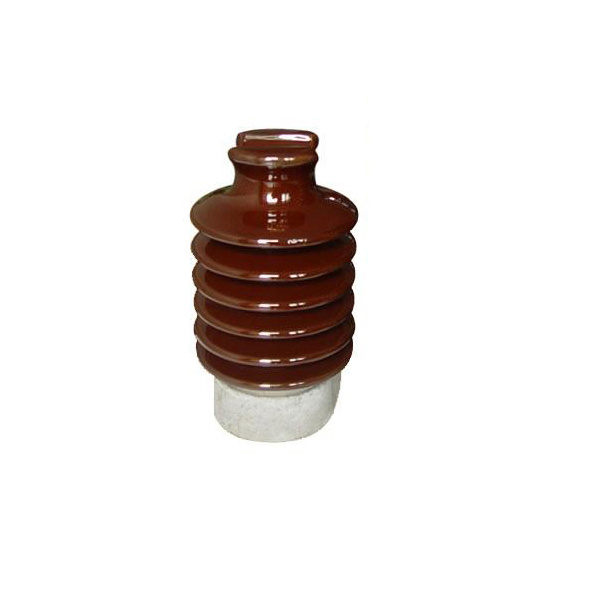

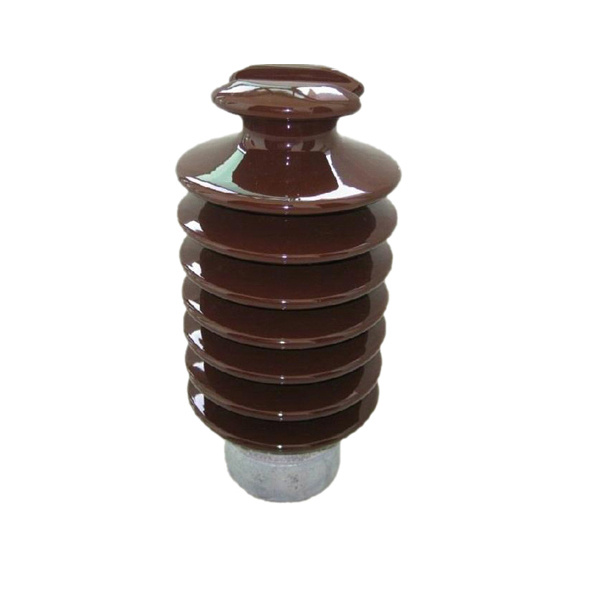

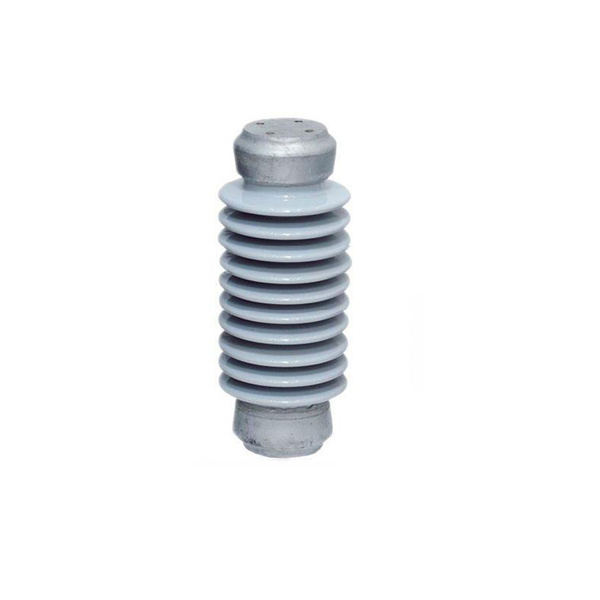

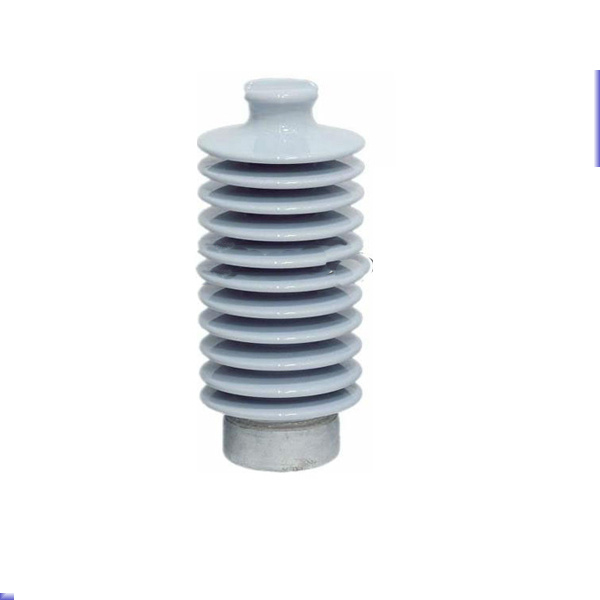

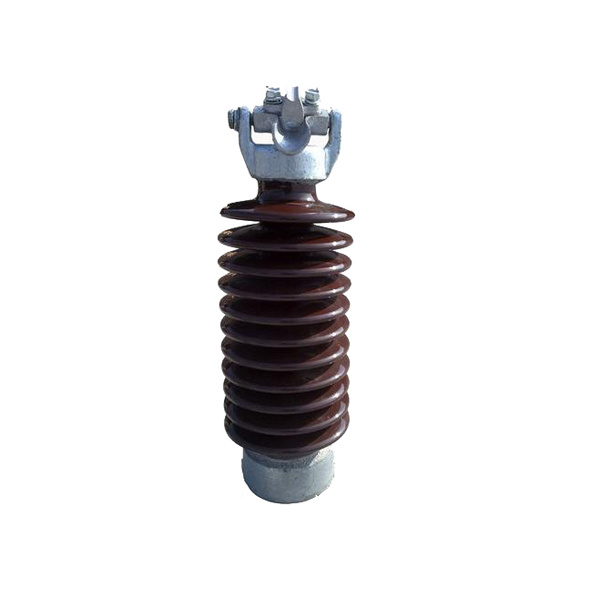

Tr Solid-Core Station Post Ceramic Insulator

Name: Tr Solid-Core Station Post Ceramic Insulator
Brand: all-electronics-online.com
SKU: 837952665
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	tr210
Application:	Low-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	11kn
Brand:	Conic

Product Description

specifications
1. original insulator producer
2. superior properties of low and medium temperature resistance;
3. strong aging resistance;
4. nice appearance & long service time.
5. comman glaze and semi-conductor glaze, color brown and gray both available.
6. free sample, professional porcelain insulator supplier.

Solid-Core Station Post Insulator
Fig.	ANSI Class	Creepage distance mm	Cantilever Strength kV	Tensile Strength kN	Torsion Strength kN	Compression Strength kN	Flashover Voltage kV				Low Frequency withstand voltage		Impulse withstand Voltage kV	Weight	Applicable standard
							Power frequency		Critical Impulse		Dry withstand kV	Wet withstand kV
							Dry	Wet	Positive	Negative	Dry withstand kV	Wet withstand kV
1	TR-205	394	8.9	38	791	44.5	85	55	125	200	50	45	110	7	ANSI C29.7
2	TR-208	610	8.9	44.5	904	44.5	110	75	170	250	70	60	150	11
3	TR-210	940	8.9	53	1130	66.7	145	100	225	290	95	80	200	16
4	TR-214	1092	8.9	62	1356	66.7	170	125	280	340	120	100	250	21
5	TR-216	1829	6.7	71	1695	111	235	180	390	475	175	145	350	30
6	TR-286	2515	7.56	89	4520	4520	267	385	285	780	280	280	550	62
7	TR-288	2946	6.23	89	4520	4520	267	435	335	900	335	335	650	71
8	TR-308	4191	6.45	111	10170	10170	333	575	475	1240	465	465	900	122
9	TR-316	5029	5.56	111	10170	10170	333	660	570	1450	545	545	1050	150

Our factory
we are a combination of trade and manufacturer that professional in insulators . our manufacturer has modern techniques, with advance semiautomatic production lines. main products have: suspension disc insulators, pin insulators, spool insulator, stay & starain insulators, line post insulator, shackle insulators, composite insulators and glasses insulators etc..

CONIC TOOLS focus on making professional quality hand tools, related hardware products and some electric fittings. CONIC TOOLS products are all strictly controlled at every step during designing, producing, packing and quality controlling process. CONIC TOOLS tools believe that the quality tools refer to the usability, efficiency and performance. Different from the OEM market, the advantages of CONIC TOOLS tools are: Affordable prices, Reliable quality, Ready stocks, Rapid delivery, without restrictive MOQ etc.

Product ranges - We provide full range of hand tools, products including the holding tools, mechanic tools, fastening tools, striking tools, cutting tools, measuring tools, painting tools, PPE items, Insulated tools, porcelain insulator, electirc clamp etc.

Quality control - Our well equipped testing center has the torque life tester, impact tester, hardness tester, drawing tester, material tester, high voltage tester etc., which make sure the quality control process and meet the special QC requirement from the customers.

CONIC TOOLS supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Expecting to cooperate with you! ! !
