Trans Darlington PNP Transistor of Electronic Component

Name: Trans Darlington PNP Transistor of Electronic Component
Brand: all-electronics-online.com
SKU: 804799175
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 0.13/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
Darlington BJT

DESCRIPTION

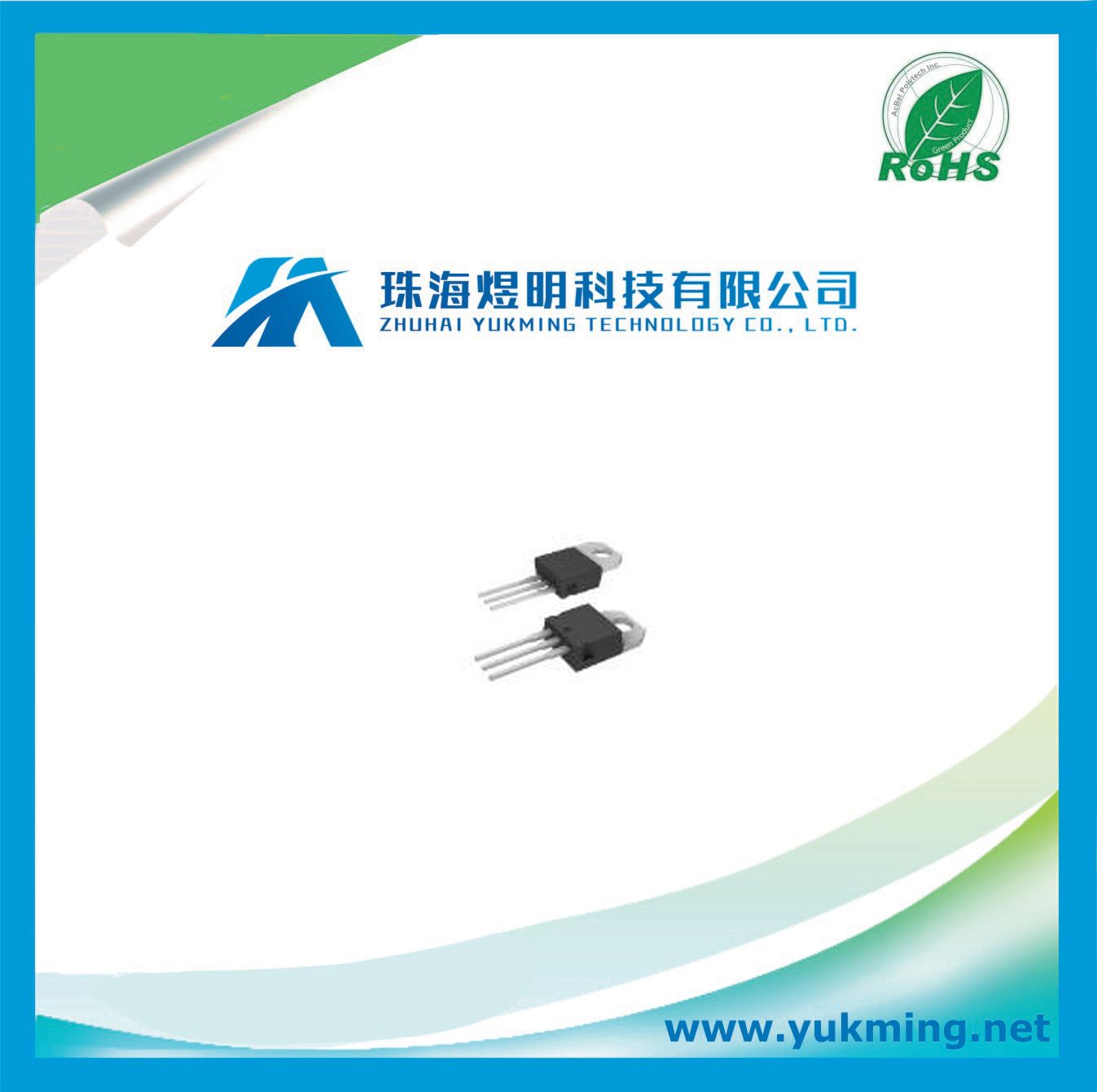

Trans Darlington PNP 100V 5A 3-Pin(3+Tab) TO-220 Tube

Specifications
EU RoHS Compliant
Type PNP
Number of Elements per Chip 1
Maximum Collector Emitter Voltage (V) 100
Maximum Collector Base Voltage (V) 100
Maximum Emitter Base Voltage (V) 5
Maximum Continuous DC Collector Current (A) 5
Maximum Power Dissipation (mW) 2000
Maximum Collector Emitter Saturation Voltage (V) 2@12mA@3A|4@20mA@5A
Minimum DC Current Gain [email protected]@3V|1000@3A@3V
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tube
Temperature Grade Military
Mounting Through Hole
Package Height (mm) 9.15(Max)
Package Length (mm) 10.4(Max)
Package Width (mm) 4.6(Max)
PCB changed 3
Tab Tab
Standard Package Name TO-220
Supplier Package TO-220
Pin Count 3
Lead Shape Through Hole

Prod Model:	TIP127
Type:	PNP
Number Of Elements Per Chip:	1
Maximum Collector Emitter Voltage (V):	100
Maximum Collector Base Voltage (V):	100
Maximum Emitter Base Voltage (V):	5
Maximum Continuous DC Collector Current:	5
Maximum Power Dissipation (MW):	2000
