Transformer Turn Ratio Tester (JYT-F) /Distribution/Hv LV Transformer Teser/Automatic Connection Group Recognition/485 Interface/USB Connection/

Prod Model:	JYT-F
Application:	Instrument
Phase:	Three
Brand:	Kingrun

Product Description

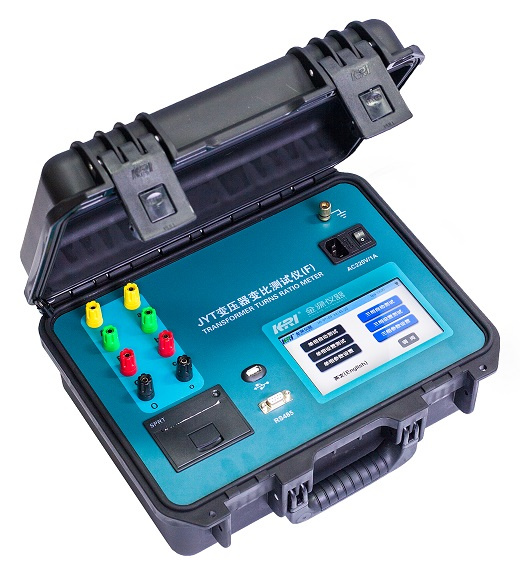

JYT-F Turns ratio tester

1.Wide test range,: up to 0.9-3000.
2.With extended port which can realize high voltage CVT variable ratio testing.(JYT-E)
3.Fast test speed, finishing three-phase test in 11 seconds.
4.Can test CT,PT,CVT and Z connection transformers.
5.Variable ratio and group blind-test function.
6.A variety of short-circuit testing modes inside for easy fault predication.
7.Time,date and data saved automaticly as power failure.
8.With 480 groups data stored, Large screen display, printing with thermal printer inside, with RS485 communication interface and U flash disk memory interface

9. Protection function for transformer short-circuit, turn-to-turn short-circuit , high-low voltage reverse and make fault on 380V voltage.



JYT-F Power transformer turn ratio tester (turn ratio meter)is a professional testing equipment which is suitable for transformer service industry, substation maintenance, power transformer /distribution transformer maintenance company, 3 phase transformer testing, and other transformer testing field, Kingrun series TTR tester such as JYT-F and JYT-A tester has reliable capability and accurate testing result selected by SIEMENS and ABB transformer manufacture and transformer service companies.



JYT-F TURNS RATIO TESTER TECHNOLOGY SPECIFICATION:



Figures on display	5 digits
Output voltage	AC160V (C)		AC10V(D)
Test range	0.9-3000		0.9-200
Accuracy	<500	0.1%±2 Figures		≤200	±0.3%
	500-3000	0.2%±2 Figures
	>3000	0.5%±2Figures
Minimum resolution	0.0001
Power supply in operation	AC220V±10%,50/60Hz±1Hz
Temperature in operation	-20~40ºC
Relative humidity	≤80%RH,  No forming dew
Volume	Length 400mm Width 280mm Height 170mm
Net weight	4.5 kg
