Transistor Mmbt5551 of NPN General Purpose Amplifier
| Price: |
US $ 0.024/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
MMBT5551 |
| Type: |
NPN |
| Number Of Elements Per Chip: |
1 |
| Maximum Collector Base Voltage (V): |
180 |
| Maximum Emitter Base Voltage (V): |
6 |
| Maximum Collector Emitter Voltage (V): |
160 |
| Maximum DC Collector Current (a): |
0.6 |
| Maximum Power Dissipation (MW): |
350 |
| Maximum Transition Frequency (MHz): |
300 |
| Operation Temperature Range: |
-55 to 150 Degree C |
Product Description
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |

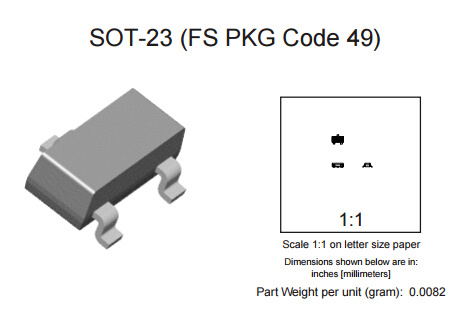

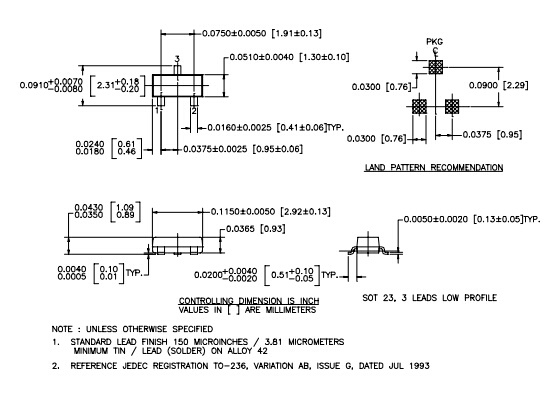

PRODUCT CATEGORYGP BJT DESCRIPTIONTrans GP BJT NPN 160V 0.6A 3-Pin SOT-23 T/R Implement this versatile NPN MMBT5551 GP BJT from Fairchild Semiconductor into an electronic circuit to be used as a current or voltage-controlled switch or amplifier. This bipolar junction transistor's maximum emitter base voltage is 6 V. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a maximum collector emitter voltage of 160 V and a maximum emitter base voltage of 6 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. Features· Epitaxial Planar Die Construction· Complementary PNP Type Available (MMBT5401)· Ideal for Medium Power Amplification and Switching· Lead Free/RoHS Compliant (Note 2) Mechanical Data· Case: SOT-23· Case Material: Molded Plastic. UL FlammabilityClassification Rating 94V-0· Moisture Sensitivity: Level 1 per J-STD-020C· Terminal Connections: See Diagram· Terminals: Solderable per MIL-STD-202, Method 208· Lead Free Plating (Matte Tin Finish annealed over Alloy 42leadframe).· Marking (See Page 2): K4N· Ordering & Date Code Information: See Page 2· Weight: 0.008 grams (approximate) SpecificationsEU RoHS Compliant Type NPNNumber of Elements per Chip 1Maximum Collector Base Voltage (V) 180Maximum Emitter Base Voltage (V) 6Maximum Collector Emitter Voltage (V) 160Maximum DC Collector Current (A) 0.6Maximum Power Dissipation (mW) 350Minimum DC Current Gain 80@1mA@5V|80@10mA@5V|30@50mA@5VMaximum Transition Frequency (MHz) 300Product Category Bipolar Small SignalMinimum Operating Temperature (°C) -55Maximum Operating Temperature (°C) 150Packaging Tape and ReelMounting Surface MountPackage Height (mm) 0.93Package Length (mm) 2.92Package Width (mm) 1.3PCB changed 3Standard Package Name SOT-23Supplier Package SOT-23Pin Count 3Lead Shape Gull-wing
