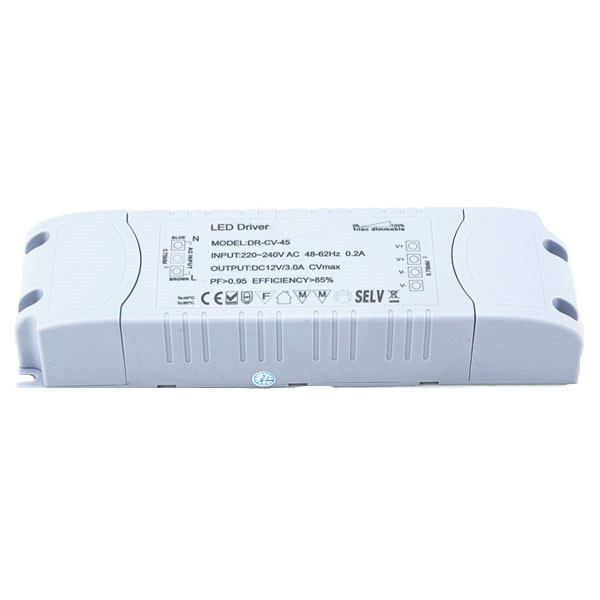

Triac Dimmable 45W 40W LED Driver for Lights

Name: Triac Dimmable 45W 40W LED Driver for Lights
Brand: all-electronics-online.com
SKU: 793929785
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	US $ 10-13.5/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Triac dimmable 45W 40W LED Driver for lights

Triac Dimmable/No Dimmable

Product Features

Selectable constant current and constant voltage output.(Custom on request)

Full-ioslated,delivering up to 45W of power.

Short circuit,over current and over voltage protection. Up to 80% efficient.

Fireproof environmental protection PC plastic cover 2 years quality warranty

Technical Specifications

Model No.		DR-CV-45
Input Voltage Range		100-240V/AC

AC Frequency		48-62Hz

Input current		0.59Amax

Output Mode		Constant Current
Output Current	700mA	900mA	1200mA	1500mA

On Load Voltage	33-65V	25-50V	19-38V	15-30V
No Load Voltage	78V	60V	46V	36V
Output Power		45W Max.
Power Factor		>0.95

Efficiency		>80%

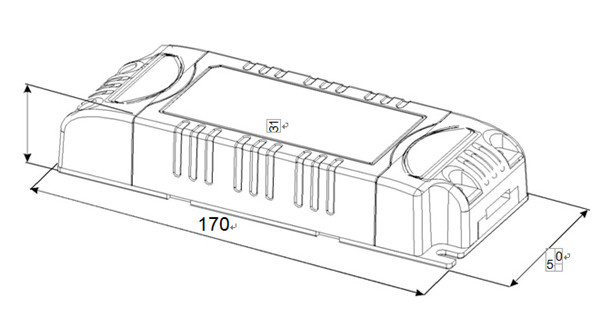

Dimensions		1705031(mm)

Weight		225g

Environmental Specifications

Operating Temperature	-30~45ºC
Storage Temperature	-40~+70ºC

Thermal Dissipation	Nature
Relative Humidity	5~95%

Isolation Voltage	In/Out 3000VAC
Vibration	5-55Hz/2g,30 Mimutes

Life Time	50000Hours,at TC max

Conformity & Standards

EMI	EN55022
EMI	EN55015 Class B
	EN55015 Class B

Safety	EN60598

Electromageric	EN61547,ENV5024
Immunity	EN61000-4-2/3/4/6/8/11

Harmonic	EN61000-3-2
Current Emissons	EN61000-3-3

Prod Model:	DR-CV-45
Dimming Range:	5%-100%
IP Degree:	IP20
Efficiency:	85%
Protection:	Short Circuit/Over Load/Over Voltage
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Mode:	Customed
Brand:	No Brand
