Truck Scales Bridge Load Cell (GF-5)

Name: Truck Scales Bridge Load Cell (GF-5)
Brand: all-electronics-online.com
SKU: 644537035
Availability: InStock
Rating: 5 (46 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	4/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Description
Truck Scales Bridge Load Cell(GF-5)

Our compression or tension load cell, Truck Scales Bridge Load Cell(GF-5) is made of high quality alloy steel, stainless steel or aluminum.
The accuracy of our Truck Scales Bridge Load Cell(GF-5) can reach 0.03-0.05%.And reasonable structure design ensures our load cell to withstand 150% overload.
Owing to its good sealing and temperature, our Truck Scales Bridge Load Cell(GF-5) can be used in harsh environment such as low temperature, high temperature, moist.

1, Bridge type double shear beam

2, unique floating bearing structure

3, self-resetting, good side force resistance and shock resistance

4, moistureproof sealed, ideal for hostile environment

5, simple to install, easy to use, good interchangeability

6, suitable for electronic truck scale, railroad scale, hopper scale and various special scales.

Capacit	50~100klb
Rated output	3.00± 0.015mv/v
Nonlinearity	± 0.03%F. S,
Hysteresis	± 0.03%F. S,
Repeatability	± 0.02%F. S,
Creep(30)	± 0.03%F. S,
Zero balance	± 1%F. S
TCO	± 0.03%F. S /10º C
Input resistence	700± 5Ω
Output resistence	700± 3Ω
Insulation resistence	≥ 5000M
Operating tem range	-20~+60º C
Safe overload	120%F. S
Recommend excitation	10v DC/AC
Material	Alloy steel

Company information
Area:38000 square meters
Construction area:24000square meters
Employees:200 Engineer:30 Main products:Various weighing load cells

Packaging and shipping

Each Truck Scales Bridge Load Cell(GF-5) is put in a inner carton box at first, then 1-5 inner boxes are put in a big carton box.
Our package of Truck Scales Bridge Load Cell(GF-5) has the characteristics of water proof and moisture-proof, which is suitable for long-distance transportation.
We use regular carton box to pack the Truck Scales Bridge Load Cell(GF-5) the weight of which is less than 16kg. For the ones which is too heavy, we use wooden box to pack.

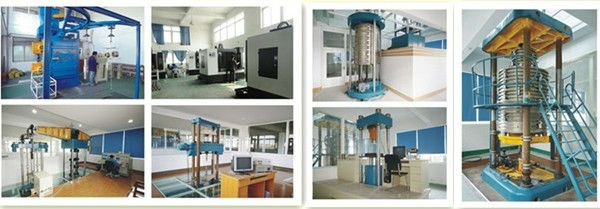

Workshop
Professional management team, production department, production line, highly accurate measuring and test equipment, experienced technical experts who engaged in this industry for more than 20 years. We also have the superiorities to supply the high-quality products and excellent service.
1, Our load cells are made of good-quality material. It has better rigidity and stability.
2, We have our own technical team to support and assist the clients, to solve all the technical problems.
3, Capacity: About 500000 PCS/YEAR

Our services

Prompt & professional reply: Your inquiry related to our products or prices will be replied within 24 hours by well-trained and experienced staffs in English;
Long service life of 5years and1year warranty;

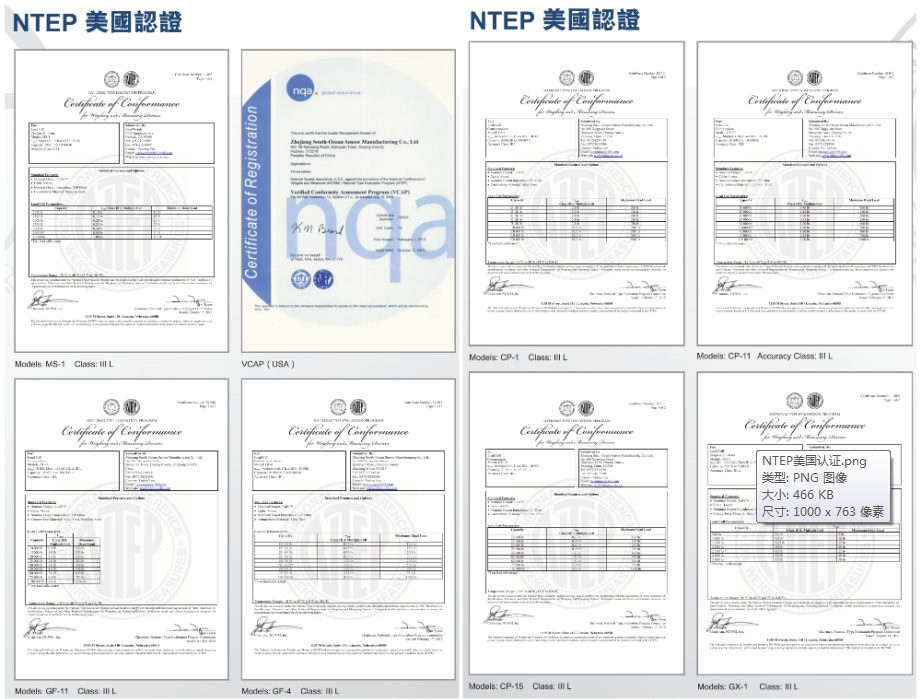

Certificates

FAQ
1. What is the MOQ?
The MOQ is 4 pc.

2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don't have it in stock, the lead time will be 30-45 days.

3. What is the payment terms?
T/T, bank transfer is acceptable.
After you place the order and make the payment on Made-in-China.com, Made-in-China company will notify us to make the shipment, your money won't be released until you get the goods.
If we don't make the shipment, you still can take back your money.

Prod Model:	GF-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	50klb-100klb
Rated Output:	3+/-0.015
Nonlinearity:	+/-0.03%Fs
Output:	Analog Sensor
Usage:	Pressure Sensitive Sensor

Professional Manufacturer of Sensors------:
Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.

Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Was established in 1985(formerly Hangzhou South-Ocean Sensor Co., Ltd).Main products of South-Ocean involve 18 different series, on more than 1000 specific products, including load cell, force sensor, pressure sensor, instrument and so on.There are kinds of machining center and CNC processing equipment more than 200 sets, measuring and test equipment more than 100 sets.Also we have been committed to innovation work on new product and new process over the years and have a number of patent products.

For more than twenty years, as the most professional sensor manufacturing company in China, Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Has been always focusing on the research and manufacturing of force sensors and load cells.The company adheres to the tenet of excellence, provides high quality products and services to the market.

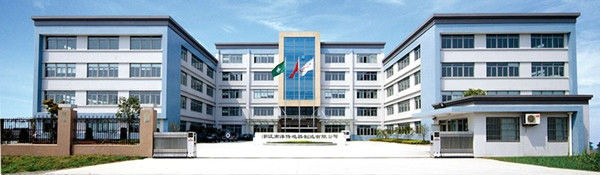

South-Ocean covers an area of 35 acres, and building area of more than 24000 square meters with modern plants and equipments.There are kinds of machining center and CNC processing equipment more than 200 sets, measuring and test equipment more than 100 sets.These perfect production and test equipments provide a solid guarantee for large-scale production and product quality.Among them, the 20 sets of machining center, 1 set of 1000 tons hydraulic standard force test machine, 1 set of 100 tons lever machine, 1 set of 20 ton dead weight machine, 1 set of high and low temperature oven with 8 cubic meters space.All of these equipments provide necessary conditions for research and production on types of customer-designed force sensors, load cells.
Main products of South-Ocean involve 18 different series, on more than 1000 specific products, including load cell, force sensor, pressure sensor, torque sensor, instrument and so on.The products are capable of processing in the sky and sea, adapt to all kinds of complicated bad temperature, corrosion, vibration and electromagnetic environment.The measurement range of force sensor and load cell is from 10 g to 6000 tons with precision from C1 to C5.The measuring scope of pressure sensor is ranged from absolute pressure to 250 MPa with accuracy of 0.5% F.S to 0.05% F.S.Torque sensor ranges from 0.1 N.M to 200000 N.M, with accuracy from 0.5% F.S to 0.05% F.S.The products are widely used in scale, aerospace, petroleum, construction machinery, tensile test machine, hoisting machinery, industrial control fields, and sold to more than 40 foreign countries and regions

With abundant technical strength, Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Has been committed to innovation work on new product and new process over the years.Our company has a number of patent product, more than 30 utility model patent/appearance patent and proprietary technologies.South-Ocean's product has a step ahead than others because of years of innovation.

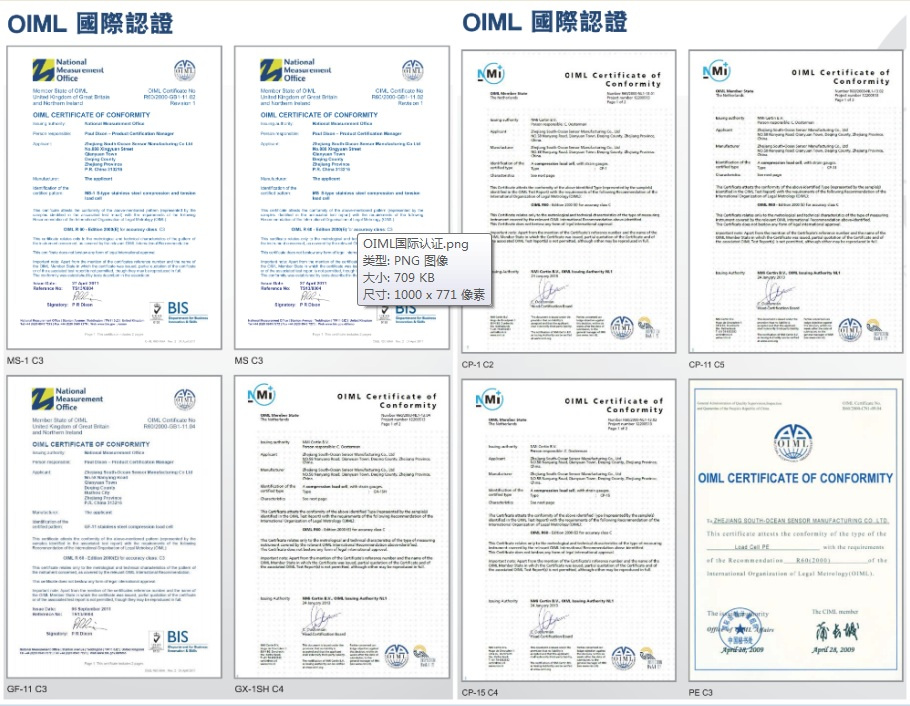

As early as 1999, South-Ocean obtained the ISO quality system certification.Under the well-established quality system, we arranged the production strictly in accordance with international principles as OIML and NTEP.A wide range of products got certificates on the OIML, NTEP, IP, CE, and RoHS etc.

With years of intensive cultivation, South-Ocean Sensor has become the synonym of high-quality goods.We will unswervingly adhere to provide customers with competitive products and service.Let us grow up together!
