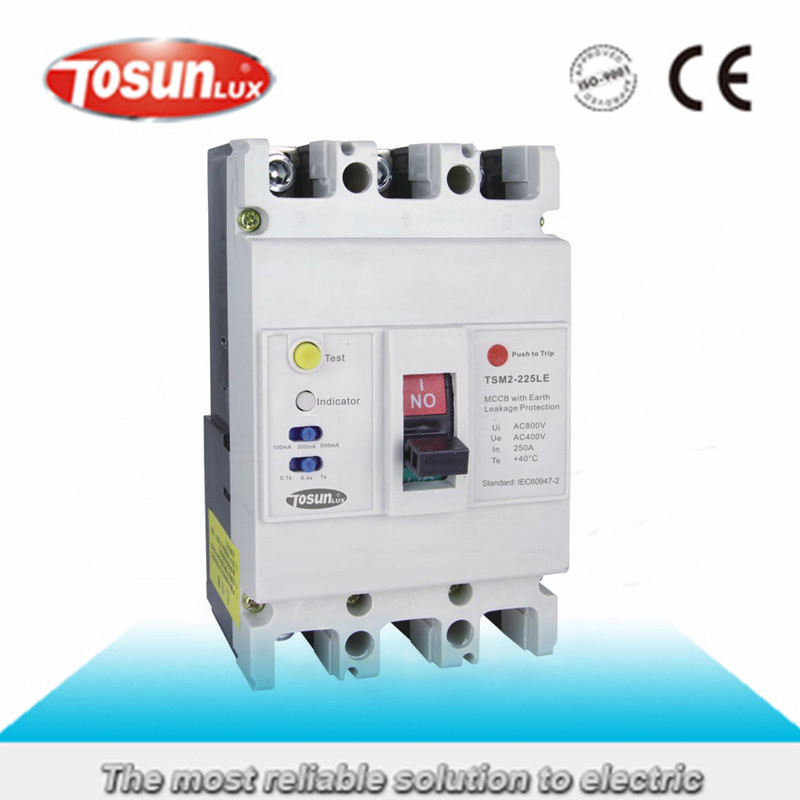

TSM2-E Moulded Case Circuit Breaker with Earth Leakage Protection MCCBApplication

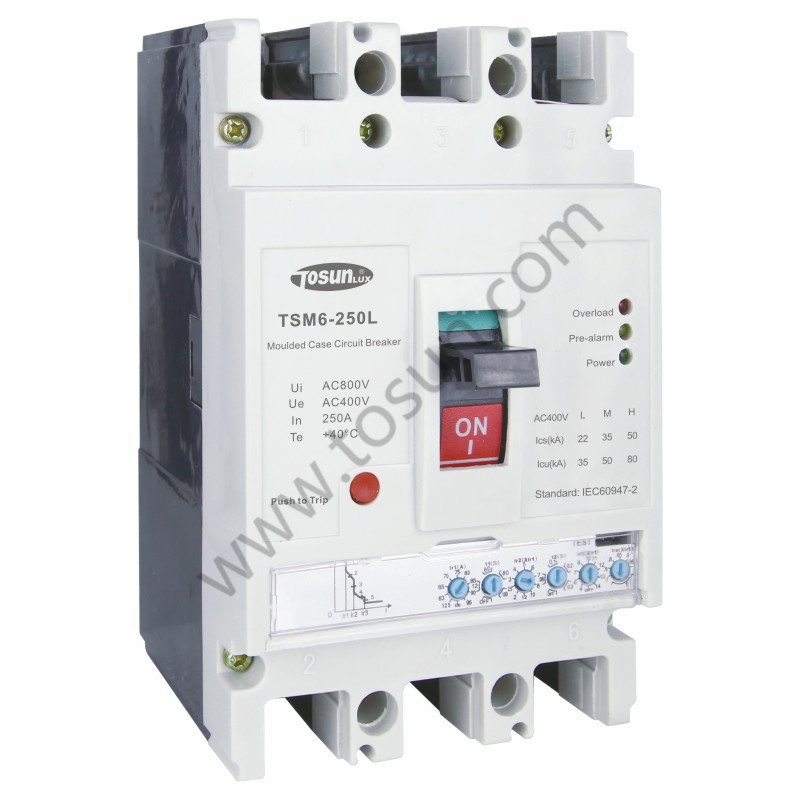

TSM6 electronic type moulded case circuit breaker is suitable for circuit AC 50/60Hz, rated working voltage up to AC400V, rated working current up to 1250A.
It can provide protection functios against overload and short-circuit with delayed trip or instantaneous trip.
The trip unit can be adjusted by users according to the load current.
The product conforms to IEC60947-2 standard.
Specification | Model | Rated current (A) | Number of Poles | Rated Insulating Voltage | Rated Working Voltage | Arcing Distance(mm) | Ultimate Short Circuit Breaker Capacity(KA)
| Service Short Circuit Breaking Capacity (KA) |
| AC690V | AC400V | AC690V | AC400V |
| TSM6-(100)125L | 32 | 3,4 | 800V | 400V | 50 | - | 35 | - | 22 |
| TSM6-(100)125M | 63 | 20 | 50 | 10 | 35 |
| TSM6-(100)125H | 100 (125) | - | 85 | - | 50 |
| TSM6-(225)250L | 225(250) | - | 35 | - | 22 |
| TSM6-(225)250M | 20 | 50 | 10 | 35 |
| TSM6-(225)250H | - | 85 | - | 50 |
| TSM6-400L | 400 | - | 65 | - | 42 |
| TSM6-400M | 100 | 20 | 85 | 10 | 55 |
| TSM6-400H | - | 100 | - | 65 |
| TSM6-630L | 630 | - | 65 | - | 42 |
| TSM6-630M | 20 | 85 | 15 | 55 |
| TSM6-630H | - | 100 | - | 65 |
| TSM6-800L | 800 | - | 65 | - | 42 |
| TSM6-800M | 20 | 85 | 15 | 55 |
| TSM6-800H | - | 100 | - | 65 |
| TSM6-1250 | 800,1000,1250 | 80 | 50 |

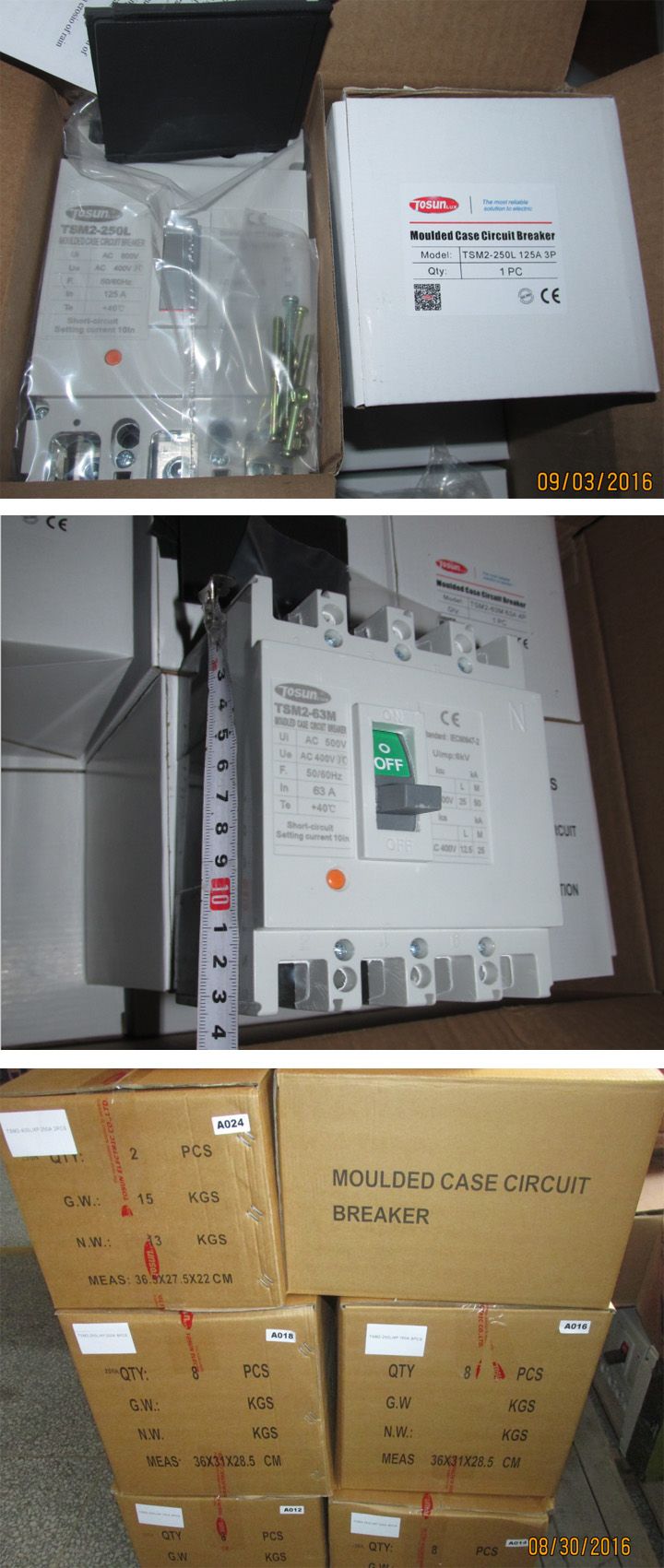

Packing Style

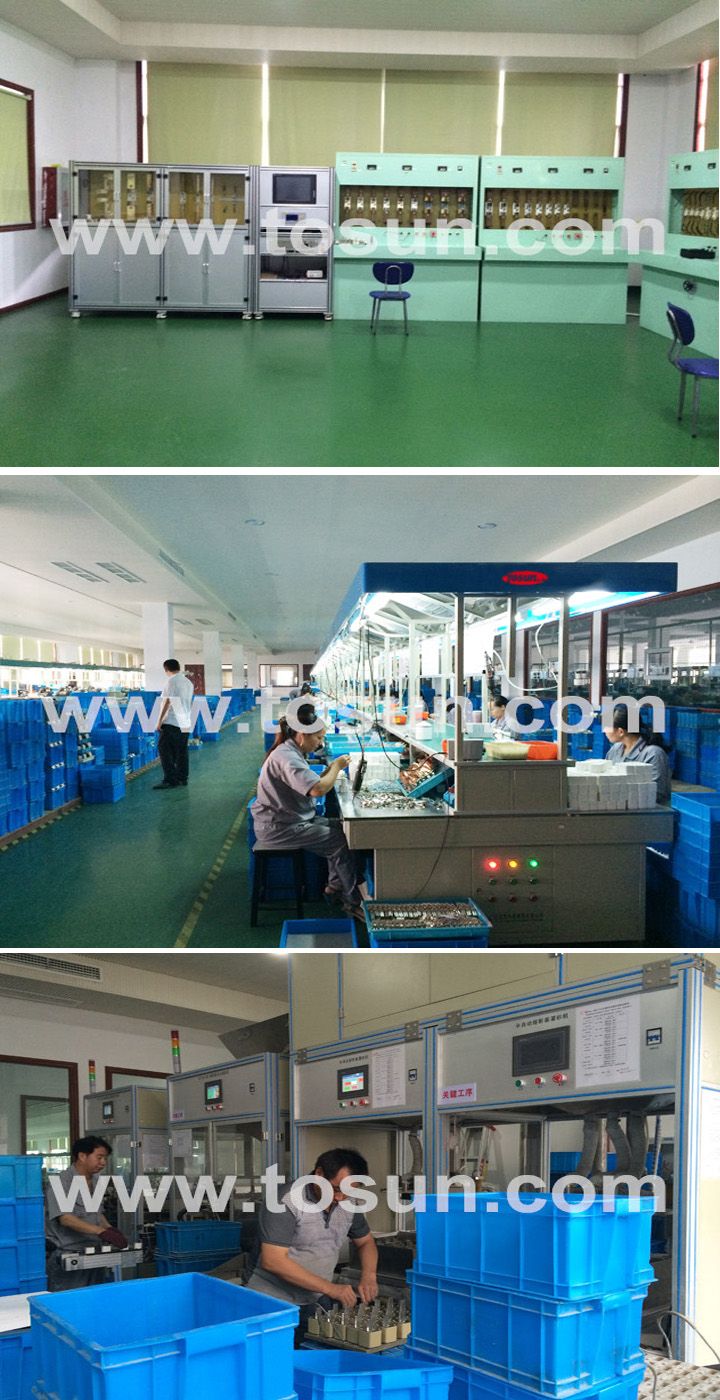

Our Producing Line

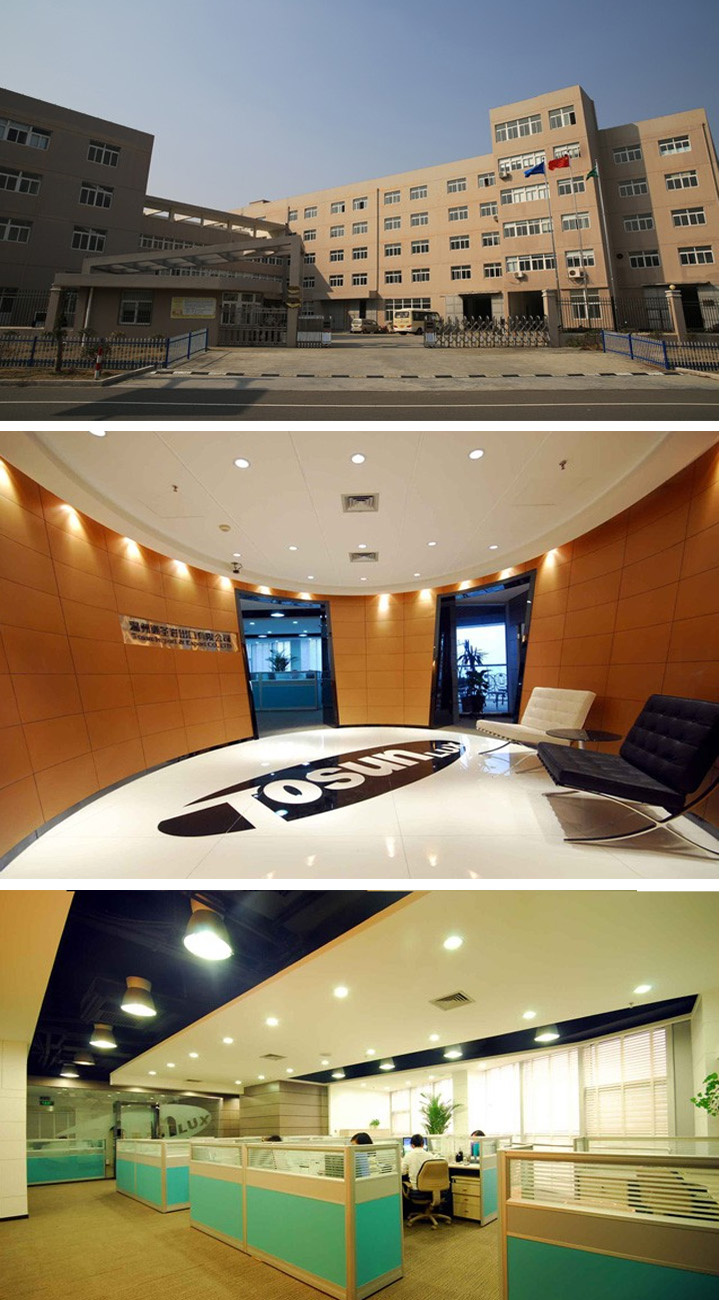

Our office
