Product Description

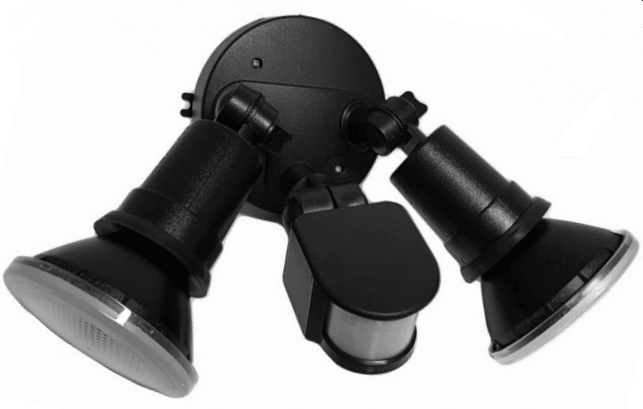

Welcome to use ES-B06 Infrared Sensor Lamp!
This product is an energy-saving lamp, which can turn on when one comes and turn off when leaves. It can identify day and night automatically. It adopts infrared energy discharging detector, IC and SMD technology, its performance is stable and reliable. When one enters the detection field and trigger it, the infrared sensor will work and make the lamp on. When leaves, the lamp will die out automatically.
SPECIFICATION
Power Source: 220-240V/AC Detection Range:180°
Power Frequency: 50 Hz Working Temperature: -20~+40ºC
Ambient Light: 3-2000LUX (adjustable) Working Humidity: <93℅RH
Time-delay: min: 10sec±3sec Installation Height: 1.8m~2.5m
max:7min±2min Power Consumption: <0.9W(work)
Rated Load: Max. 2x150W PAR38 Lamps
Detection Distance:5~12m (<24ºC)(adjustable) Detection Motion Speed: 0.6~1.5m/s
FUNCTION
It can identify day and night automatically, the ambient light of starting operation can be adjusted freely, When turn the LUX knob to SUN symbol, it could be worked in any light, when turn to MOON symbol, it only could be worked in the night when the light is less than 3 LUX. SENS adjustable: It can be adjusted according to using location; low sensitivity with 5m for detection distance; high sensitivity with 12m, it fits for large room.Time-delay is added continually, if one moves in detection field when the lamp is on, the light time will compute once more on the basis of the last induction's rest and delay the light time automatically.Time-Delay adjustable: the length of time delay could be set according to the customers' requirement, the minimum time of this item is 10sec ± 3sec, the maximum is 7min ± 2min.
SOME PROBLEM AND SOLVED WAY
The load do not work:
a: please check if the connection-wiring of power and load is correct;
b: please check if the load is good ;
c: please check if the working light set correspond to ambient light.
2.The sensitivity is poor:
a: Please check if there has hinder in front of the detection window to effect to receive the signal;
b: Please check if the ambient temperature is too high;
c: Please check if the induction signal source is in the detection fields;
d: Please check if the installation height corresponds to the height showed in the instruction;
e: Please check if the moving orientation is correct.
3. The sensor can not shut off the load automatically:
a: Please check if there is continual signal in the detection field;
b: Please check if the time delay is the longest;
c: Please check if the power correspond to the instruction;
d: Please check if the temperature near the sensor change obviously, such as air condition or central heating etc.
