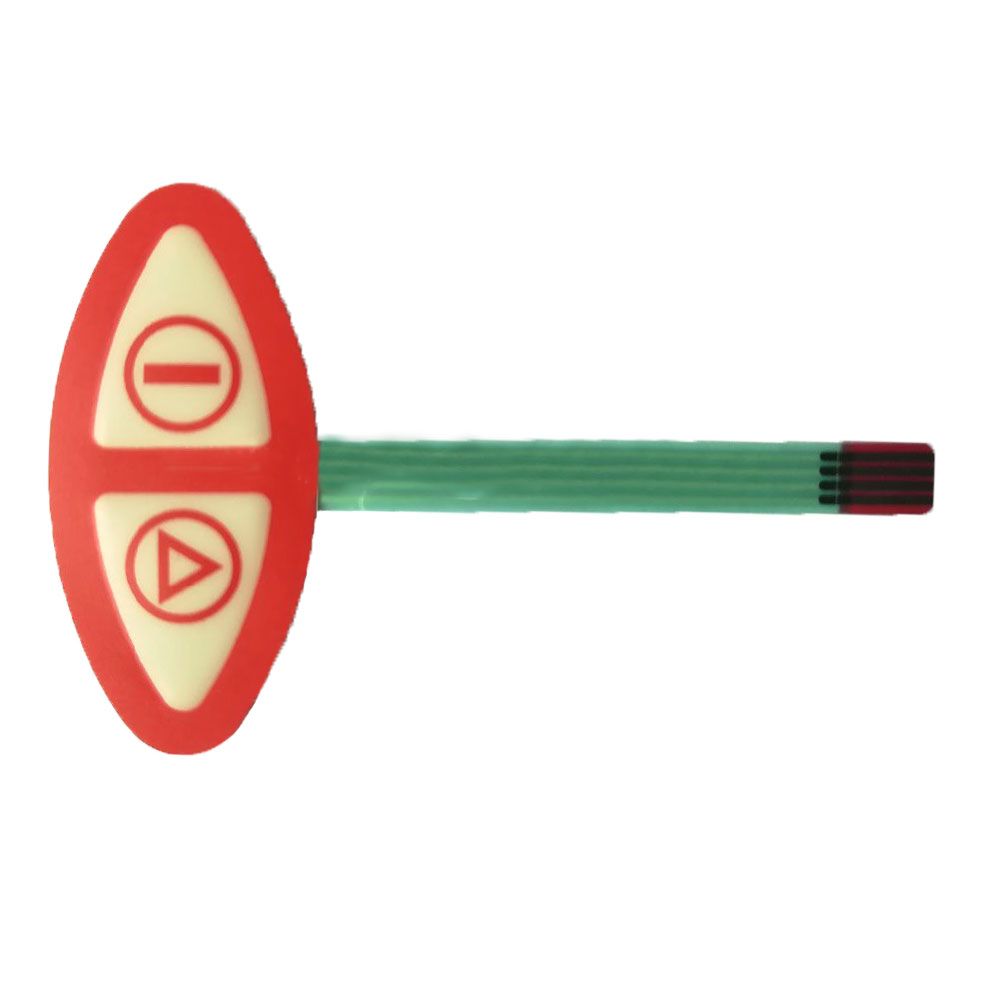

Two Pet Tail Membrane Switch Keyboard

Two Pet Tail Membrane Switch Keyboard
Price: US $ 1/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Specification:

Place of OriginGuangdong, China (Mainland)Brand NameSINGWAY
Model NumberCustomApplicationindustrial control
Keypad Button MaterialMetalStructureoverlay/reaining layer/circuit/rear adhesive
SizeCustomized SizeOverlayAutotype PET
Adhesive3M467ButtonsFlat or Emboss
CertificationISO9001/ISO14001PrintingScreen Printing
ColorPantoneBrandOEM

Technical Parameters
1.Electrical

Maximun Circuit Rating:35V(DC),100mA,1W
Contavt Resistance:10Ω~ 500Ω
Insulation Resistance:100MΩ 100V
Dielectric:250VRms(50~60Hz 1min)
Contact Bounce:< 5ms

2.Mechanical
Actuation Force:Flat:57~284g
Tactile: 170~397g
Switch Strok:Flat: 0.1~0.5mm

Tactile: 0.6~1.5mm

3.Environment
Operation Temperature:-40~+80
Storage Temperature:-40~+80
Humidity:40,90%~95%,240hours
Vibration:20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B)

Prod Model: XWM
Type: Flexible
Material: PET
Application: Camera
Brand: OEM
Certification: ISO14001
