Two Relays Wireless Intellect Receiving Controllers Yet402PC-V2.0

Product Description

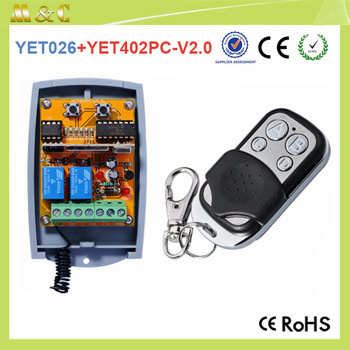

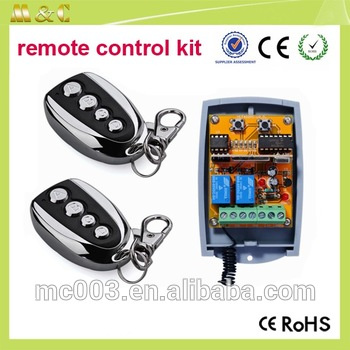

Two Relays Wireless Intellect Receiving Controllers yet402pc-v2.0

Use range:

Our remote control widely used in garage door ,rolling door ,electronic gate,led light,window  industral control ,home appliance,car alarm system, home/store anit-theft alarm,other industrial control and so on.

1. Brief Introduction:

     Our factory design and produce the two channel wireless intellect receiving control what can provide switch signal to the two relays, so it can meet many requirements such as: control motor's corotation and reversal, the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security line

    This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however, it should learning again by the owner if want to obtain the right of use.

2. The way of output :

1. Point start signal- 1 connect while 2, 3 disconnect

2. Signal interlock-2 connect while 1 disconnect

3. Signal self locking-1.2 disconnect

4. one way self-locking, another way inching-1.2 connect

(check the Circuit diagram for details)

3 .Learning method and steps:

1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer.

2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.

4. Delete memory message :

Press the learning button of the receiving module about 7 second until the LED light is extinguished, which indict success to delete the memory message.

5. Main Technique Data:

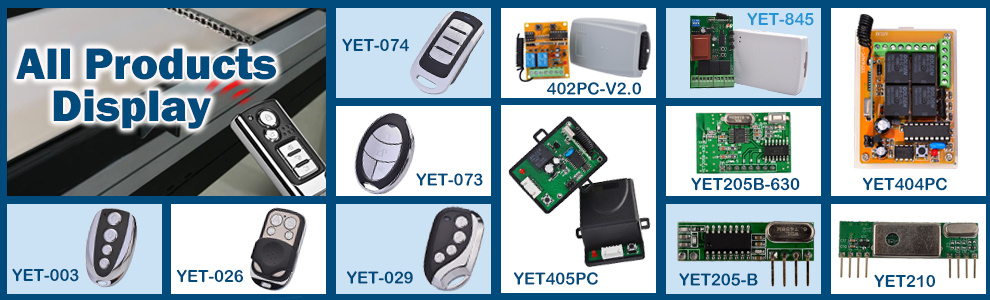

Related Products

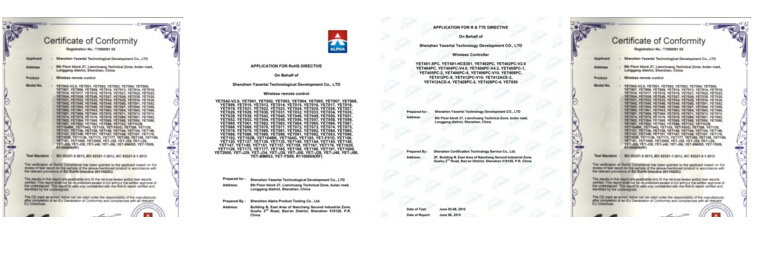

Certifications CE & Rohs

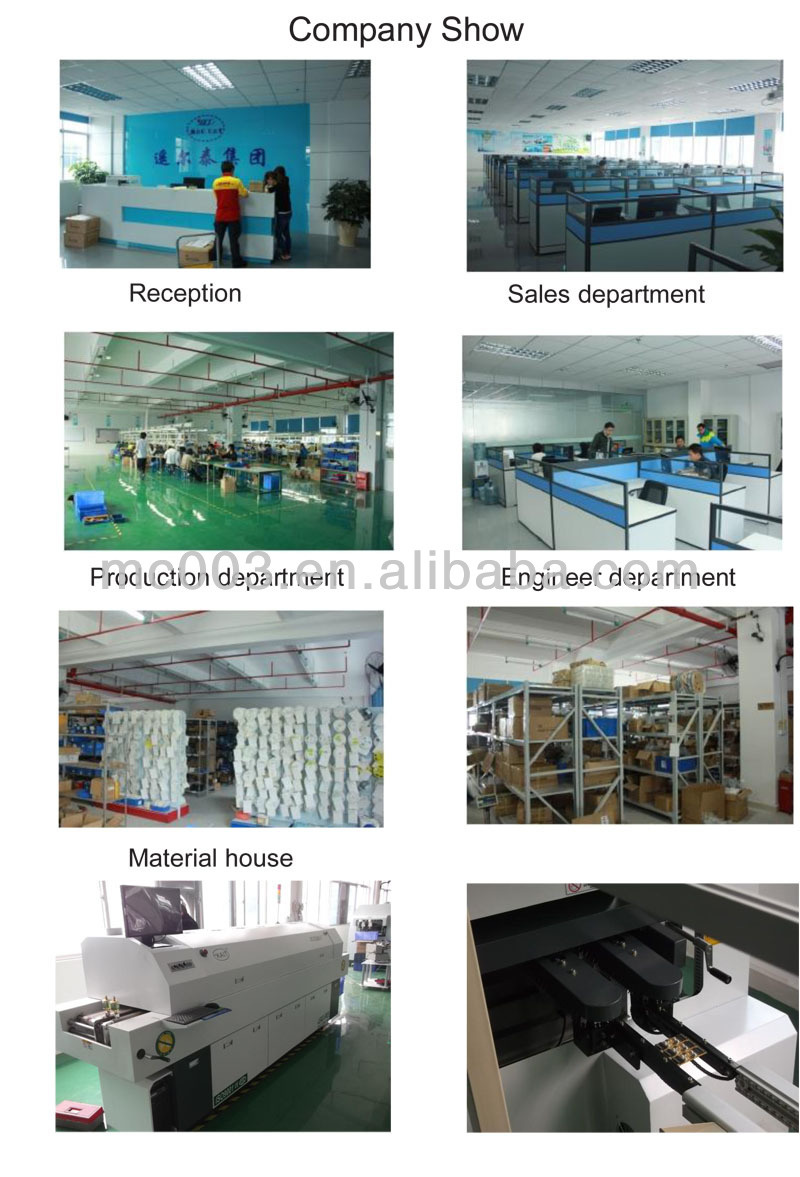

Our Company


Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.

Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.

We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project

Our Service
1. Your inquiry related to our products or prices will be replied in 12 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM,any your customized products we can help you to design and put into production
4. Protection of your sales area, ideas of design and all your private information
5. Deliver by air mail or ship for your orders.

Extra service:
1. Logo printed
2. Sample for testing could be arranged
3. Sample could ship out by DHL,FEDEX or TNT or EMS in 3 days after confirmation.


FAQ
Q1:How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.

Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.

Q3: How to program it?
A: The programming is different from code to codes, we can provide you a manual or video
