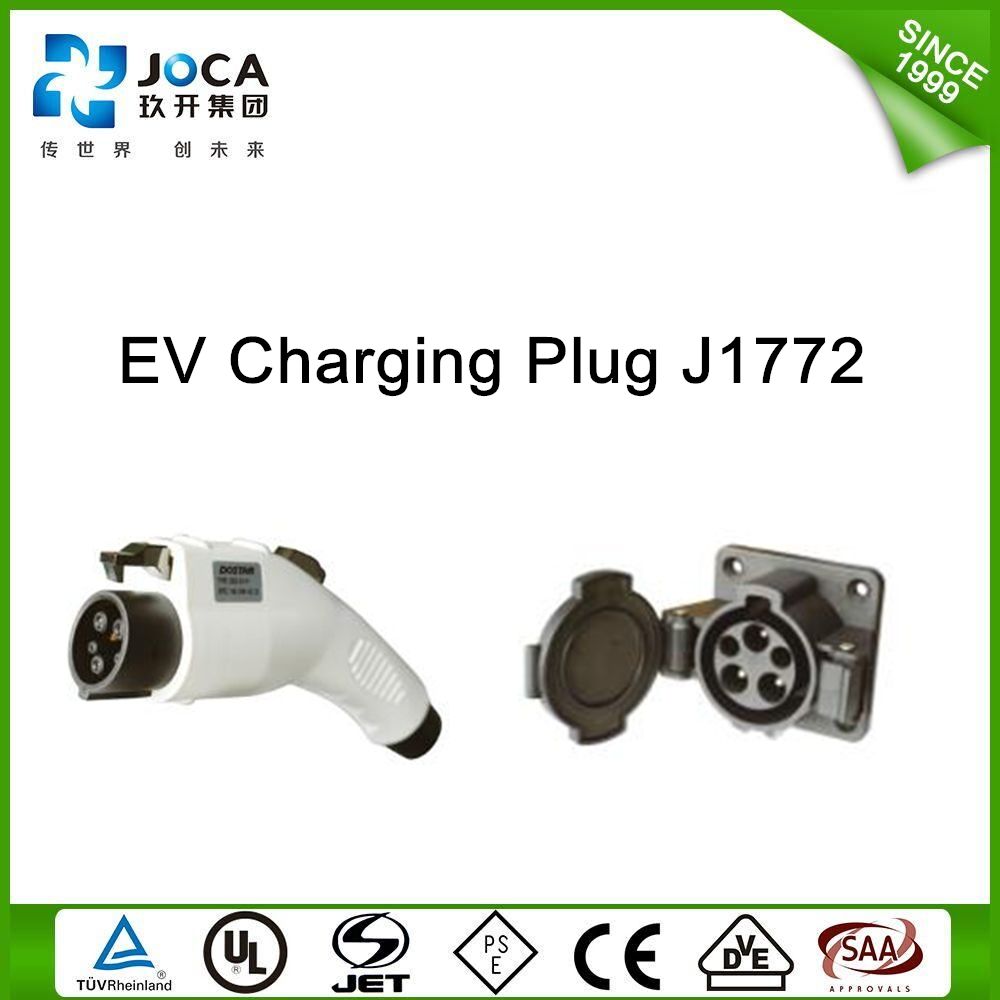

Type 1 Portable EV charger 16A 32A SAE J1772 EVSE with Female Plug and CEE Plug
Meet SAE J1772 2009 (Type 1) North American standard, UL Rated
Parameters ( Dostar IEC J1772 EV Plug For Electric Vehicle Charging )
Model: BS-EVP001-L(16A)
Reted current: 16A/32A
Working voltage: 120V / 240V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
CE, TUV approved
Charging Cable Spec
TUV or UL 3*2.5mm2+2*0.5mm2
Cord lenght: Free End, 3m(9.8ft), 5m(16.4ft)
Cable Colour: Orange or Black
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Functional Defination of dostar chademo iec 62196-2 ev plug buy online :
| Contact name | Functional defination |
| L1 | Live wire |
| L2/N | Netural wire |
| Equipment Ground | PE |
| Control Pilot | Control Pilot |
| Proximity Detection | Proximity Detection |
Our products have been successfully applied in most of countries all over the world. We provide the most professional products and the best quality service to each customers.
We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.
Company Information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
